Optional equipment
Precision Seed Drills
MAXIMA 2
157
Determine the drive gearwheel/driven gearwheel
matching set according to the spacing between the seed
drill rows and the required volume per hectare.
Example:
Seed row spacing: 80 cm (2’7’’).
Required volume per hectare: 12.5 l (3.30 US gal) / ha.

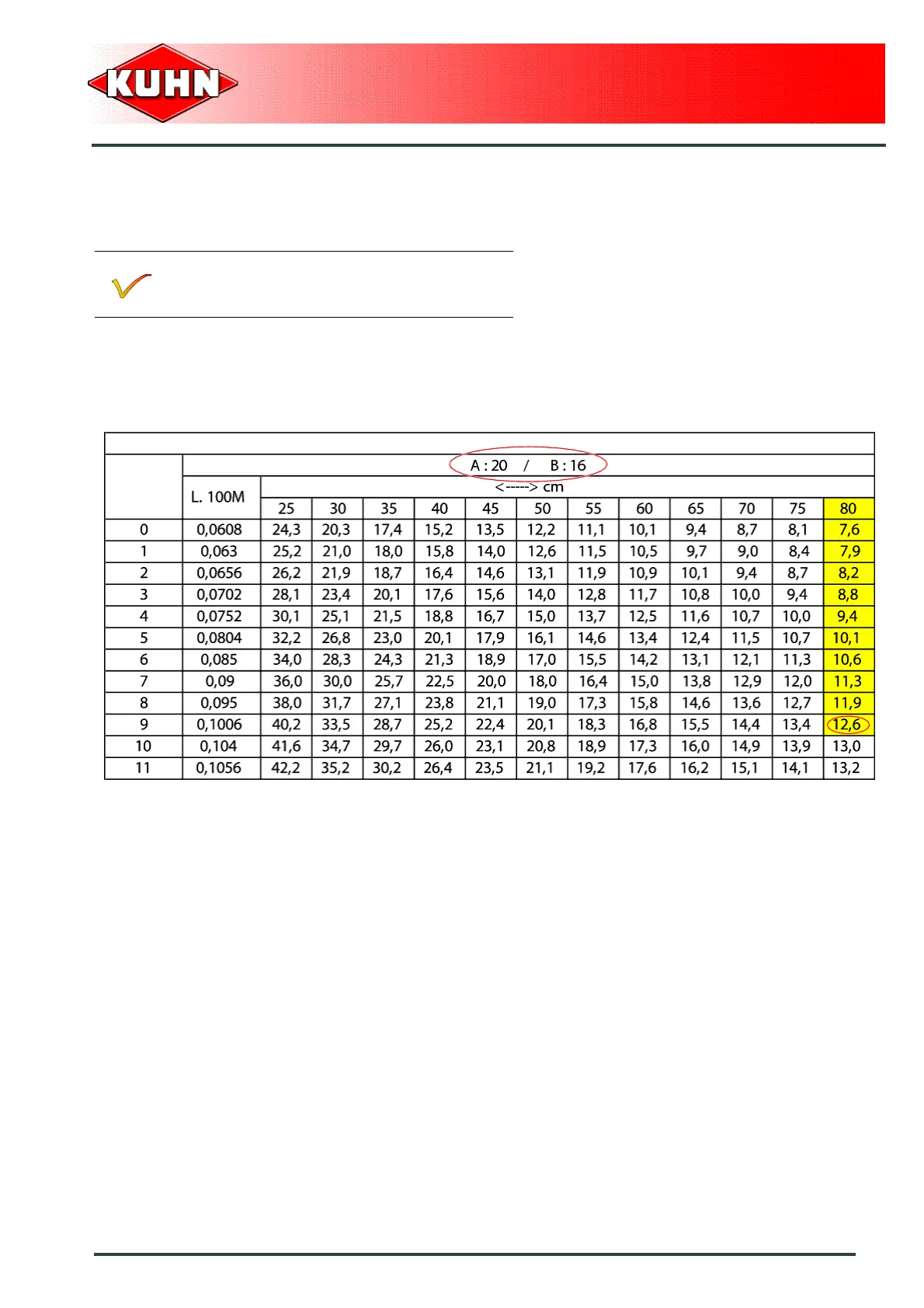

The volume per hectare closest to the required volume
per hectare for a spacing between rows of 80 cm (2’7’’)
is located in the chart for a 20 teeth drive gearwheel and
16 teeth driven gearwheel matching set.
Refer to the decal fitted on the machine.
