Precision Seed Drills
72
MAXIMA 2

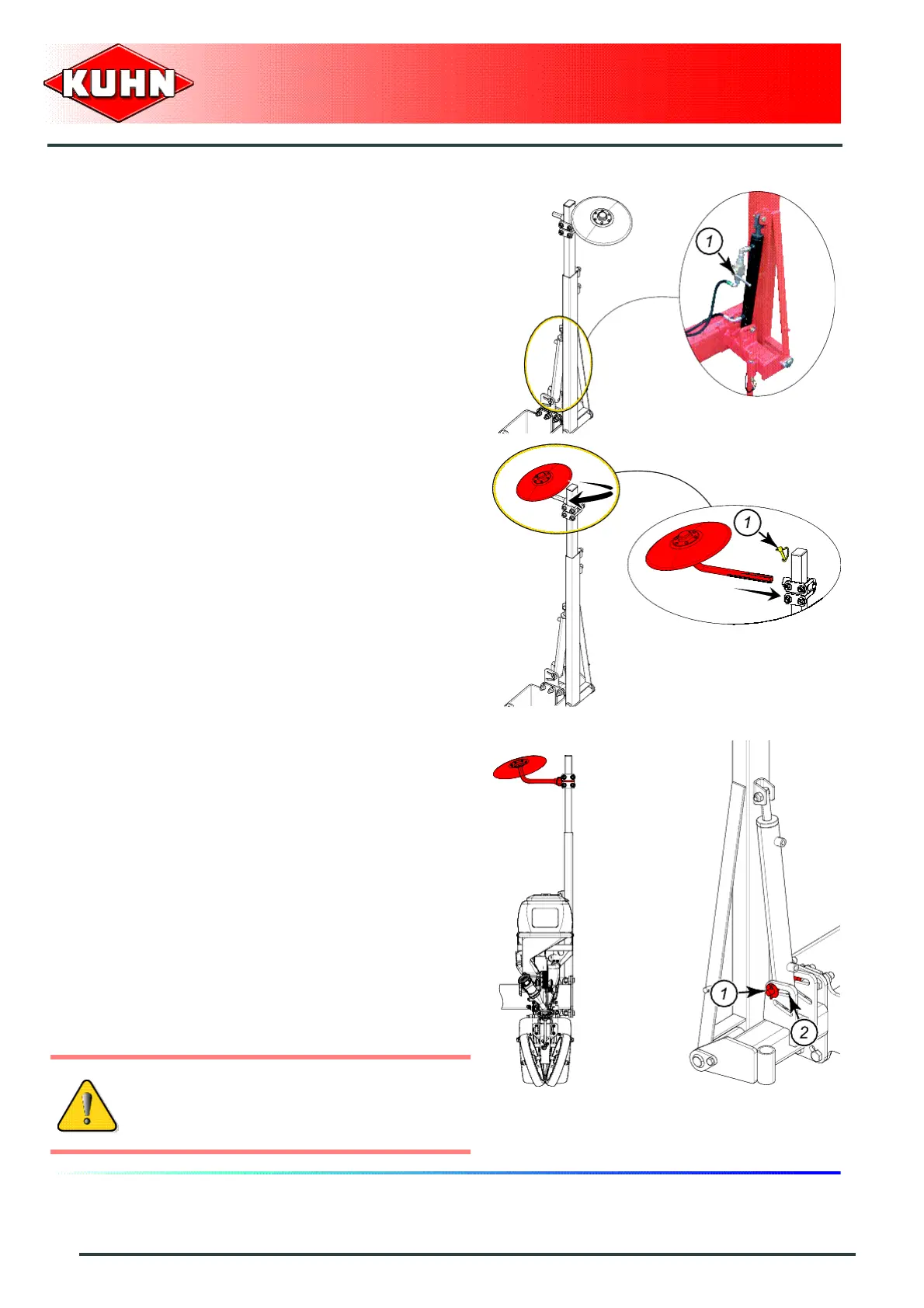

Instructions for transport
If the machine is equipped with a fertilizer with
2x280 l (2x74 US gal) hoppers:
- Activate cylinders to fold side markers.
- Lock side markers using valves (1) (1 on each
marker).
- Remove tube clip (1).
- Position side marker disc towards the machine inside.
- Insert and lock tube clip (1).
Repeat procedure for the other marker.
- Position pin (1) in upper hole (2).
The machine is in transport position.
Never engage the tractor PTO drive when the
machine is in transport position.
