6. Remove YC5, YC15 and YC16 connectors
of the engine PWB.
7. Remove YC5 connector of the main PWB.

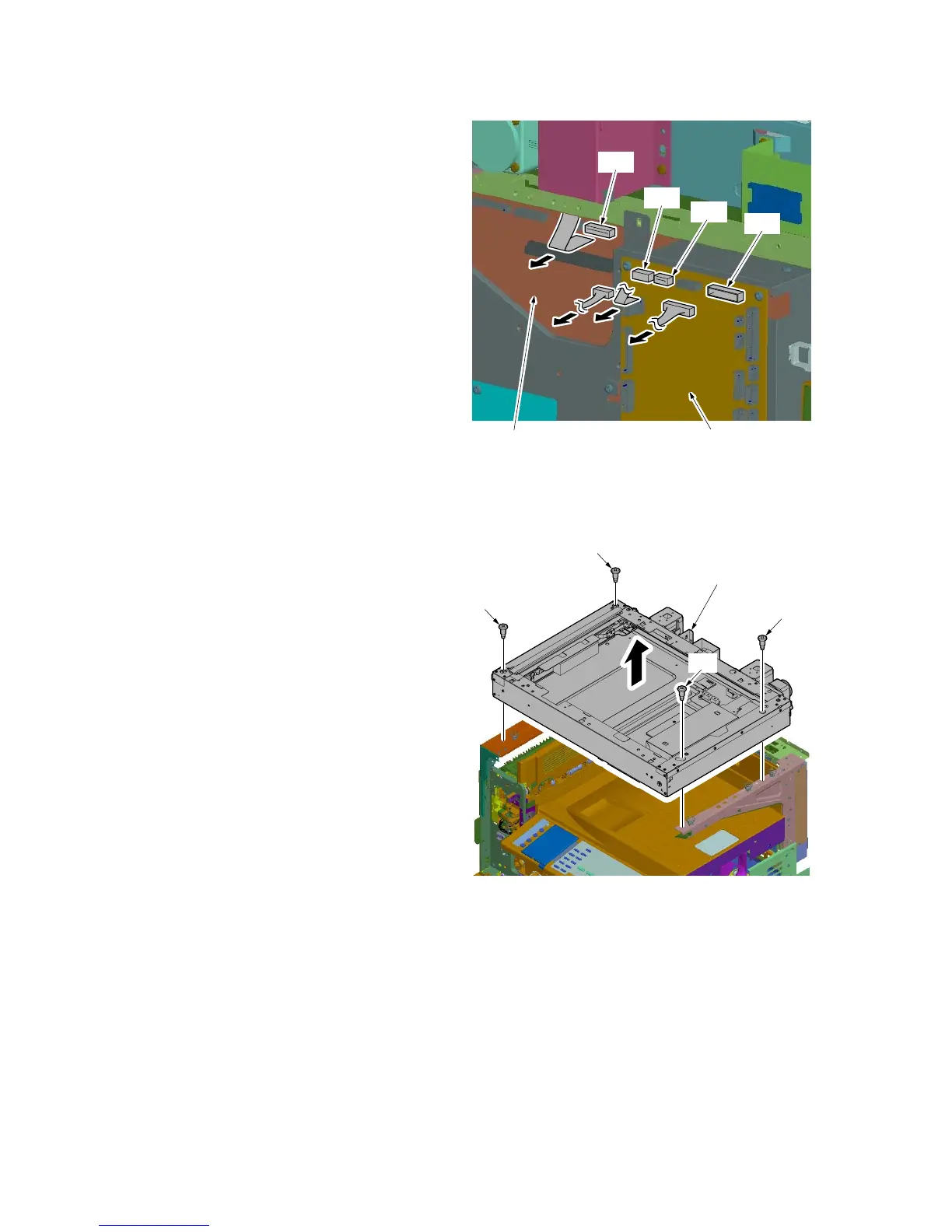

Figure 1-5-62
8. Remove four pins and remove the scanner
unit.
Figure 1-5-63
YC5
YC15
YC16
YC5
Engine PWB
Main PWB
Pin
Pin
Pin
Scanner unit
Pin
