10
PL#3031-009c
GL16

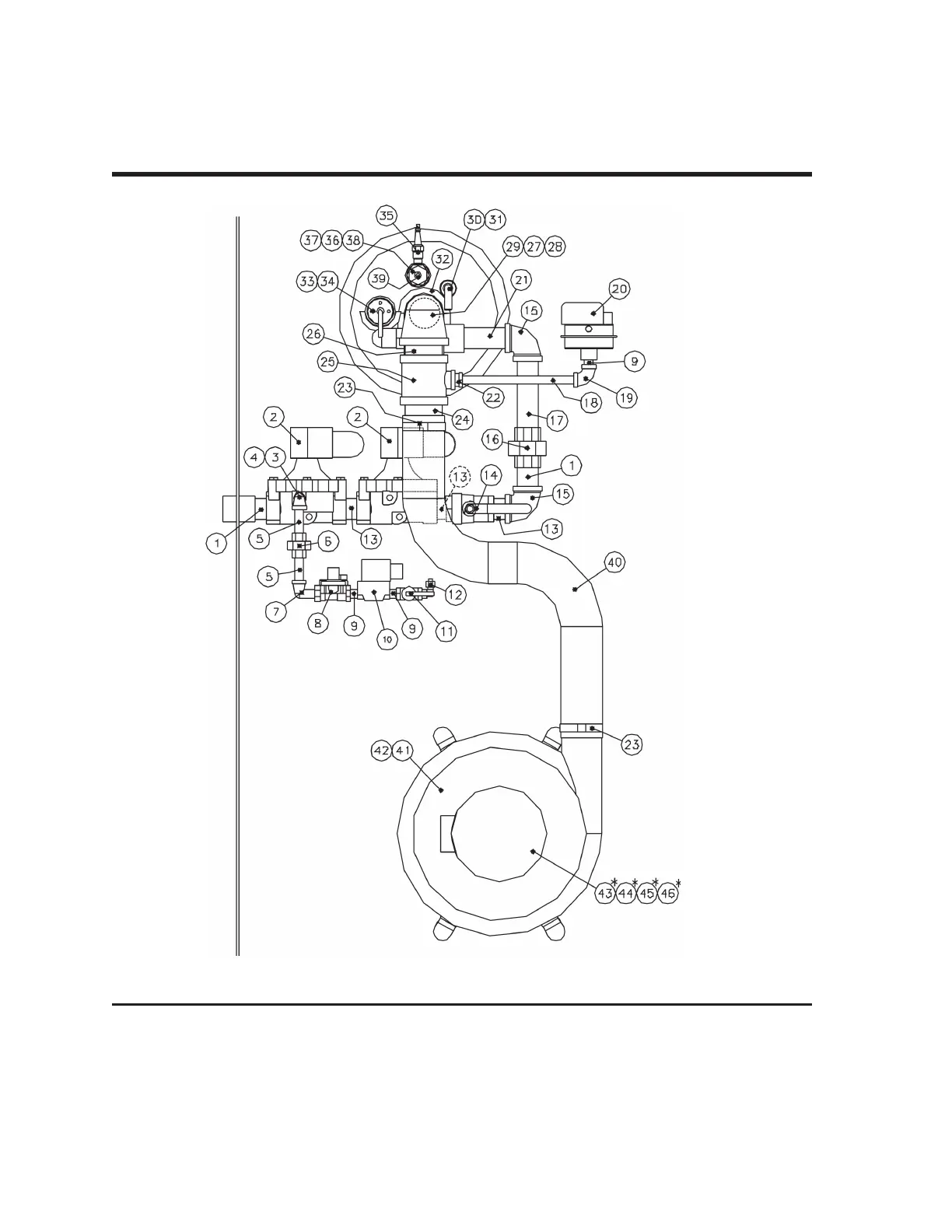

Gas System Detail
ID
Part Number
Qty
Description
1
5001-248
2
NIPPLE 1" x 2"
2
2206-429
2
MAGNETIC V
AL
VE 1" NPT 120 V
AC
3
5002-155
1
ELBOW RED
90 DEG 1/4" x 1/8"
4
5001-002
1
NIPPLE 1/8" x CLOSE
5
5001-054
2
NIPPLE 1/4" x 2"
177
179
