LeCroy WaveMaster 8600A User Manual

256 WM-OM-E Rev I

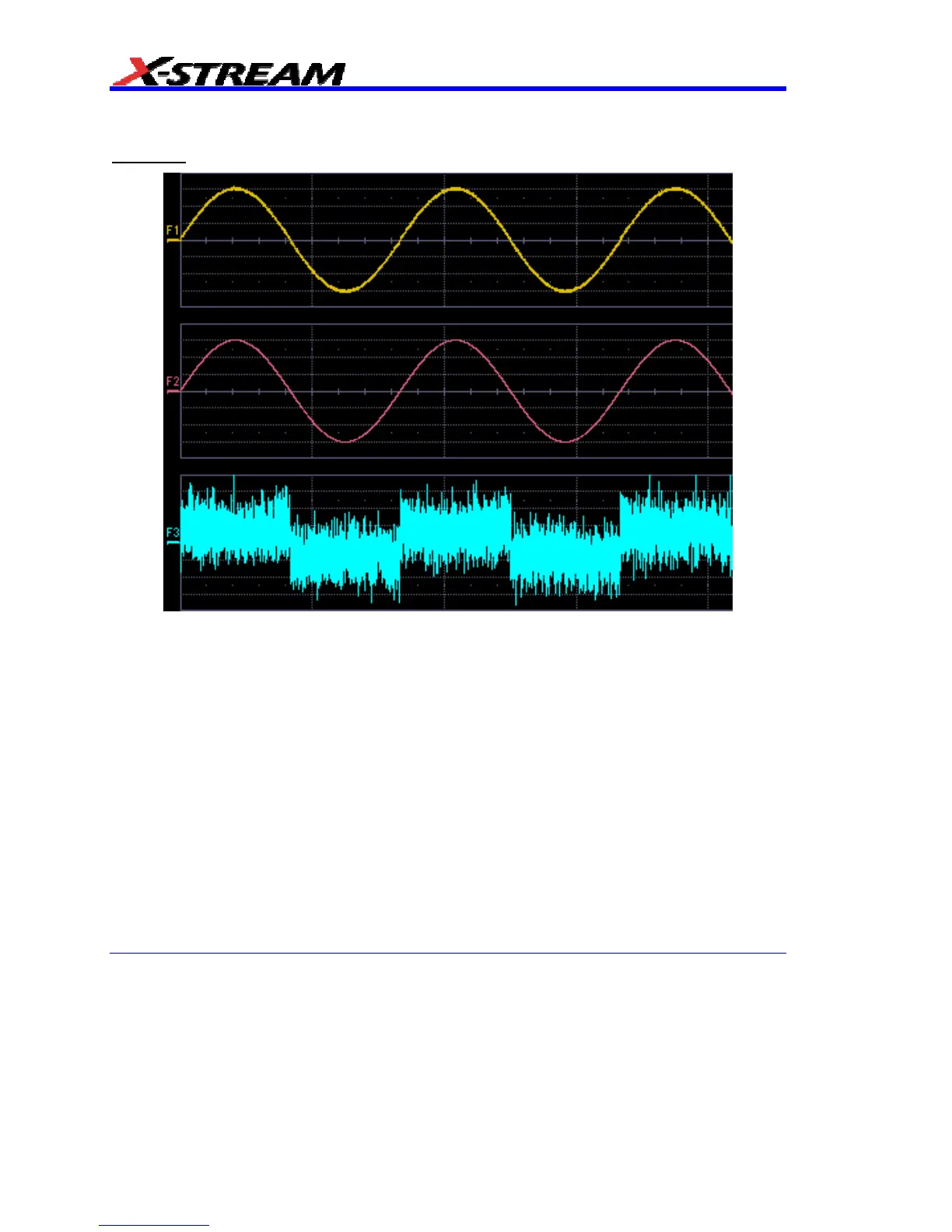

golden waveform. The subtraction (of course) contains all the noise, but it also shows the presence
of a very small square wave signal.
Example 3
Here is the VBScript that produced the "golden sine" (F2 above):
Frequency = 3000000.0 ' Frequency of real data
SampleTime = InResult.HorizontalPerStep
Omega = 2.0 * 3.1416 * Frequency * SampleTime
Amplitude = 0.15 ' Amplitude of real data
For K = 0 To LastPoint
newDataArray(K) = Amplitude * Sin(Omega * K)
Next
OutResult.DataArray(True) = newDataArray ' Data in volts
OutResult.DataArray is the waveform returned to the scope and displayed on the scope as the F2
waveform.

LeCroy WaveMaster 8600A Specifications

General

Bandwidth	6 GHz
Sample Rate	20 GS/s
Channels	4
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Input Impedance	50 Ω, 1 MΩ
Input Voltage Range	±1 V (50 Ω), ±5 V (1 MΩ)
Trigger Modes	Edge, Pattern, Video
Display	10.4 inch Color LCD
Interface	USB, Ethernet, GPIB
Operating Temperature	0 to 50 °C
Weight	40 lbs (18.2 kg)
