MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility
| Using MegaRAID Recovery

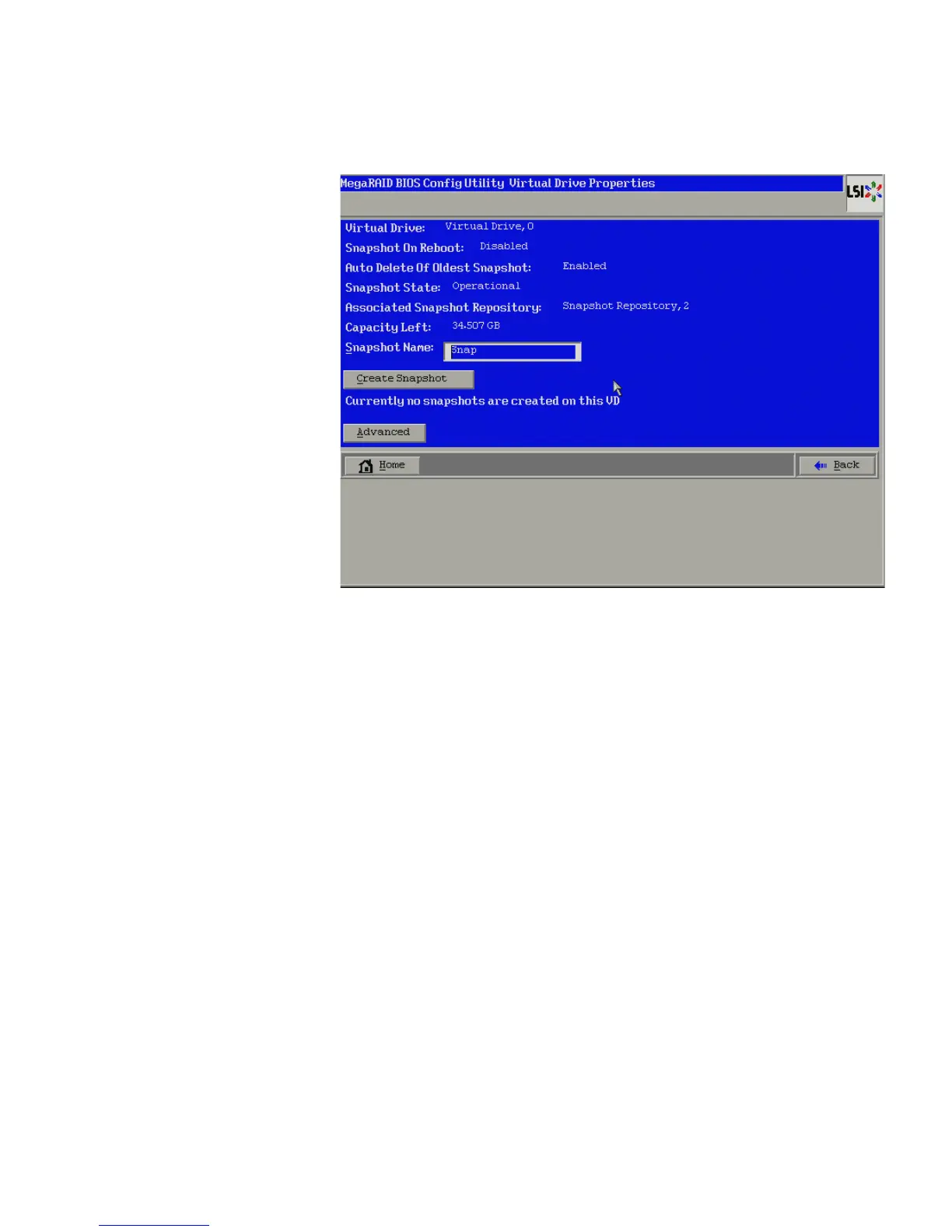

Figure 95: Properties
4. Enter a snapshot name in the Enter snapshot name textbox and click Create
Snapshot.
This creates a snapshot that appears as a link in the Snapshot Timeline.
5. Click on the link of a specific snapshot.
The snapshot details appear.
6. Click Advanced. The Snapshot Settings screen appears as shown in Figure101.
7. Click Create View.
The Create View screen appears, as shown in Figure96.
