Page 340
MegaRAID SAS Software User GuideChapter 11: Using MegaRAID® Advanced Software
| Recovery Advanced Software
After you click the base virtual drive, the base virtual drive information appears in the
right frame of the Properties tab under Snapshot Base Details (marked pink in the
following figure).

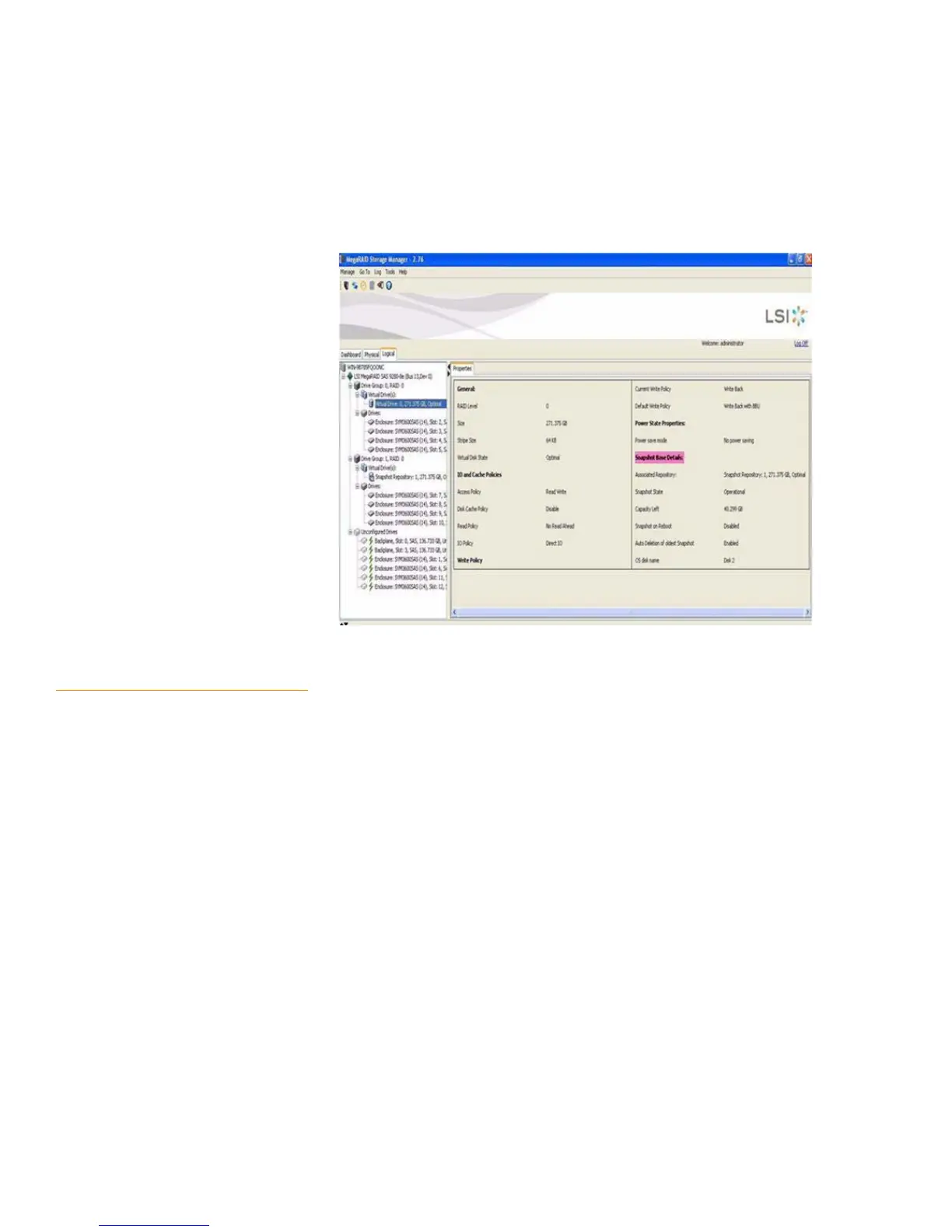

Figure 222: Snapshot Base details
11.2.18 Manage Snapshots You can create snapshots, delete snapshots, create views, and also edit, pause, or delete
schedules using the Manage Snapshots wizard.
1. Select Go To->Virtual Drive->Manage Snapshot wizard on the menu bar, as
shown in Figure223.
