MegaRAID SAS Software User GuideChapter 11: Using MegaRAID® Advanced Software
| Recovery Advanced Software

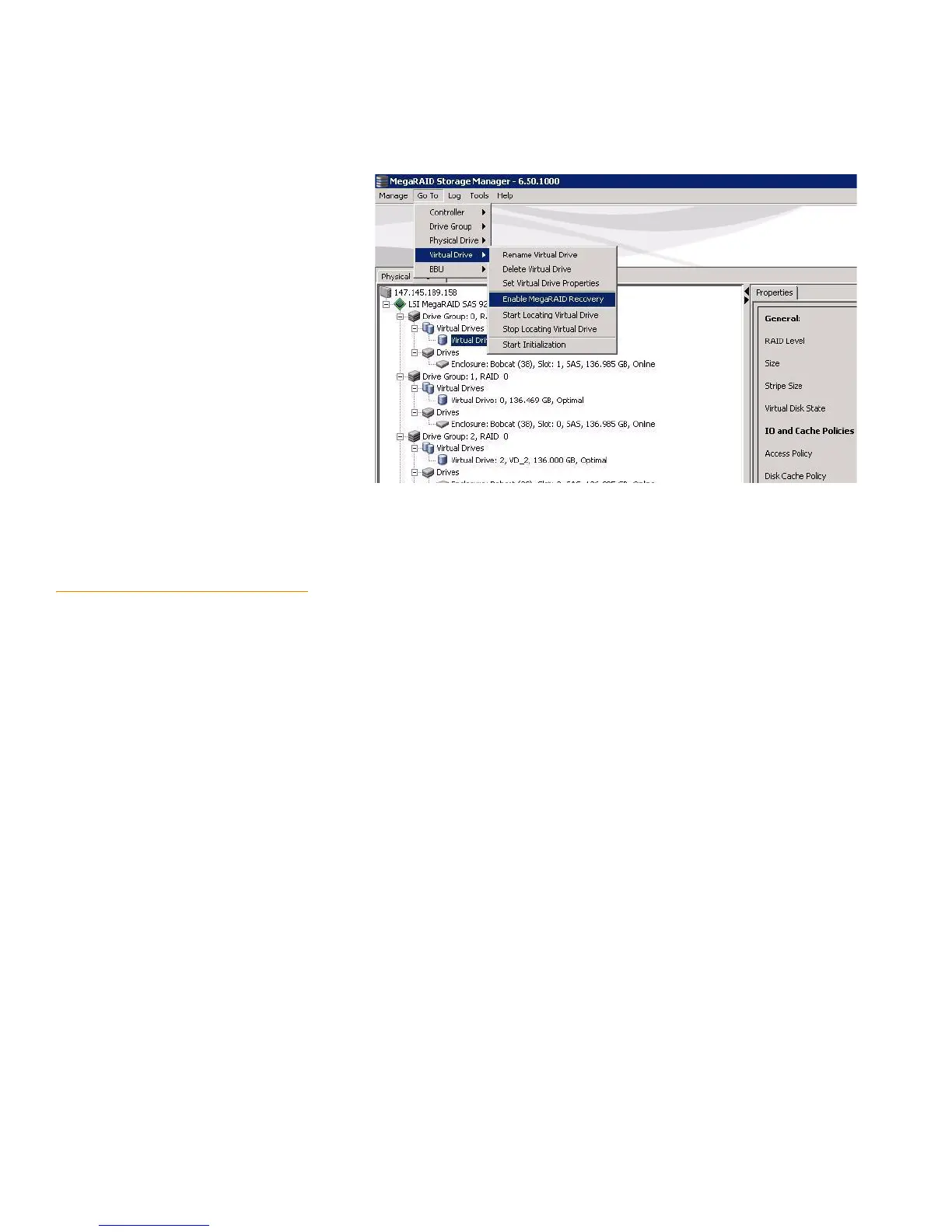

Figure 216: Enable MegaRAID Recovery Menu Option
The Enable MegaRAID Recovery Wizard appears, as shown in Figure217. This wizard
allows you to select the virtual drive (VD) to use as the snapshot repository.
11.2.13 Snapshot Repository You can select an existing VD, or create a new VD for the snapshot repository.
Select any one of the options to select or create a new VD.
 Select the VD to use as the Snapshot Repository in the Snapshot Repository field
from the Enable MegaRAID Recovery Wizard wizard as shown in Figure217.
 Click the Create New button to create a new VD to use as the Snapshot Repository.
When you create a new VD, the newly created VD gets appended to the existing
rows in the Snapshot Repository field.
