Page 148
MegaRAID SAS Software User GuideChapter 4: WebBIOS Configuration Utility
| Using MegaRAID Recovery

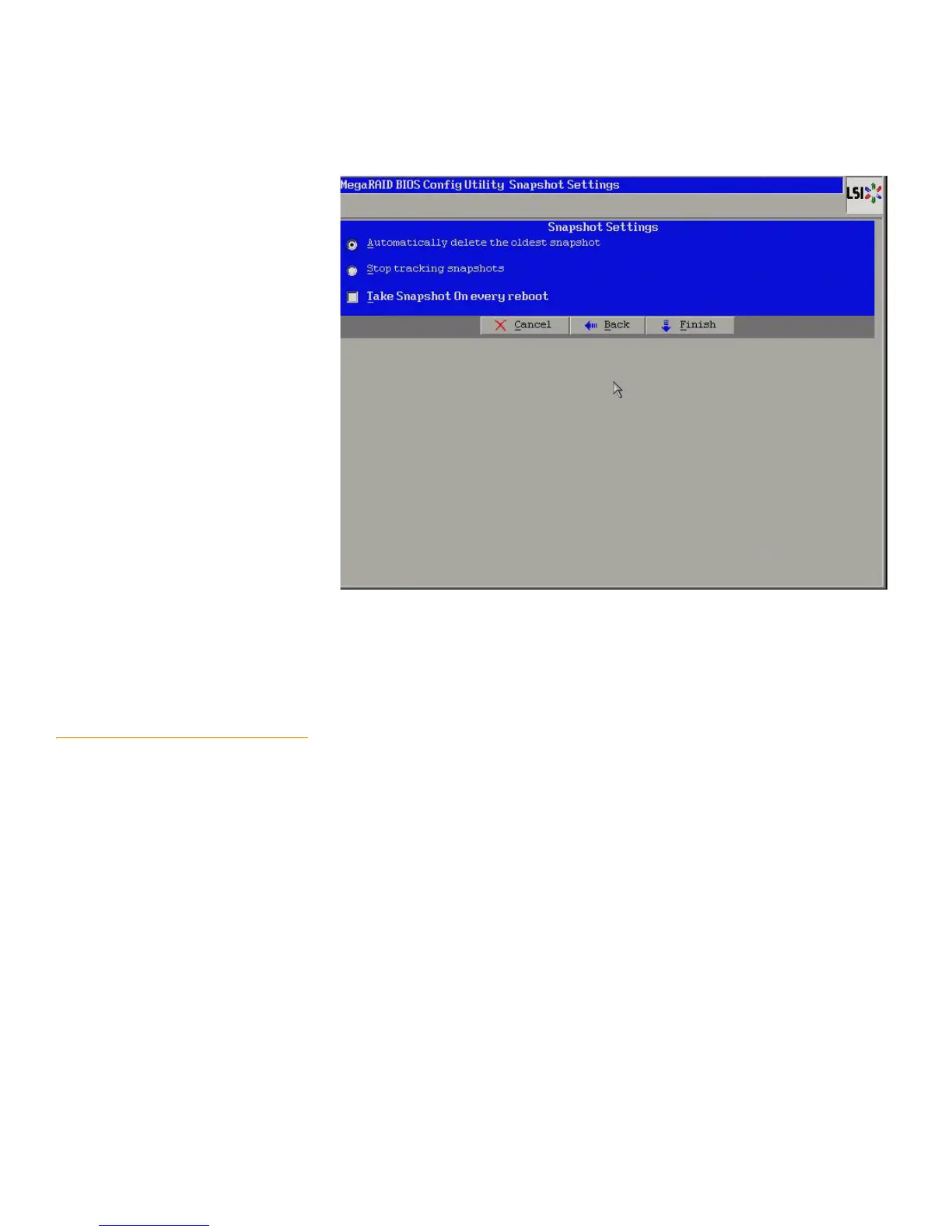

Figure 101: Snapshot Settings Screen
3. Select the check box next to Take Snapshot on every Reboot option, or select the
Automatically delete the oldest snapshot option, or select the Stop tracking
snapshots using the radio button.
4. Click Finish.
4.10.6 Viewing Snapshot Properties You can view the properties of a snapshot, such as the total capacity, capacity used, and
capacity available.
Follow these steps to view snapshot properties.
1. Click a virtual drive icon in the right panel on the WebBIOS CU main screen.
The Virtual Drive screen appears, as shown in Figure102.
