This section describes the MegaRAID Storage Manager main menu, which is shown in
Figure134.

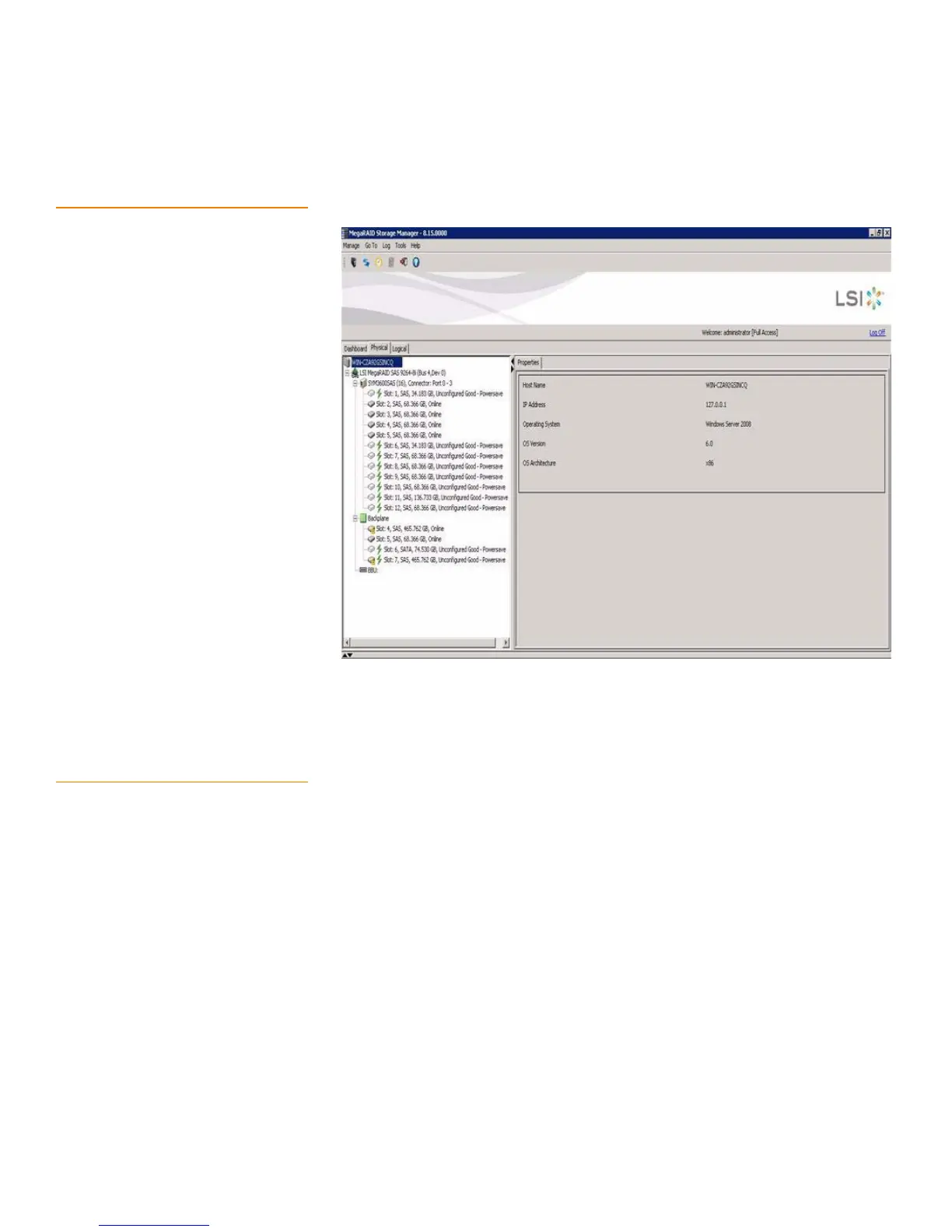

Figure 134: Main MegaRAID Storage Manager Window
The following topics describe the panels and menu options that appear on this
screen.
7.2.1 Dashboard/PhysicalView/Logic
al View
The left panel of the MegaRAID Storage Manager window displays the Dashboard view,
the Physical view, or the Logical view of the system and the attached devices,
depending on which tab is selected.
7.2.1.1 Dashboard View The Dashboard view shows an overview of the system and covers the following
features:
— Properties of the virtual drives and the physical drives
— Total capacity, configured capacity, and unconfigured capacity
— Background operations in progress
— MSM features and their status (enabled or disabled)
— Actions you can perform, such as creating a virtual drive and updating the
firmware
— Links to Online Help
Figure135 shows the Dashboard view.
