Page 37

MegaRAID SAS Software User Guide Chapter 2: Introduction to RAID

| RAID Levels

Figure 11: RAID 00 Drive Group Example with Two Drives

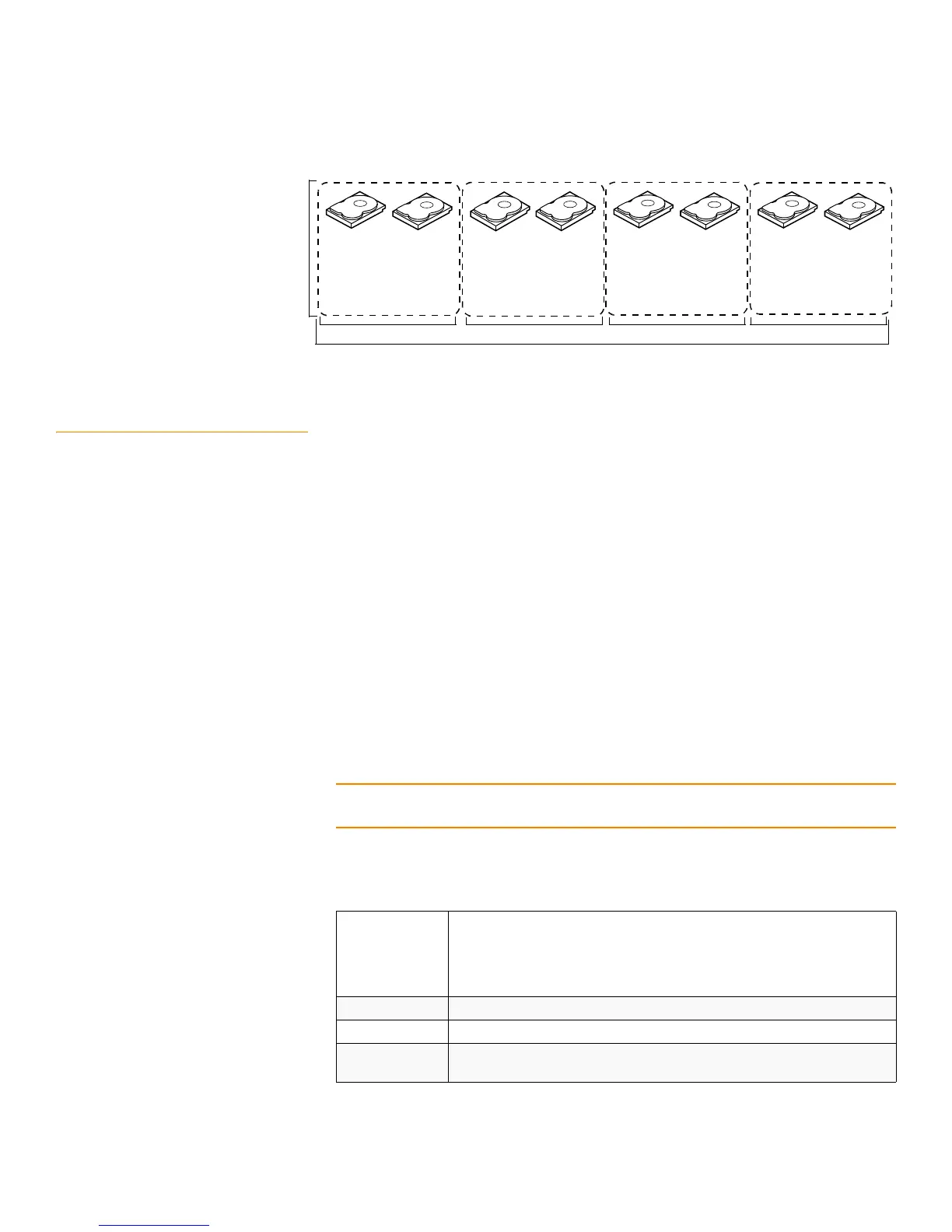

2.5.8 RAID 10 RAID 10 is a combination of RAID 0 and RAID 1, and consists of stripes across mirrored

drives. RAID 10 breaks up data into smaller blocks and then mirrors the blocks of data

to each RAID 1 drive group. The first RAID 1 drive in each drive group then duplicates its

data to the second drive. The size of each block is determined by the stripe size

parameter, which is set during the creation of the RAID set. The RAID 1 virtual drives

must have the same stripe size.

Spanning is used because one virtual drive is defined across more than one drive

group. Virtual drives defined across multiple RAID 1 level drive groups are referred to as

RAID level 10, (1+0). Data is striped across drive groups to increase performance by

enabling access to multiple drive groups simultaneously.

Each spanned RAID 10 virtual drive can tolerate multiple drive failures, as long as each

failure is in a separate drive group. If there are drive failures, less than total drive

capacity is available.

Configure RAID 10 by spanning two contiguous RAID 1 virtual drives, up to the

maximum number of supported devices for the controller. RAID 10 supports a

maximum of eight spans, with a maximum of 32 drives per span. You must use an even

number of drives in each RAID 10 virtual drive in the span.

NOTE: Other factors, such as the type of controller, can restrict the number of drives

supported by RAID 10 virtual drives.

Table12 provides an overview of RAID 10.

Segment 1

Segment

...

RAID

RAID 0

Segment

Table 12: RAID 10 Overview

Uses Appropriate when used with data storage that needs 100 percent

redundancy of mirrored drive groups and that also needs the enhanced I/O

performance of RAID 0 (striped drive groups.) RAID 10 works well for

medium-sized databases or any environment that requires a higher degree

of fault tolerance and moderate to medium capacity.

Strong Points Provides both high data transfer rates and complete data redundancy.

Weak Points Requires twice as many drives as all other RAID levels except RAID 1.

Drives 4 - The maximum number of drives supported by the controller (using an

even number of drives in each RAID 10 virtual drive in the span)
