Lenovo ThinkServer RD330 - Power Save Settings - Advanced

Page 281
MegaRAID SAS Software User Guide Chapter 8: Configuration
| Changing Power Settings

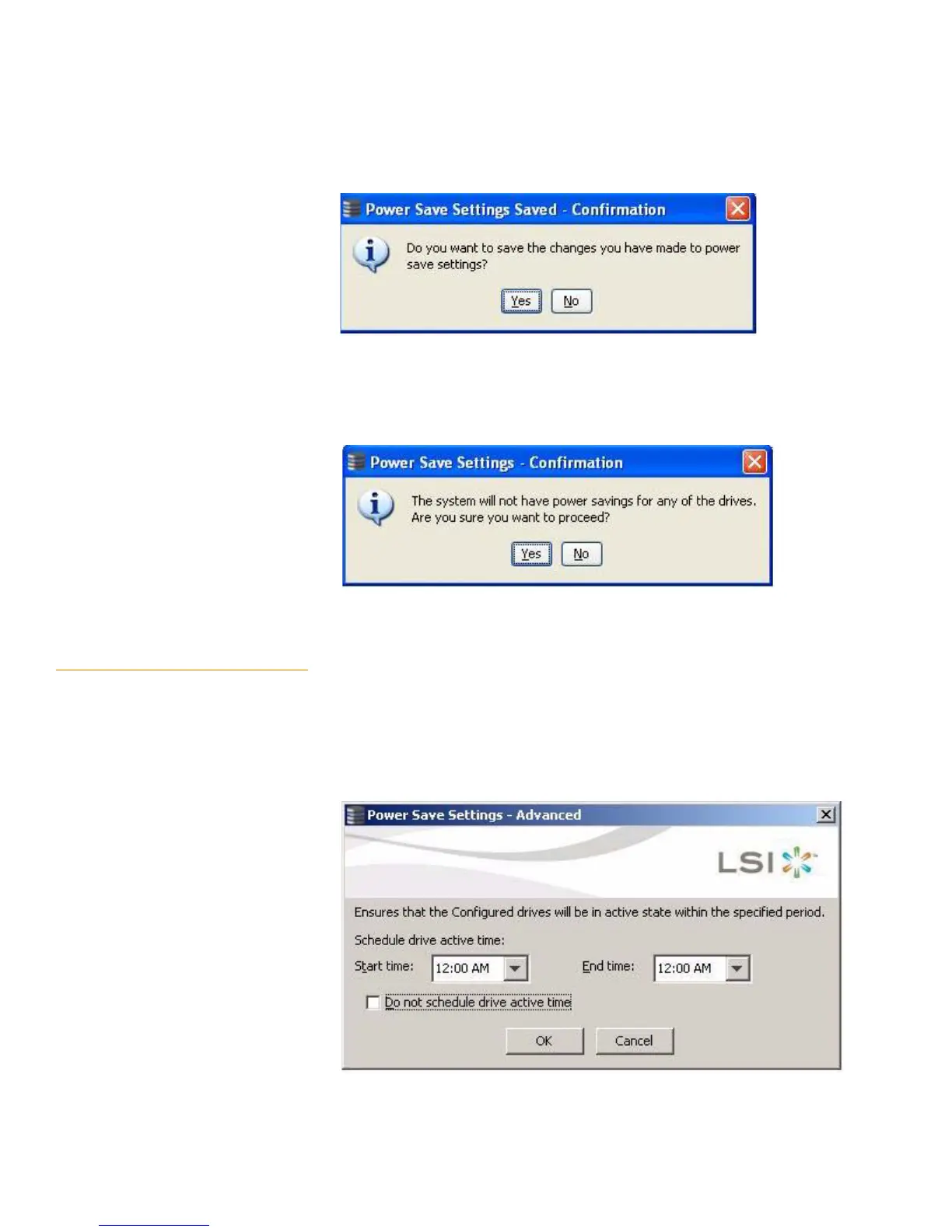

Figure 160: Power-Save Settings
If you do not specify the Power-Save settings in the Manage Power Save Settings
screen as shown in Figure159, the following dialog box appears.
Figure 161: Power-Save Settings Not Saved
8.5.2 Power Save Settings -
Advanced
You can schedule the drive active time by selecting the Start time and End time in the
Power Save Settings - Advanced screen.
Perform the following steps to schedule the drive active time.
1. Click the Advanced button in the Manage Power Save Settings screen as shown in
Figure159.
2. The Power Save Settings - Advanced screen is displayed in the following figure.
Figure 162: Power Save Settings - Advanced
