Lenovo ThinkServer RD330 - Importing Foreign Drives to EKM

Page 363
MegaRAID SAS Software User Guide Chapter 11: Using MegaRAID® Advanced Software
| SafeStore Encryption Services

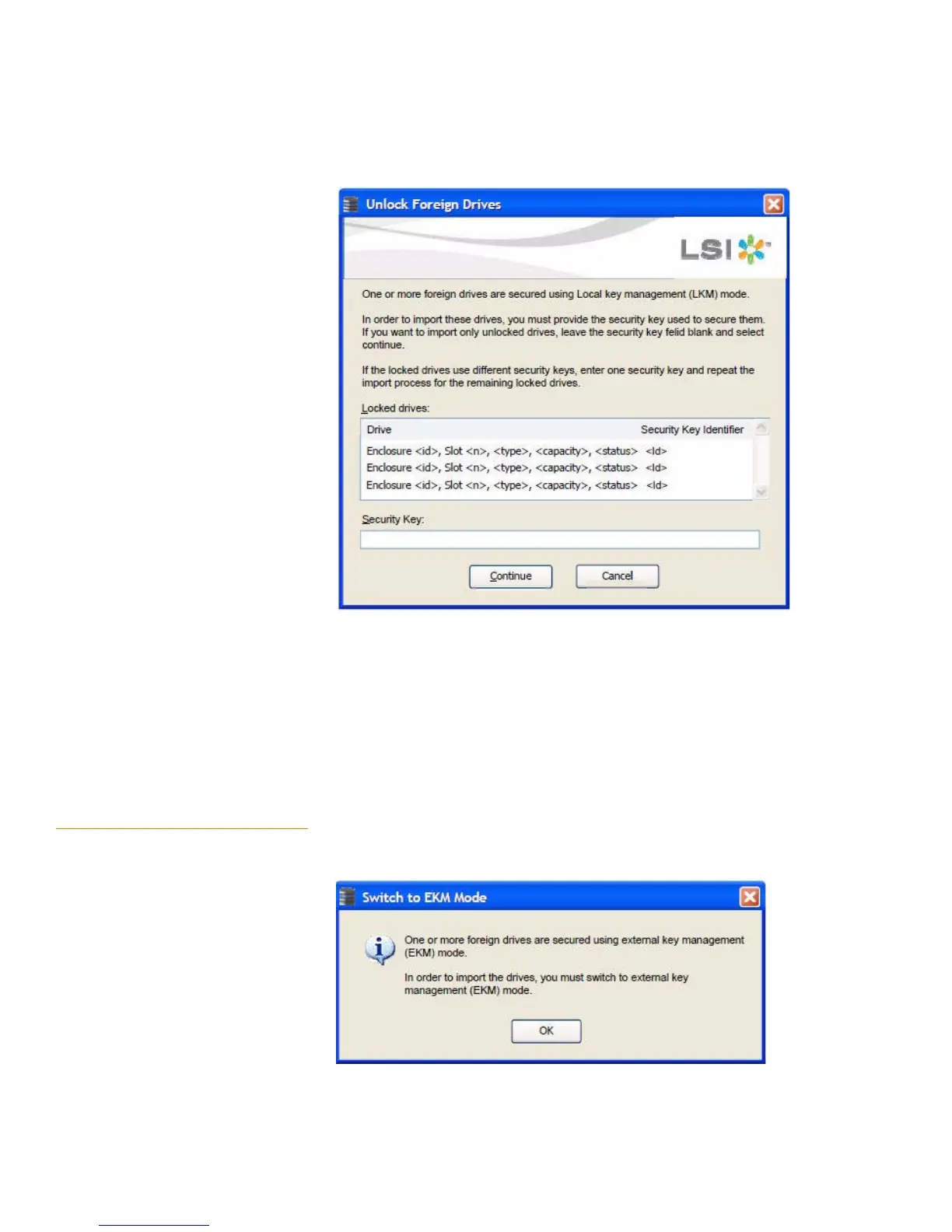

Figure 250: Unlock Foreign Drives
 The locked drives field display the drives that are locked with the LKM mode.
 The Security Key displays the LKM security key for the VD.
After you enter the security key in the Security key field, the system tries to unlock
each of the locked foreign drives using the security key. If at least one drive is unlocked,
then the Import preview screen appears. If no drives are unlocked, the Incorrect
security Key dialog appears.
11.5.8 Importing Foreign Drives to
EKM
When VD is secured with EKM mode, and if that VD is in Foreign state, and if you switch
to LKM mode, and if you want to import to the foreign configuration, then the dialog
box appears as shown in the following figure.
Figure 251: Switch to EKM Mode
