MegaRAID SAS Software User Guide Chapter 11: Using MegaRAID® Advanced Software
| Recovery Advanced Software

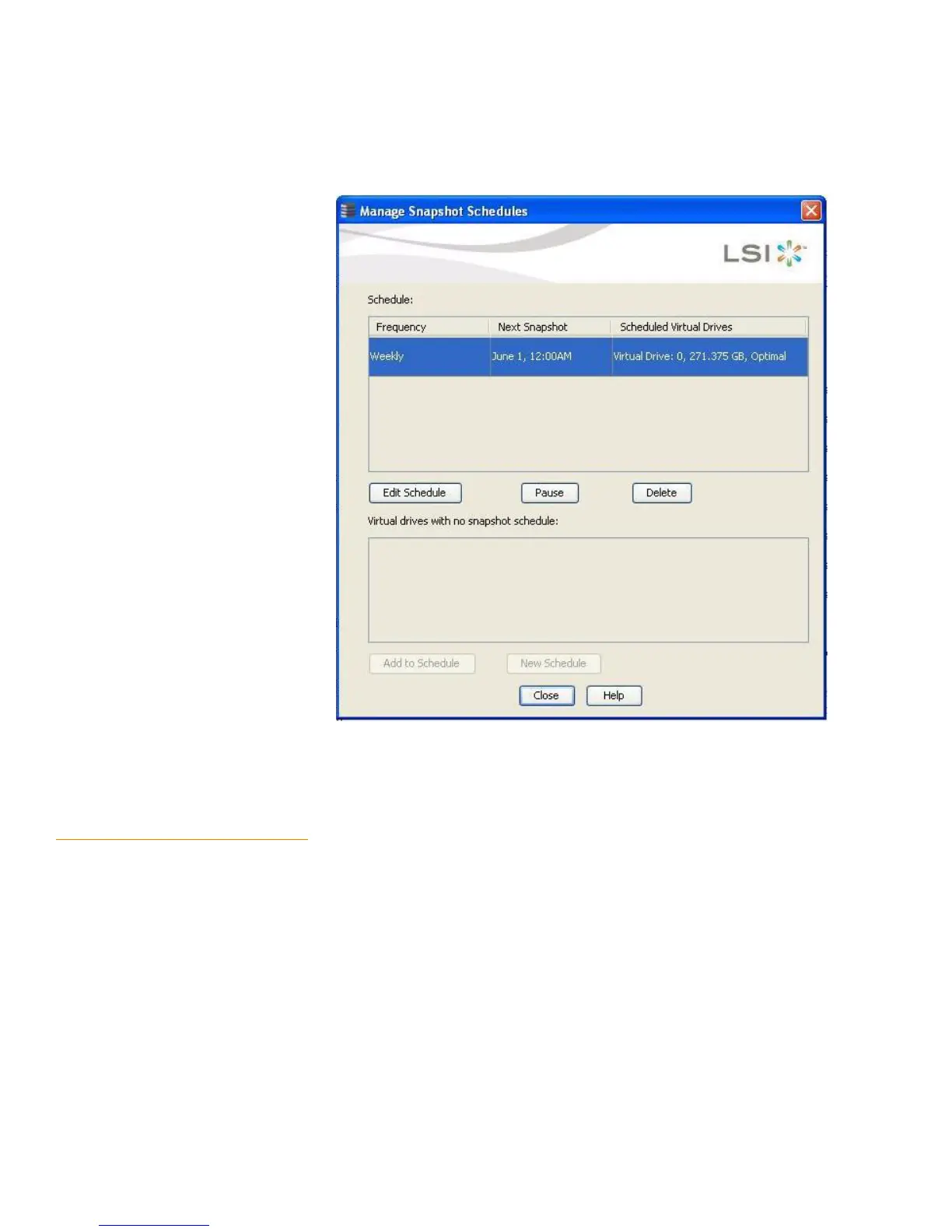

Figure 229: Virtual drives with no snapshot schedule
 Click Add to Schedule to add a snapshot schedule.
 Click New Schedule to add a new snapshot schedule.
11.2.25 Creating Views After you create the snapshots, you can create views of the PiT snapshots. You can
search the views to find a snapshot that does not contain the corrupt data or a
snapshot that contains the deleted data, depending on the situation.
Follow these steps to create views of the snapshots.
1. Click the Logical view on the main menu screen.
2. Click the Snapshot Base virtual drive in the left frame.
3. Click the Snapshots tab in the right frame.
This screen shows the Snapshot Base details and any existing snapshots.
4. Click Create View in the right frame.
The Create View screen appears, as shown in Figure230.
