Lenovo ThinkServer RD330 User Manual

Page 275
MegaRAID SAS Software User Guide Chapter 8: Configuration
| Adding Hot Spare Drives

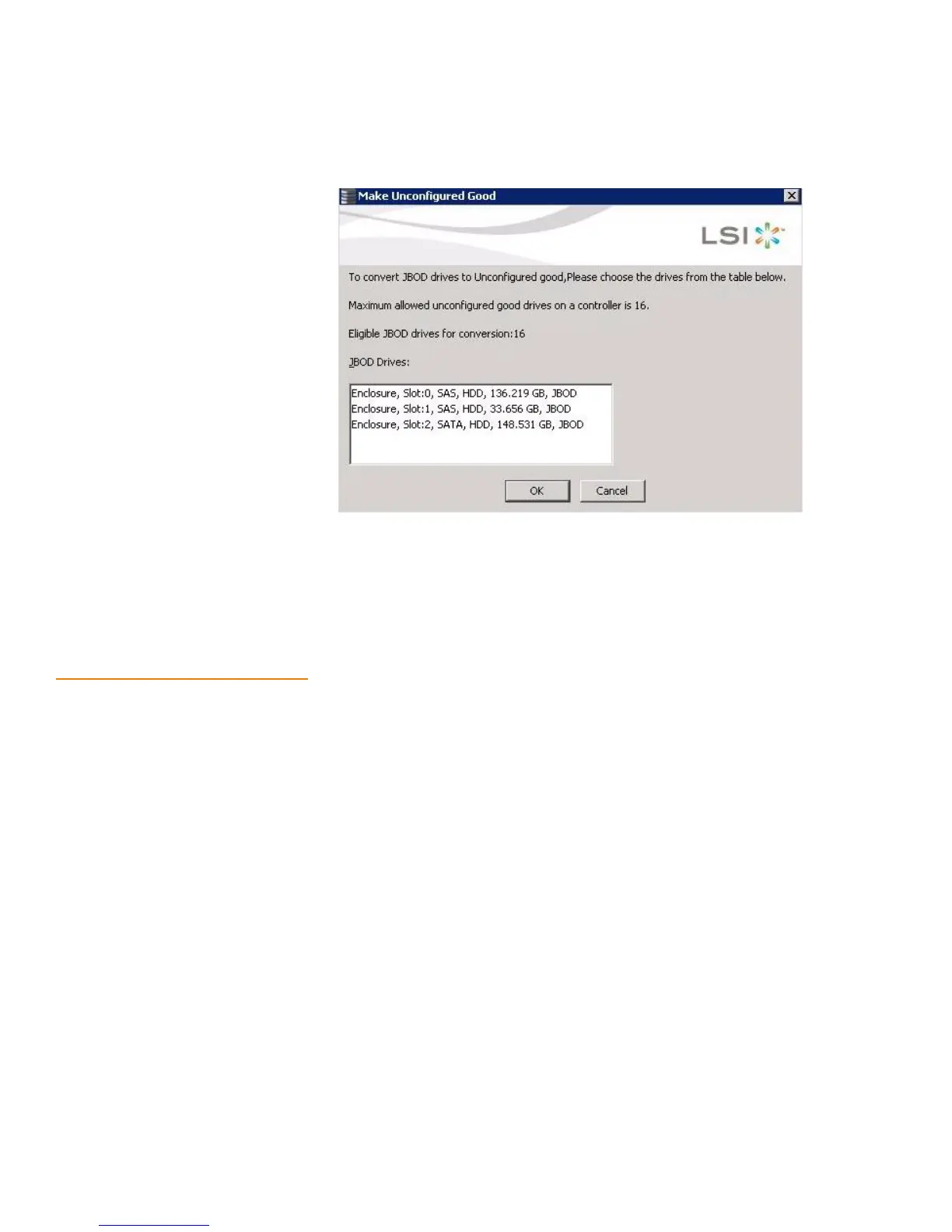

Figure 154: Make Configured Good
12. Select the JBOD drives to be configured as Unconfigured Good.
13. Click OK.
The selected JBOD drives are configured as Unconfigured Good.
8.3 Adding Hot Spare Drives Hot spares are drives that are available to automatically replace failed drives in a RAID 1,
RAID 5, RAID 6, RAID 10, RAID 50, or RAID 60 virtual drive. Dedicated hot spares can be
used to replace failed drives in a selected drive group only. Global hot spares are
available to any virtual drive on a specific controller.
To add a dedicated or global hot spare drive, follow these steps:
1. Select the Physical tab in the left panel of the MegaRAID Storage Manager main
menu, and click the icon of an unused drive.
For each drive, the screen displays the port number, enclosure number, slot number,
drive state, drive capacity, and drive manufacturer.
2. Select Go To>Physical Drive>Assign (G)lobal Hot Spare or Go To>Physical
Drive>Assign (D)edicated Hot Spare.
3. If you selected Assign(De)dicated Hotspare, select a drive group from the list that
appears. The hot spare is dedicated to the drive group that you select.
If you selected Assign (G)lobal Hotspare, skip this step and go to the next step. The
hot spare is available to any virtual drive on a specific controller.
4. Click Go to create the hot spare.
The drive state for the drive changes to dedicated or global hot spare, depending
on your selection.

Lenovo ThinkServer RD330 Specifications

General

Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor code	SR0LR
Processor cache	10 MB
Processor cores	4
Processor model	E5-2407
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor codename	Sandy Bridge EN
Motherboard chipset	Intel® C606
Processor frequency	2.2 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	45 x 42.5 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	1
Maximum number of SMP processors	2
Maximum number of PCI Express lanes	24
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25 GB/s
Maximum internal memory supported by processor	375 GB
HDD size	3.5 \
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Optical drive type	DVD-RW
Total storage capacity	0 GB
Maximum storage capacity	12 TB
Number of HDDs installed	0
Memory slots	12
Internal memory	4 GB
Memory clock speed	1333 MHz
Maximum internal memory	192 GB
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
PS/2 ports quantity	-
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	3
Compatible operating systems	Windows Server 2012\\r Windows Server 2008\\r Windows Server 2008 R2\\r Windows Small Business Server 2011\\r Novel SUSE Linux Enterprise Server\\r VMware vSphere and VMware ESXi
Chassis type	Rack (1U)
Power supply	550 W
Sustainability certificates	ENERGY STAR
PCI Express slots version	3.0
Processor ARK ID	64614
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Depth	734 mm
Width	482.4 mm
Height	43.6 mm
Weight	17000 g
