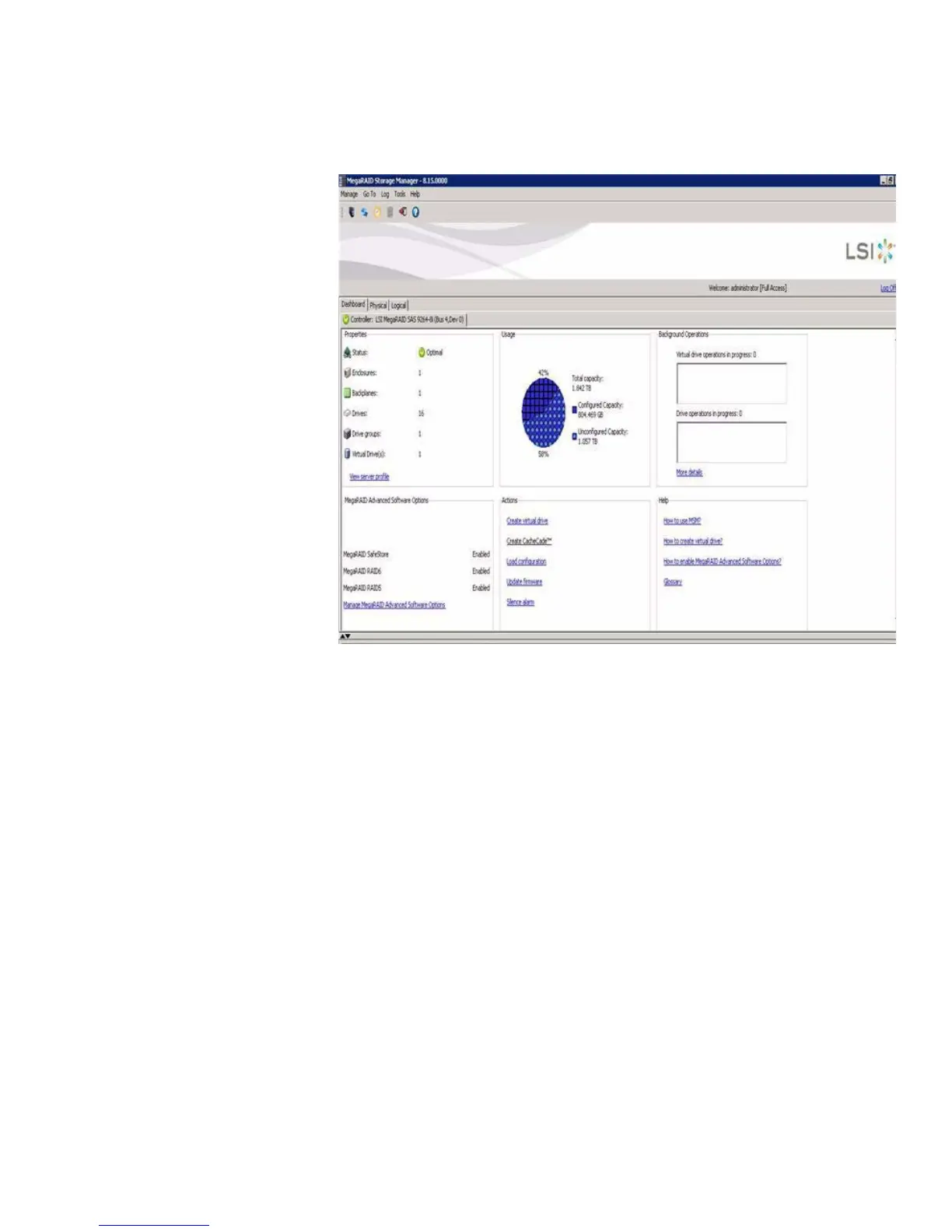

Figure 135: MSM Dashboard View
7.2.1.2 Physical View
The Physical view shows the hierarchy of physical devices in the system. At the top of
the hierarchy is the system itself, followed by the controller and the backplane. One or
more controllers are installed in the system. The controller label identifies the
MegaRAID controller, such as the MegaRAID SAS 9260-8i controller, so that you can
easily differentiate between multiple controllers. Each controller has one or more ports.
Drives and other devices are attached to the ports. The properties for each item appear
in the right panel of the screen.
Figure136 shows the Physical view.
