Page 254
MegaRAID SAS Software User GuideChapter 7: MegaRAID Storage Manager Window and Menus
| MegaRAID Storage Manager
Main Menu

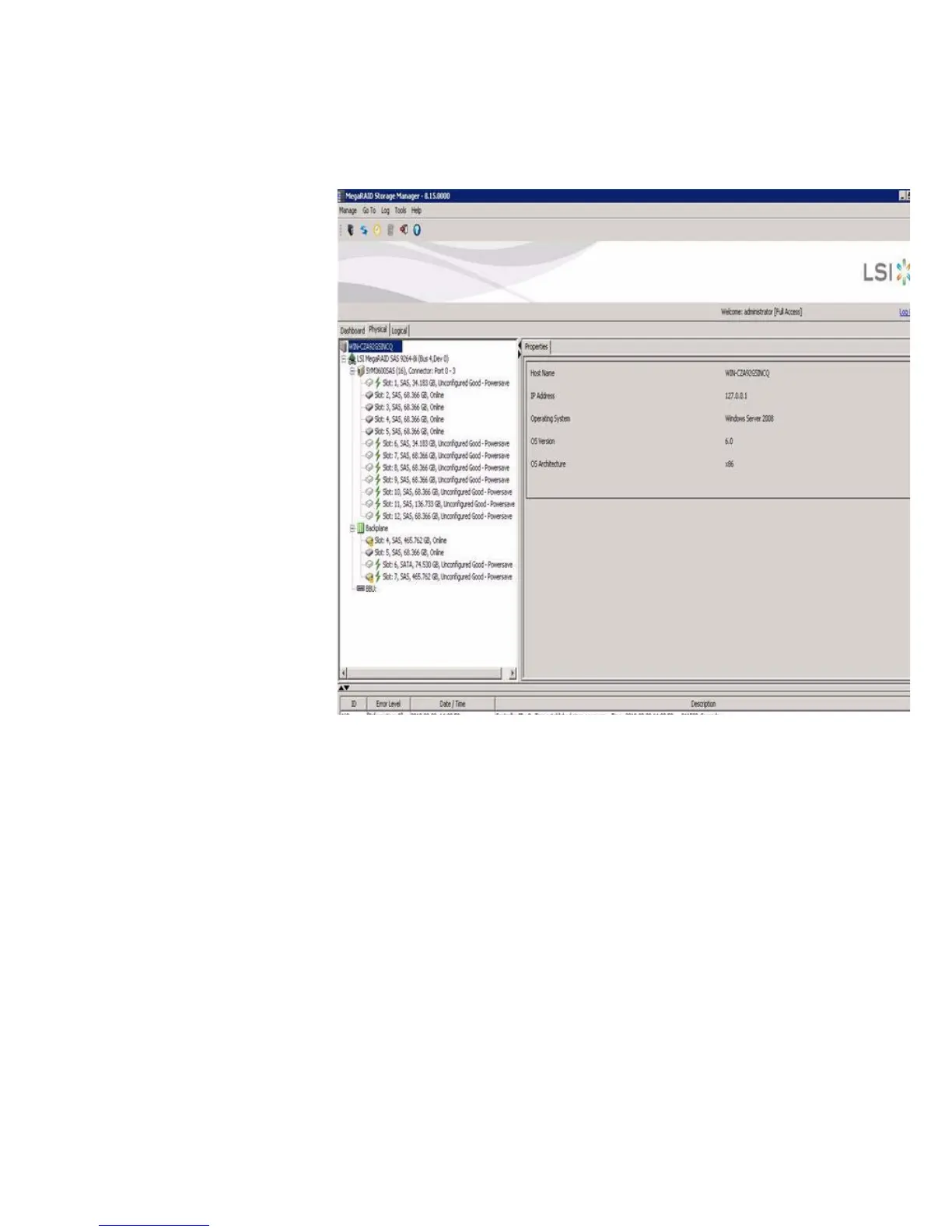

Figure 136: MSM Physical View
7.2.1.3 Logical View
The Logical view shows the hierarchy of controllers, virtual drives, and the drives and
drive groups that make up the virtual drives. The properties for these components
appear in the right panel.
Figure137 shows the Logical view.
