MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility
| Managing Configurations
If WebBIOS CU detects a foreign configuration, the Foreign Configuration screen
appears, as shown in Figure109.

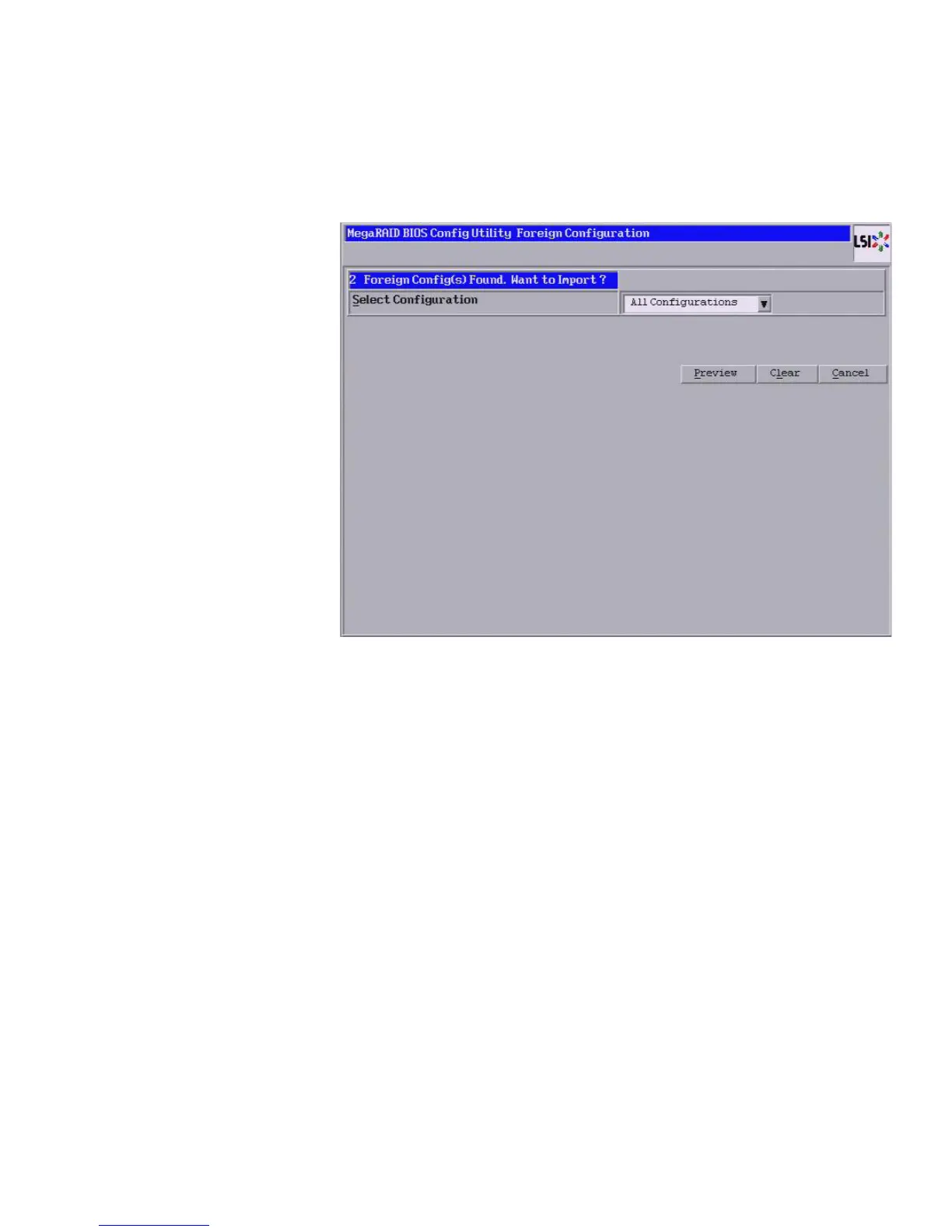

Figure 109: Foreign Configuration Import Screen
Follow these steps to import or clear a foreign configuration.
1. Click the drop-down list to show the configurations.
The GUID (Global Unique Identifier) entries on the drop-down list are OEM names
and will vary from one installation to another.
2. Select a configuration or All Configurations.
3. Perform one of the following steps:
a. Click Preview to preview the foreign configuration(s).
The Foreign Configuration Preview screen appears, as shown in Figure110.
b. Click Clear to clear the foreign configuration(s) and reuse the drives for another
virtual drive.
If you click Cancel, it cancels the importation or preview of the foreign
configuration.
