Main Menu

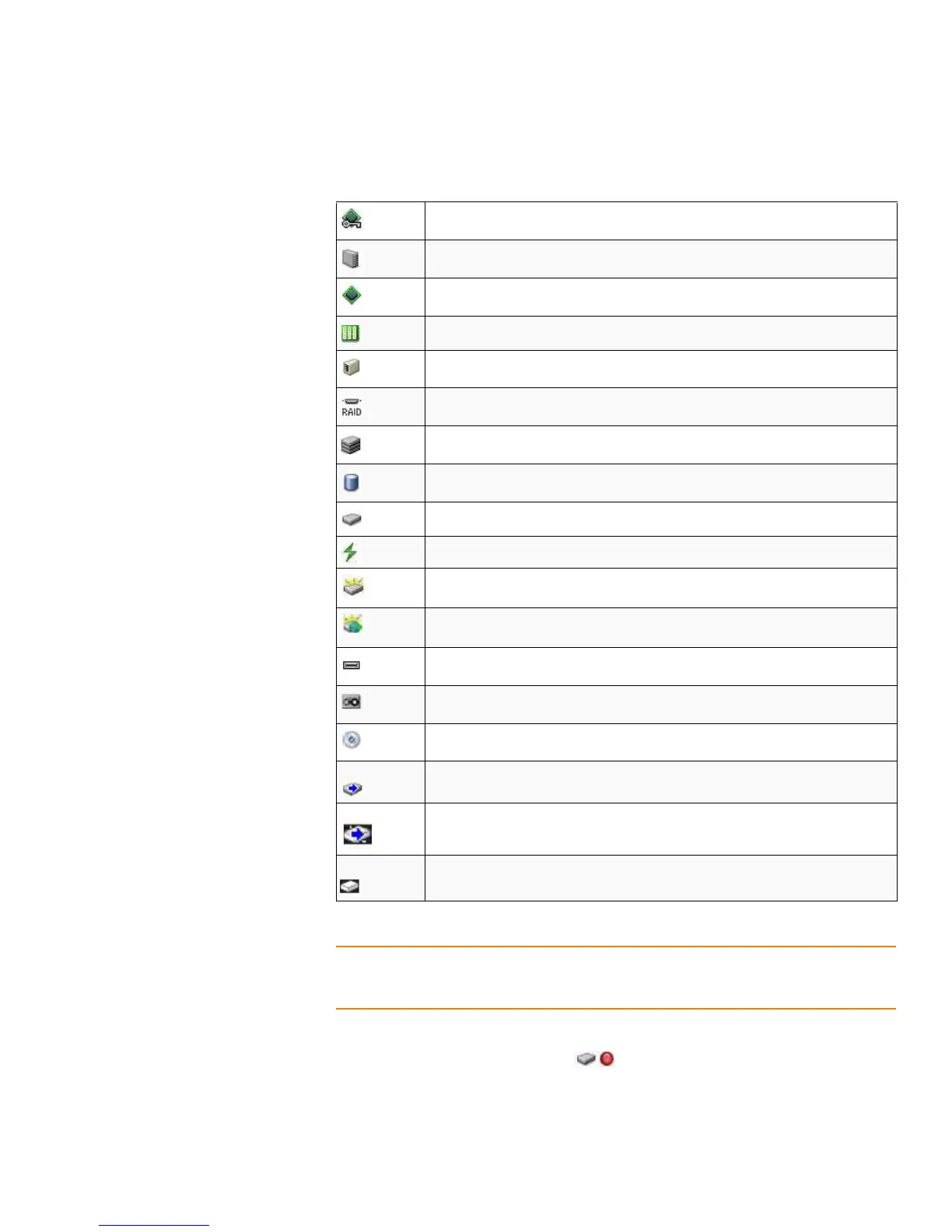

The following icons in the left panel represent the controllers, drives, and other devices:
NOTE: MegaRAID Storage Manager shows the icons for tape drive devices; however, no
tape-related operations are supported by the utility. If these operations are required, use
a separate backup application.
A red circle to the right of an icon indicates that the device has failed. For example, this
icon indicates that a drive has failed: .
Status
System
Controller
Backplane
Enclosure
Port
Drive group
Virtual drive
Online drive
Power save mode
Dedicated hot spare
Global hot spare
Battery backup unit (BBU)
Tape drive
CD-ROM
Foreign Drive
Unconfigured Foreign Drive
Unconfigured Drive
