MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility
| Creating a Storage Configuration

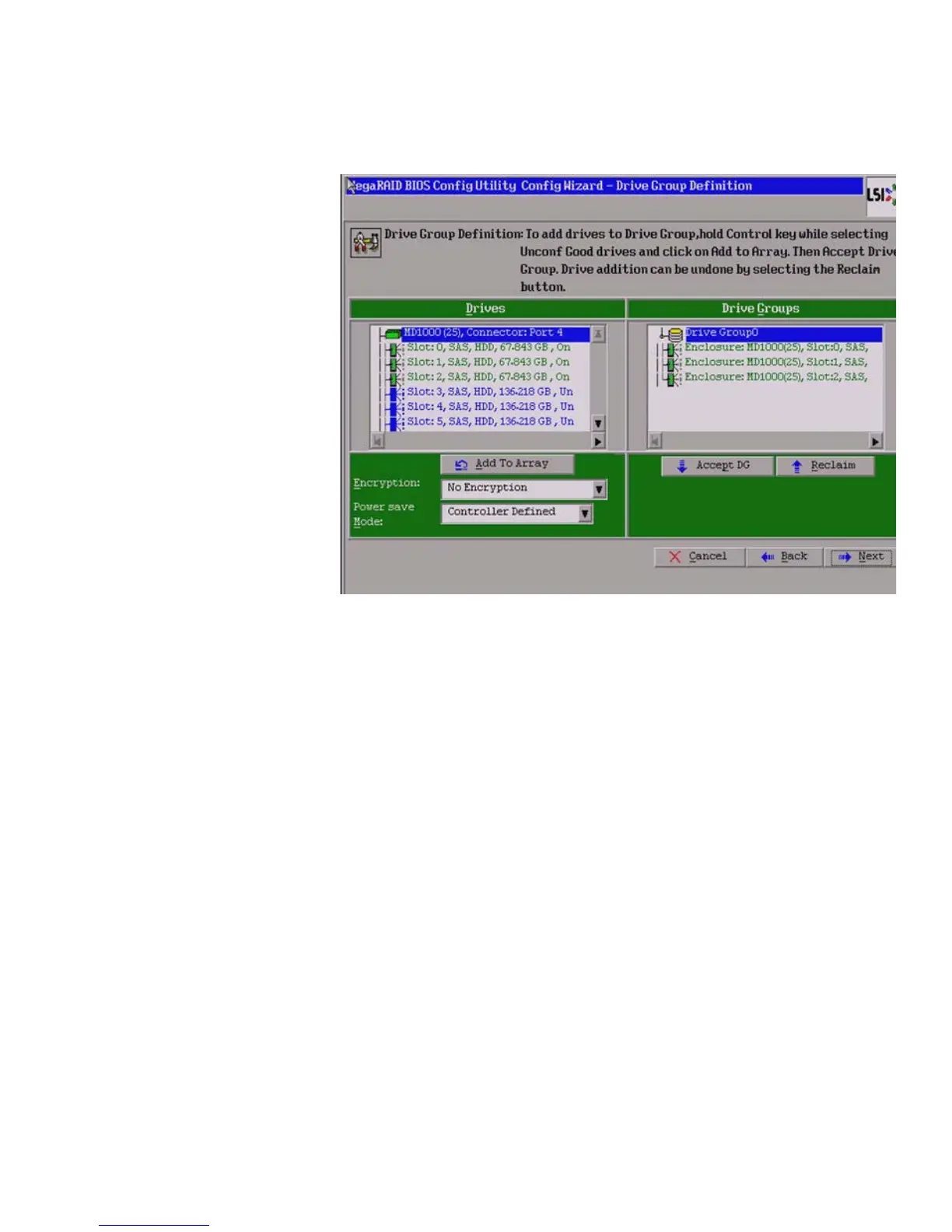

Figure 32: WebBIOS Drive Group Definition Screen
5. After you finish selecting drives for the drive group, click Accept DG.
6. Click Next.
The Virtual Drive Definition screen appears, as shown in Figure33. This screen lists
the possible RAID levels for the drive group.
Use this screen to select the RAID level, strip size, read policy, and other attributes
for the new virtual drives.
