Page 73
MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility
| Creating a Storage Configuration

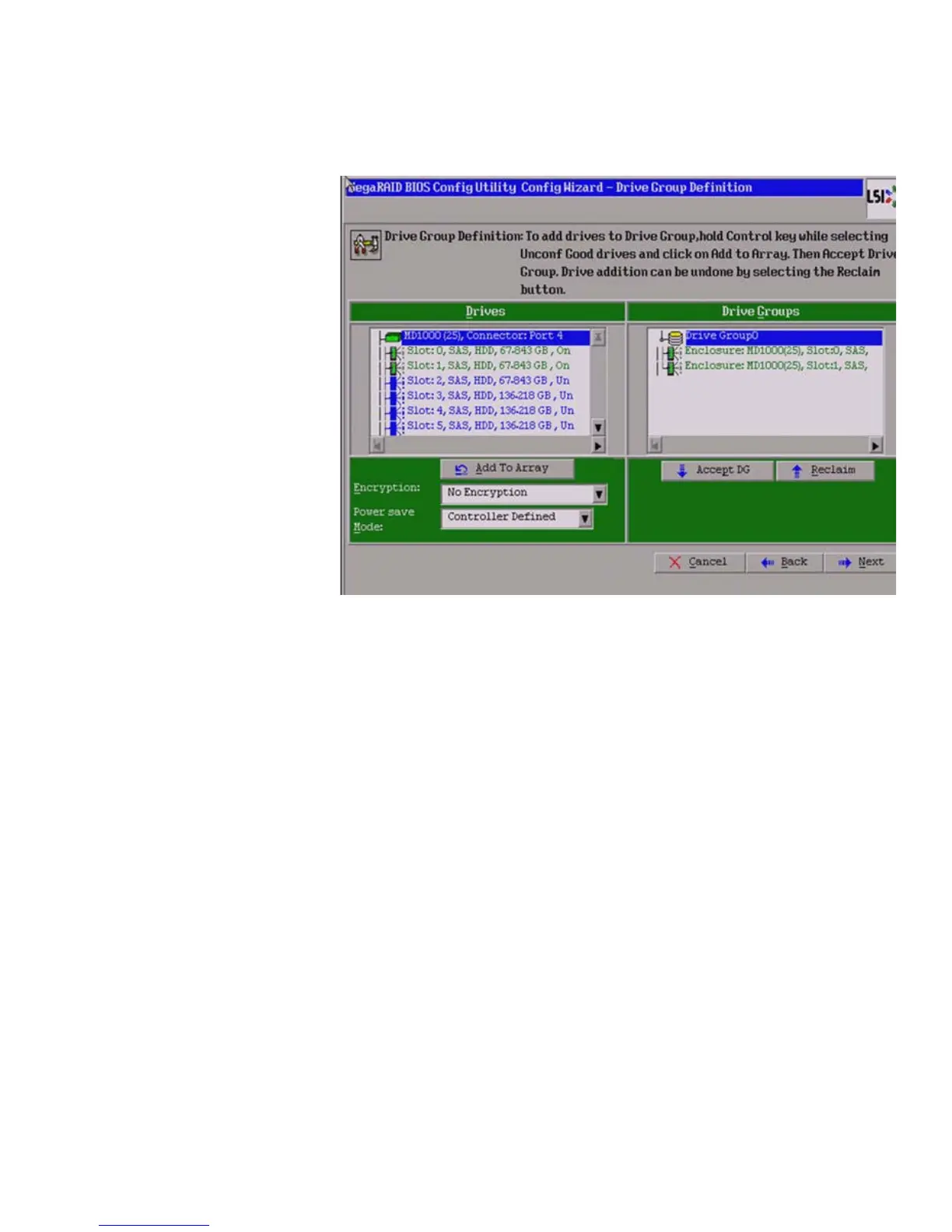

Figure 35: WebBIOS Drive Group Definition Screen
5. After you finish selecting drives for the drive group, click Accept DG.
6. Click Next.
The Virtual Drive Definition screen appears, as shown in Figure36. You use this
screen to select the RAID level, strip size, read policy, and other attributes for the
new virtual drives.
