Page 77
MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility
| Creating a Storage Configuration
2. Click Add To Array to move the drives to a proposed drive group configuration in
the Drive Groups panel on the right, as shown in Figure38.
3. If you need to undo the changes, click Reclaim.
4. Choose whether to use drive encryption.

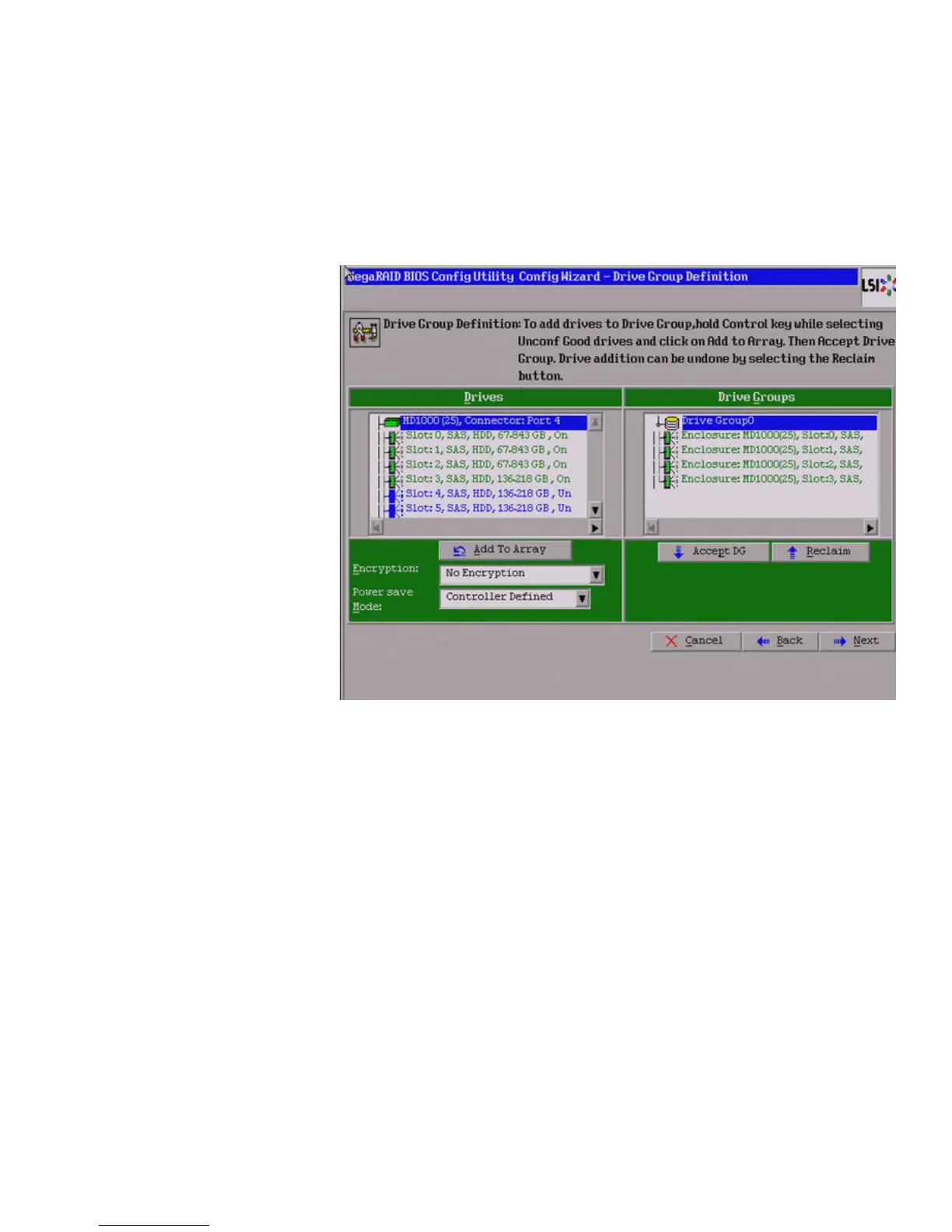

Figure 38: WebBIOS Drive Group Definition Screen
5. After you finish selecting drives for the drive group, click Accept DG.
6. Click Next.
The Virtual Drive Definition screen appears, as shown in Figure39. You use this
screen to select the RAID level, strip size, read policy, and other attributes for the
new virtual drives.
