MegaRAID SAS Software User GuideChapter 4: WebBIOS Configuration Utility
| Creating a Storage Configuration
NOTE: New RAID 6 virtual drives require at least seven drives for a background
initialization to start.
— Select Size: Specify the size of the virtual drive in megabytes. Normally, this
would be the full size for RAID 6 shown in the Configuration panel on the right.
You can specify a smaller size if you want to create other virtual drives on the
same drive group.
2. Click Accept to accept the changes to the virtual drive definition.
3. If you need to undo the changes, click Reclaim.
4. Click Next after you finish defining the virtual drives.
The Configuration Preview screen appears, as shown in Figure43.

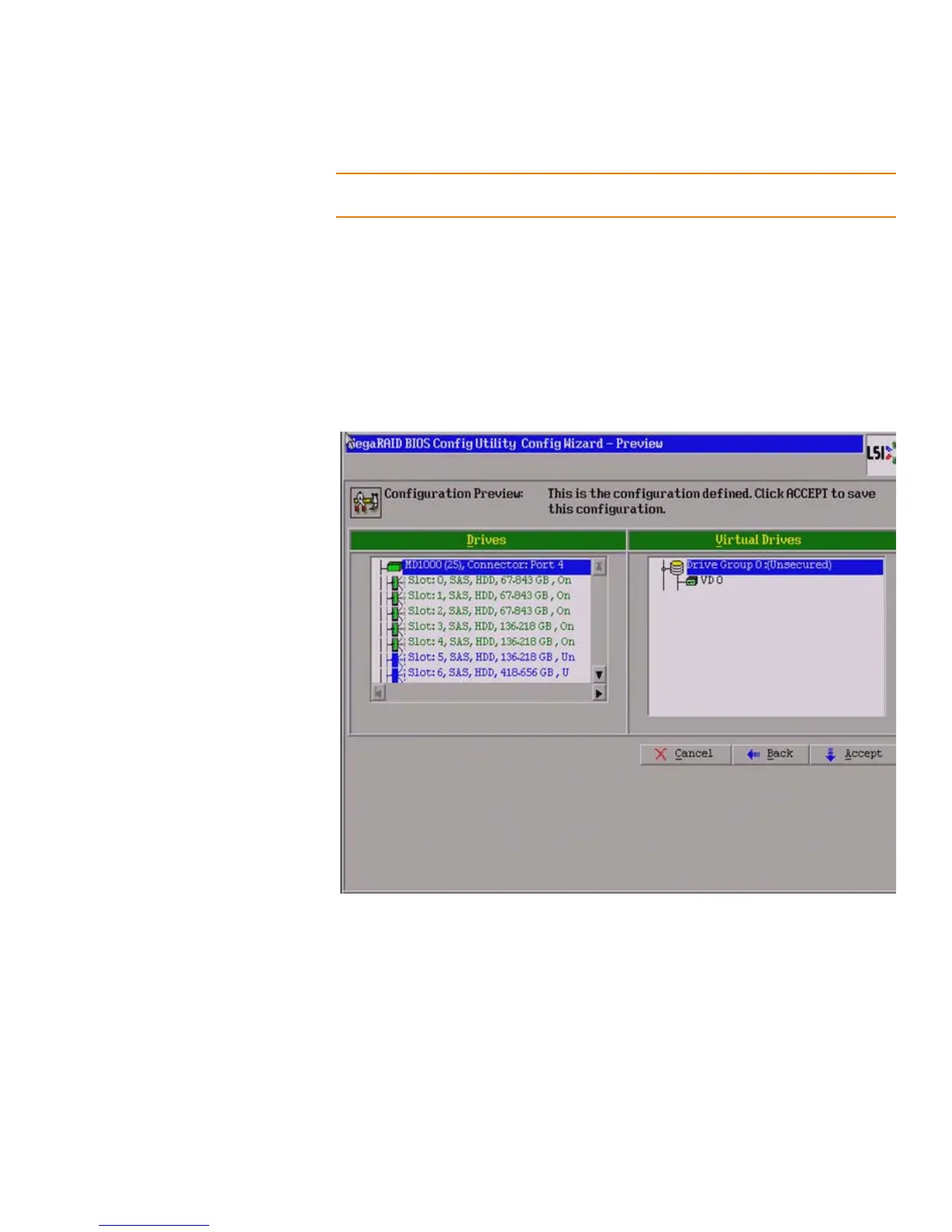

Figure 43: RAID 6 Configuration Preview
5. Check the information in the configuration preview.
6. If the virtual drive configuration is acceptable, click Accept to save the
configuration. Otherwise, click Back to return to the previous screens and change
the configuration.
7. If you accept the configuration, click Ye s at the prompt to save the configuration.
The WebBIOS main menu appears.
