MegaRAID SAS Software User GuideChapter 4: WebBIOS Configuration Utility
| Creating a Storage Configuration
12. Click Next.
The Span Definition screen appears, as shown in Figure49.
This screen displays the drive group holes you can select to add to a span.

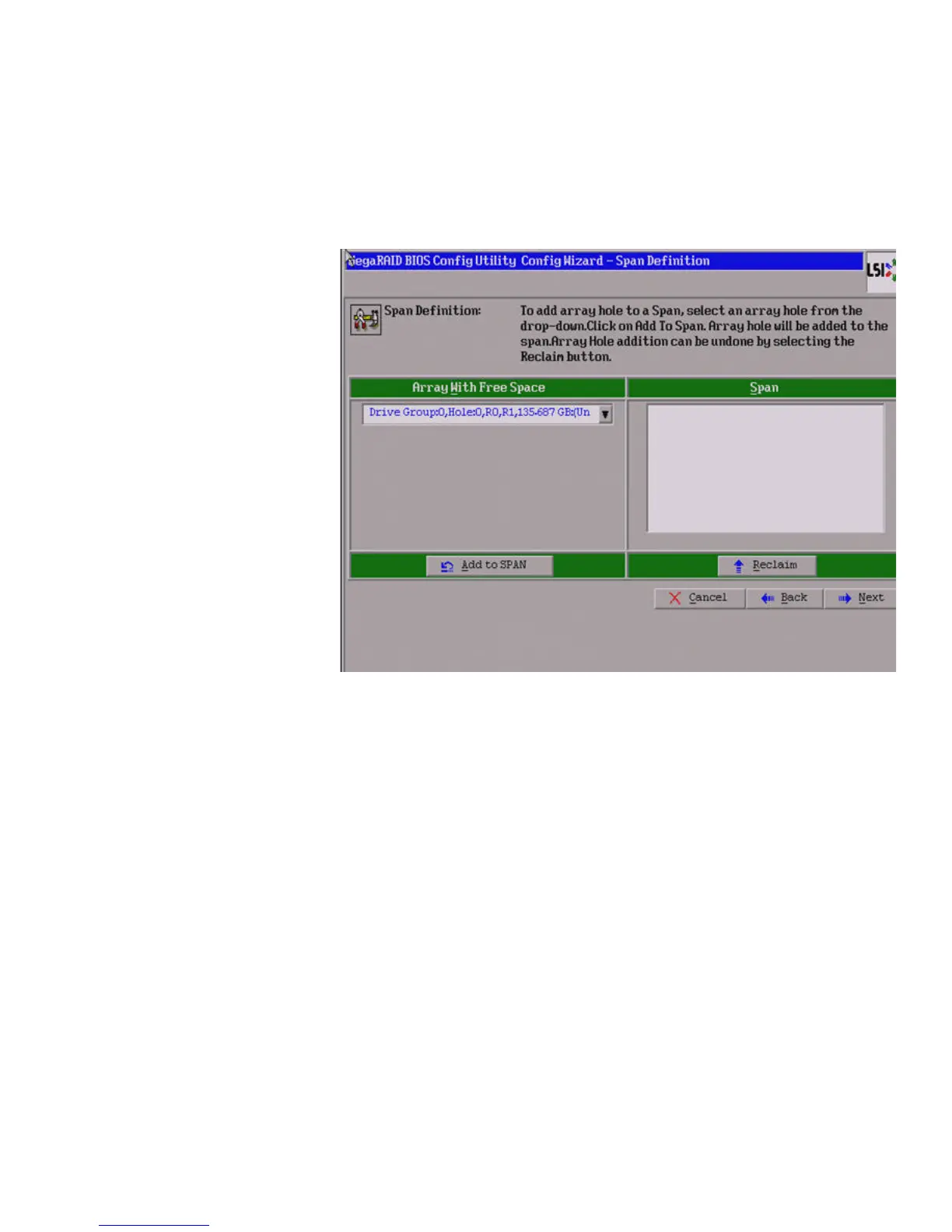

Figure 49: WebBIOS Span Definition Screen
13. Under the heading Array With Free Space, hold <Ctrl> while you select a drive
group with two drives, and click Add to SPAN.
The drive group you select displays in the right frame under the heading Span.
14. Hold <Ctrl> while you select a second drive group with two drives, and click Add to
SPAN.
Both drive groups display in the right frame under Span.
15. If there are additional drive groups with two drives each, you can add them to the
virtual drive.
16. Click Next.
The Virtual Drive Definition screen appears, as shown in Figure50. You use this
screen to select the RAID level, strip size, read policy, and other attributes for the
new virtual drives.
17. Hold <Ctrl> while you select two drive groups with two drives in the Configuration
panel on the right.
