ADF hinge removal
Note: The removal shown is for the left ADF hinge. The right ADF hinge is removed in a similar manner.
1 Remove the ADF assembly. See “ADF unit removal” on page 388.

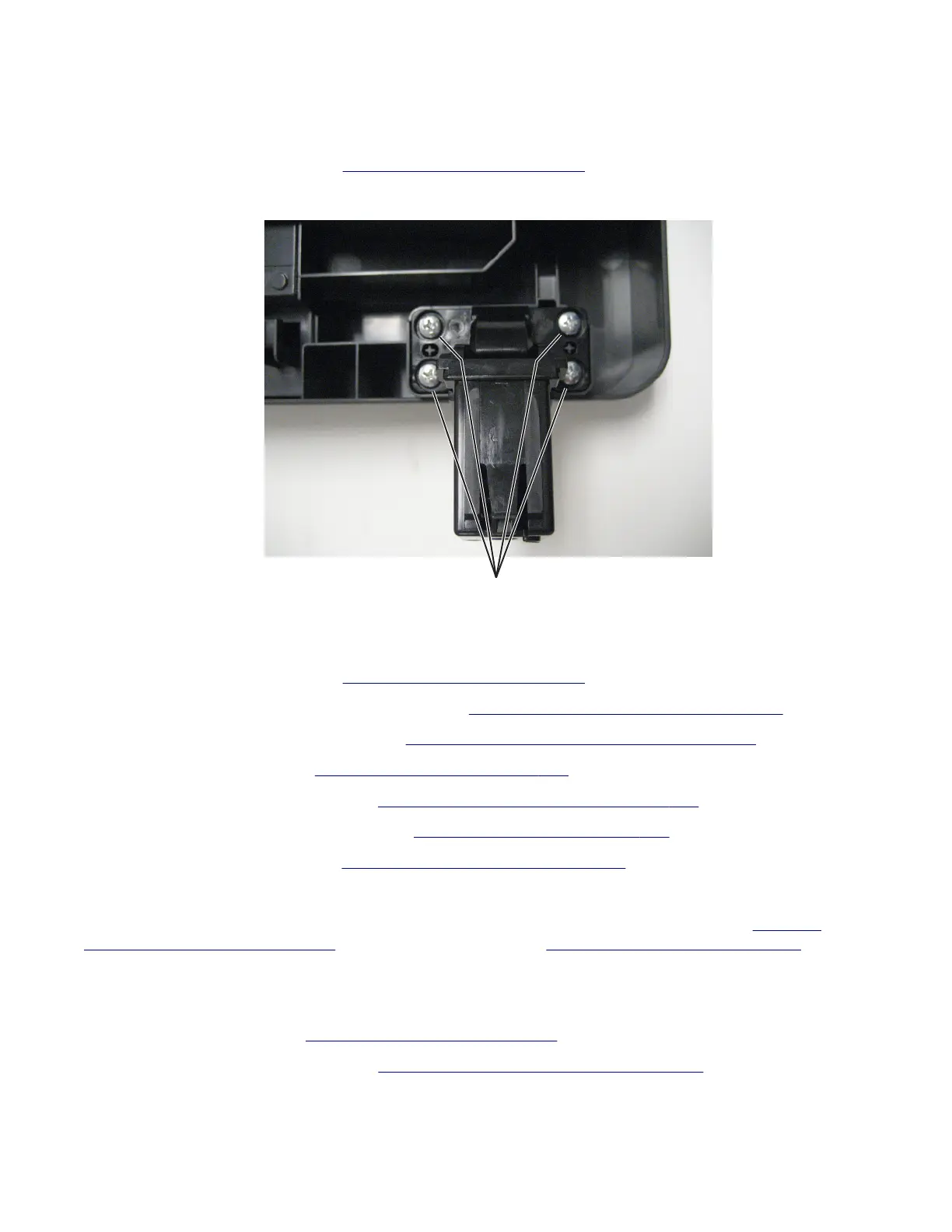

2 Remove the four screws (A) securing the ADF hinge to the ADF assembly.
A
Flatbed assembly removal
1 Remove the ADF assembly. See “ADF unit removal” on page 388.
2 Remove the scanner assembly from the MFP. See “Scanner assembly removal” on page 390.
3 Remove the control panel assembly. See “Control panel assembly removal” on page 315.
4 Remove the ADF cable. See “ADF cable removal” on page 395.
5 Remove the USB wireless cable. See “USB wireless cable removal” on page 396.
6 Remove the control panel USB cable. See “USB cable removal” on page 395.
7 Remove the speaker cable. See “Speaker cable removal” on page 399.
8 Remove the wireless control panel cover.
Installation note: After the new
flatbed
is installed, perform scanner manual registration, see
“Scanner
manual registration” on page 244 and scanner calibration, see “Scanner calibration” on page 221.
Control panel ribbon cable removal
1 Remove the left cover. See “Left cover removal” on page 279.
2 Remove the scanner front cover. See “Scanner front cover removal” on page 386.
7015
Parts removal
398
