This chapter introduces you to the Linksys Voice System (LVS) by describing the components
and presenting several deployment scenarios.
• ”Introduction to the Linksys Voice System,” on page 13
• ”Deployment Scenarios,” on page 15
• ”Initial Installation, and Configuration,” on page 20
Introduction to the Linksys Voice System
The LVS is an affordable and feature-rich voice over IP (VoIP) telephone system that is designed
especially for small businesses. The LVS uses standard TCP/IP protocols and can provide global
connectivity through any Internet Telephony Service Provider (ITSP) that supports Session
Initiation Protocol (SIP).
At minimum, the LVS includes a SPA9000 IP PBX and one or more SPA900 series IP phones.
These devices are connected through a switch to a local area network. With an Internet
connection, the LVS can subscribe to ITSP services to take advantage of low calling rates. With
the optional SPA400, the LVS can connect to the Public Switched Telephone Network (PSTN) to
support legacy phone lines. Figure 1-1 illustrates the LVS Solution in a typical deployment.

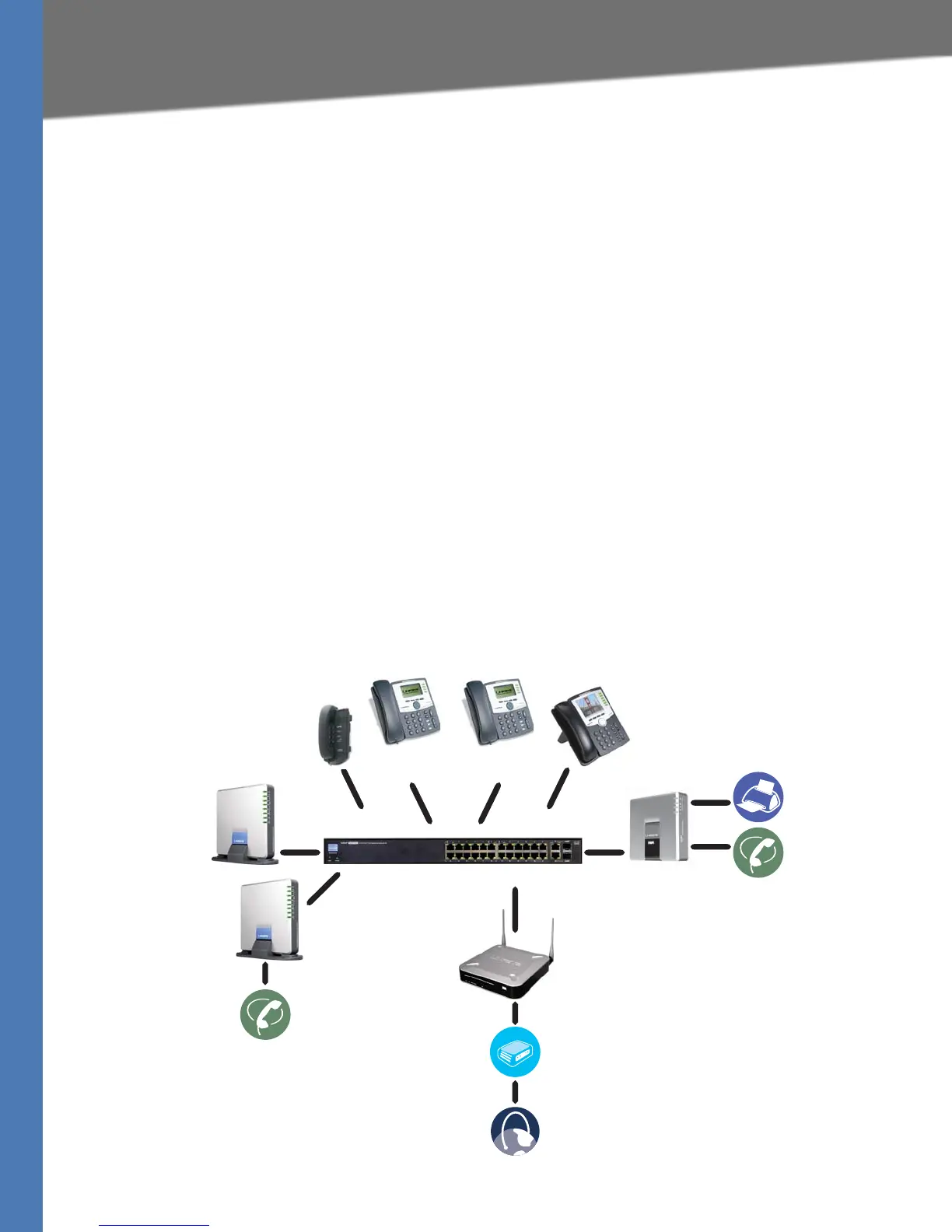

Figure 1-1 The Linksys Voice System (LVS) with the SPA9000 and SPA400
SPA9xx IP Phones
SLM224P Switch SPA9000 IP PBX
WRV200 Router
Internet
Integrated
Access Device
Analog
Phone Lines
SPA400
for Voice Mail
SPA400
for PSTN Access
Analog Phones
or Fax Machines

Linksys SPA9000 Specifications

Physical Interfaces

Ethernet ports	2 10/100BaseT RJ-45
Phone ports	2 RJ-11 FXS
Ring voltage	40-55 VRMS
Ring frequency	10 Hz - 40 Hz
Maximum ringer load	3 REN

Power

On-hook voltage	-50 V NOMINAL
Off-hook current	25 mA min
Terminating impedance	Configurable, including 600 ohms
