Configuring a Streaming Audio Server
Configuring Music on Hold
On SPA1:
SAS Enable[1] = no
MOH Server [1] = 1002
SAS Enable[2] = yes
On SPA2:
SAS Enable[1] = no
MOH Server [1] = 1002
SAS Enable[2] = no
MOH Server [2] = 1002
Configuring the Streaming Audio Server
The following provides step-by-step procedures for implementing a SAS with an external music
source.
1. Connect an RJ-11 adapter between the music source (a CD player or iPod, for example) and
an FXS port on the SPA9000 (Phone 1 or Phone 2).
2. Connect to the SPA9000 administration web server, and choose Admin access with
Advanced settings. (See ”Connecting to the SPA9000 Administration Web Server,” on
page 24).
3. Configure the FXS port:
a. Click Voice tab > FXS N, where N represents the SPA9000 phone port number where
you connected the RJ-11 adapter.
b. Enter the following settings:
– Display Name: Enter an extension number of name for the FXS 1 port, such as
Receptionist Area Fax Machine.
– User ID: Enter a three- to four-digit extension number that is not is use by other
extension.
c. Scroll down to the Streaming Audio Server (SAS) section.
d. From the SAS Enable drop-down list, choose yes.

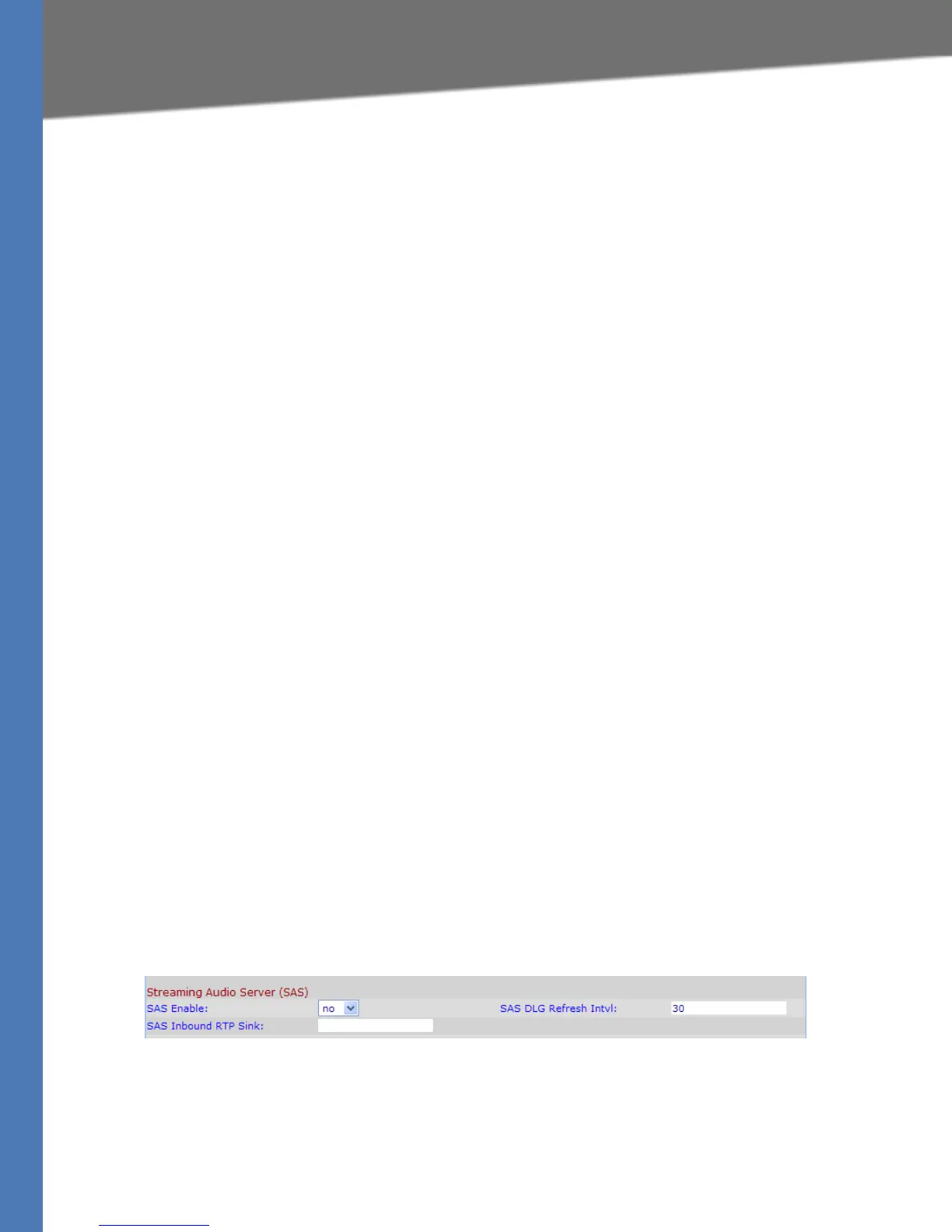

Voice > FXS N > Streaming Audio Server
4. Click Submit All Changes.

Linksys SPA9000 Specifications

Physical Interfaces

Ethernet ports	2 10/100BaseT RJ-45
Phone ports	2 RJ-11 FXS
Ring voltage	40-55 VRMS
Ring frequency	10 Hz - 40 Hz
Maximum ringer load	3 REN

Power

On-hook voltage	-50 V NOMINAL
Off-hook current	25 mA min
Terminating impedance	Configurable, including 600 ohms
