Linksys SPA9000 Administration Guide

Linksys Voice System Administration Guide 31
Configuring Basic Settings
Basic Administration of the SPA9000

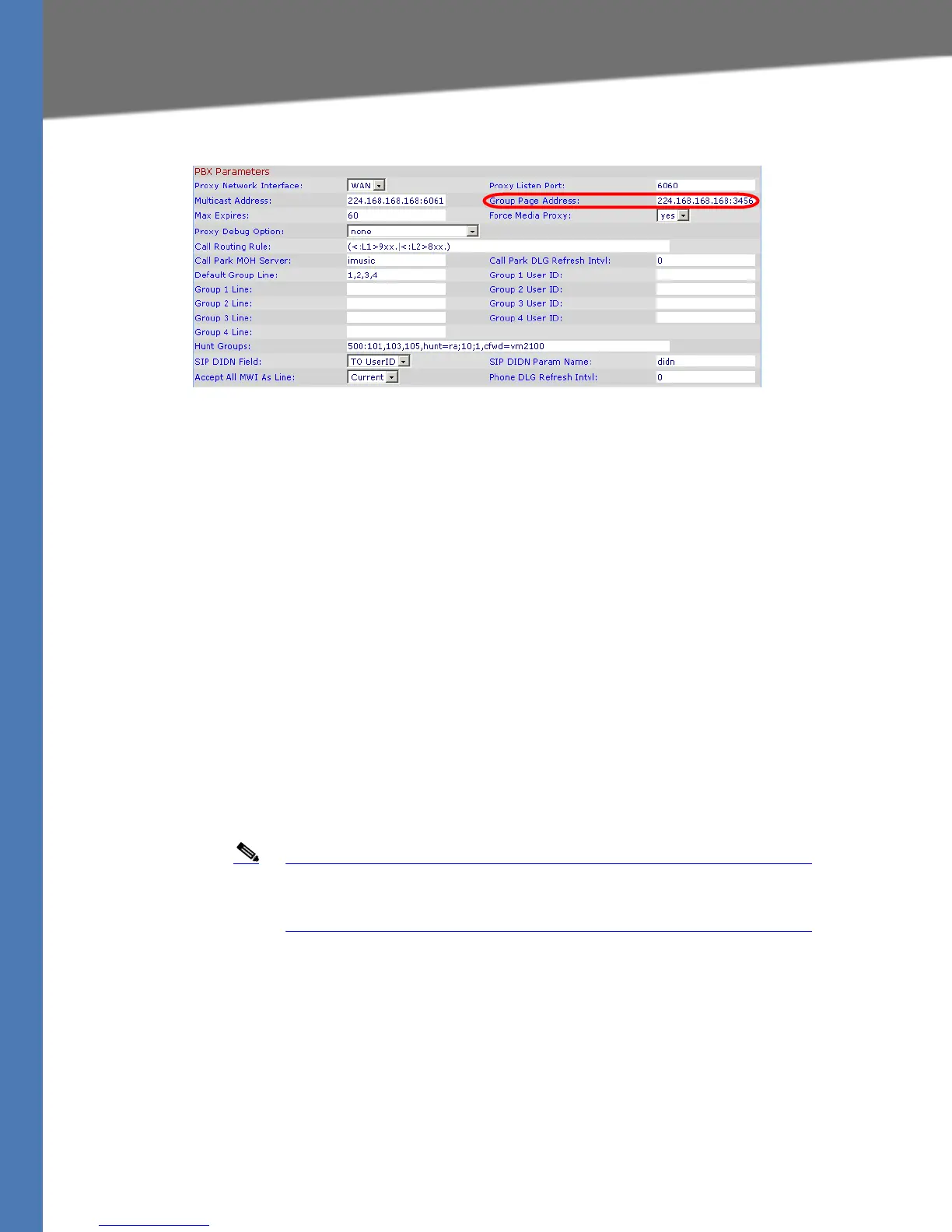

4. Enter the correct multicast address in the Group Page Address field.
NOTE: The default value is 224.168.168.168:34567.
5. Click Submit All Changes.
Collecting System Logs and Debug Information
If you are working with an ITSP that needs more information to configure interoperability, you
can collect system logs and debug information for the SPA9000. You can send these logs to the
ITSP for their use.
Requirements:
• You need a PC that is on the same subnetwork as the SPA9000, to capture the log files.
This PC needs to be running a syslog daemon. Enter the IP address of this PC on the
Voice > System page, in the Syslog Server and Debug Server fields.
• If you are interested in working with these logs yourself, you will need to use an
application that reads syslogs. Linksys partners can download a syslog server tool
(slogsrv.exe) from the Linksys Partner Connection. (VARs, see Product Utilities > Linksys
Voice System > SPA Utilities > Syslog Server for SPA Devices. SPs, see Technical Tools >
SPA Utilities > Syslog Server for SPA Devices.)
Note As a best practice, enable logging only when needed, and disable
logging when you finish the investigation. Logging information can
impact system performance.
1. Connect to the SPA9000 administration web server, and choose Admin access with
Advanced settings. (See ”Connecting to the SPA9000 Administration Web Server,” on
page 24).
2. Click Voice tab > System.

Linksys SPA9000 Specifications

Physical Interfaces

Ethernet ports	2 10/100BaseT RJ-45
Phone ports	2 RJ-11 FXS
Ring voltage	40-55 VRMS
Ring frequency	10 Hz - 40 Hz
Maximum ringer load	3 REN

Power

On-hook voltage	-50 V NOMINAL
Off-hook current	25 mA min
Terminating impedance	Configurable, including 600 ohms
