Linksys SPA9000 Administration Guide

Linksys Voice System Administration Guide 83
Managing Access to the SPA400 Web-Based Configuration Utility
Administering the SPA400 and Voice Mail Service
Managing Access to the SPA400 Web-Based Configuration
Utility
One log on can be established for access to the SPA400 web-based configuration utility. The
default username of Admin can be changed, and a password can be entered.
1. Connect to the SPA400 administration web server. (See ”Connecting to the SPA400
Administration Web Server,” on page 80.)
2. Click Administration tab > Management.

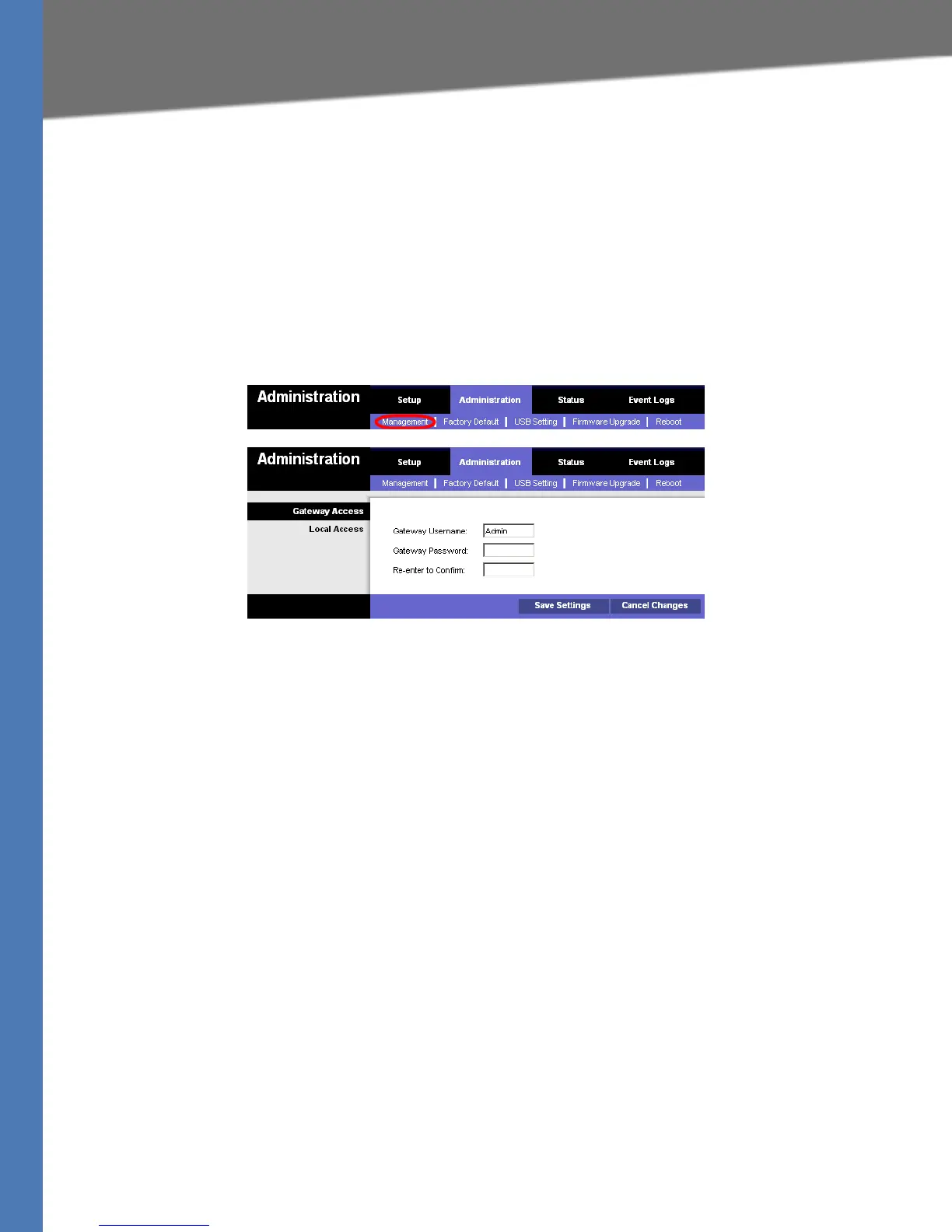

SPA400 Administration > Management
3. Proceed as needed:
• Gateway Username: Type the desired username in this field, up to 32 characters.
• Gateway Password: Type the password.
• Retype to Confirm: Type the password again. Both entries must match exactly.
4. Click Save Settings.
5. To restart the SPA400, complete the following steps:
a. Click Administration tab > Reboot.
b. Click the Restart System button.
c. When the confirmation message appears, click OK. The SPA400 reboots.
d. When the Reboot OK. Go to Setup page? message appears, click OK and wait for 60
seconds (the time required for the SPA9000 to re-register with SPA400).

Linksys SPA9000 Specifications

Physical Interfaces

Ethernet ports	2 10/100BaseT RJ-45
Phone ports	2 RJ-11 FXS
Ring voltage	40-55 VRMS
Ring frequency	10 Hz - 40 Hz
Maximum ringer load	3 REN

Power

On-hook voltage	-50 V NOMINAL
Off-hook current	25 mA min
Terminating impedance	Configurable, including 600 ohms
