Linksys SPA9000 Administration Guide

Linksys Voice System Administration Guide 96
Enabling Debugging on the SPA400
Administering the SPA400 and Voice Mail Service

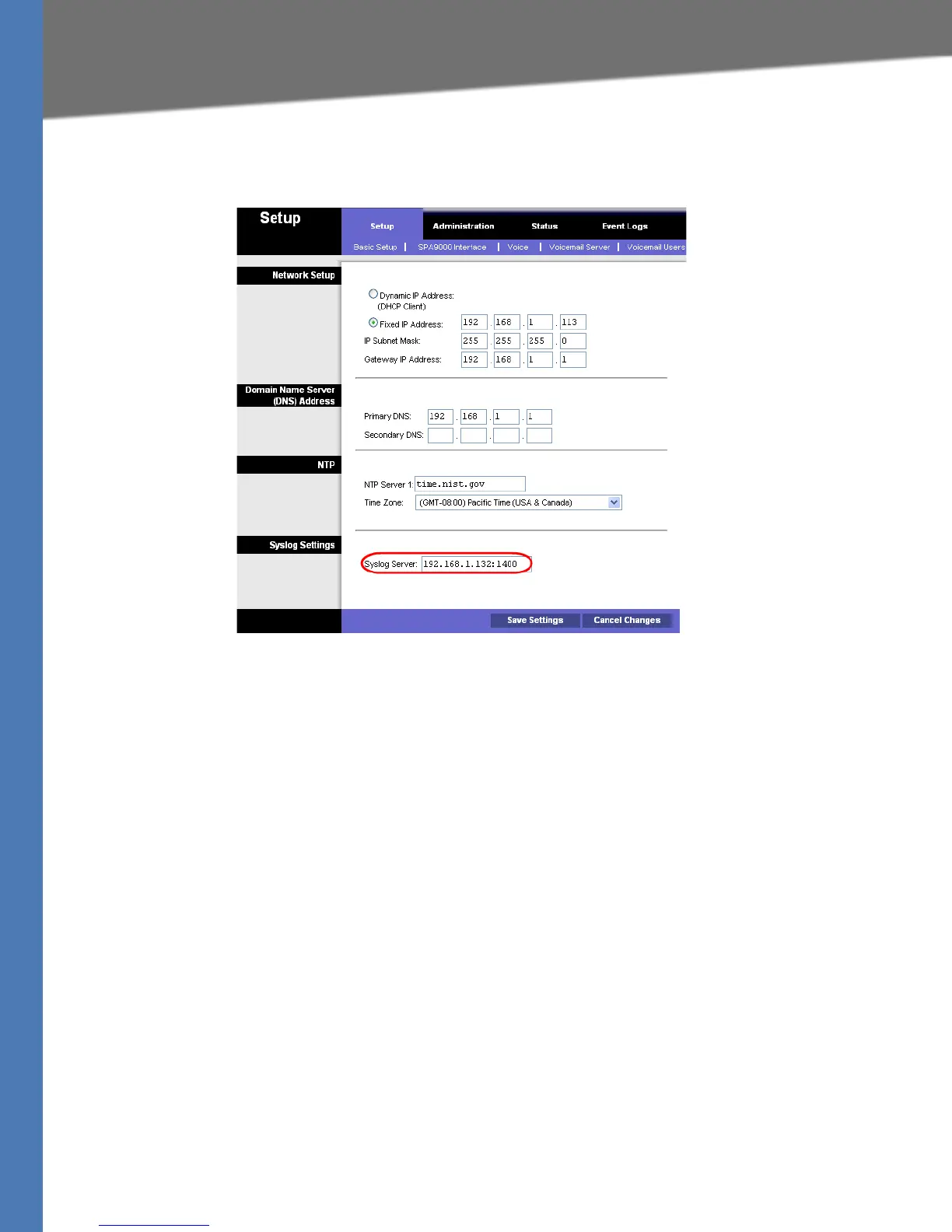

6. In the Syslog Settings section, enter the IP address of the Syslog Server, which normally is a
PC on the same network as the SPA400.
7. Start a command prompt on the PC, and run the system logging software.
8. Run the scenario that causes the problem and when done, press CTRL+C in the command
window to stop the logs.
9. When you are finished collecting logs, return to the Event Logs page and reset the logs to
Off.

Linksys SPA9000 Specifications

Physical Interfaces

Ethernet ports	2 10/100BaseT RJ-45
Phone ports	2 RJ-11 FXS
Ring voltage	40-55 VRMS
Ring frequency	10 Hz - 40 Hz
Maximum ringer load	3 REN

Power

On-hook voltage	-50 V NOMINAL
Off-hook current	25 mA min
Terminating impedance	Configurable, including 600 ohms
