Lucent Technologies DDM-2000 OC-3 User Manual

DLP-523: Detailed Level Procedure 363-206-285
Page 21 of 30 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER
36.
NOTE:
If line code (lc) parameters are generally set using the set-t1:
command, the circuit pack switch settings will have no effect. The
rtrv-t1: command may be used to check line code settings.
Refer to Table K and Figure 5 and set the line code option switches, if required.

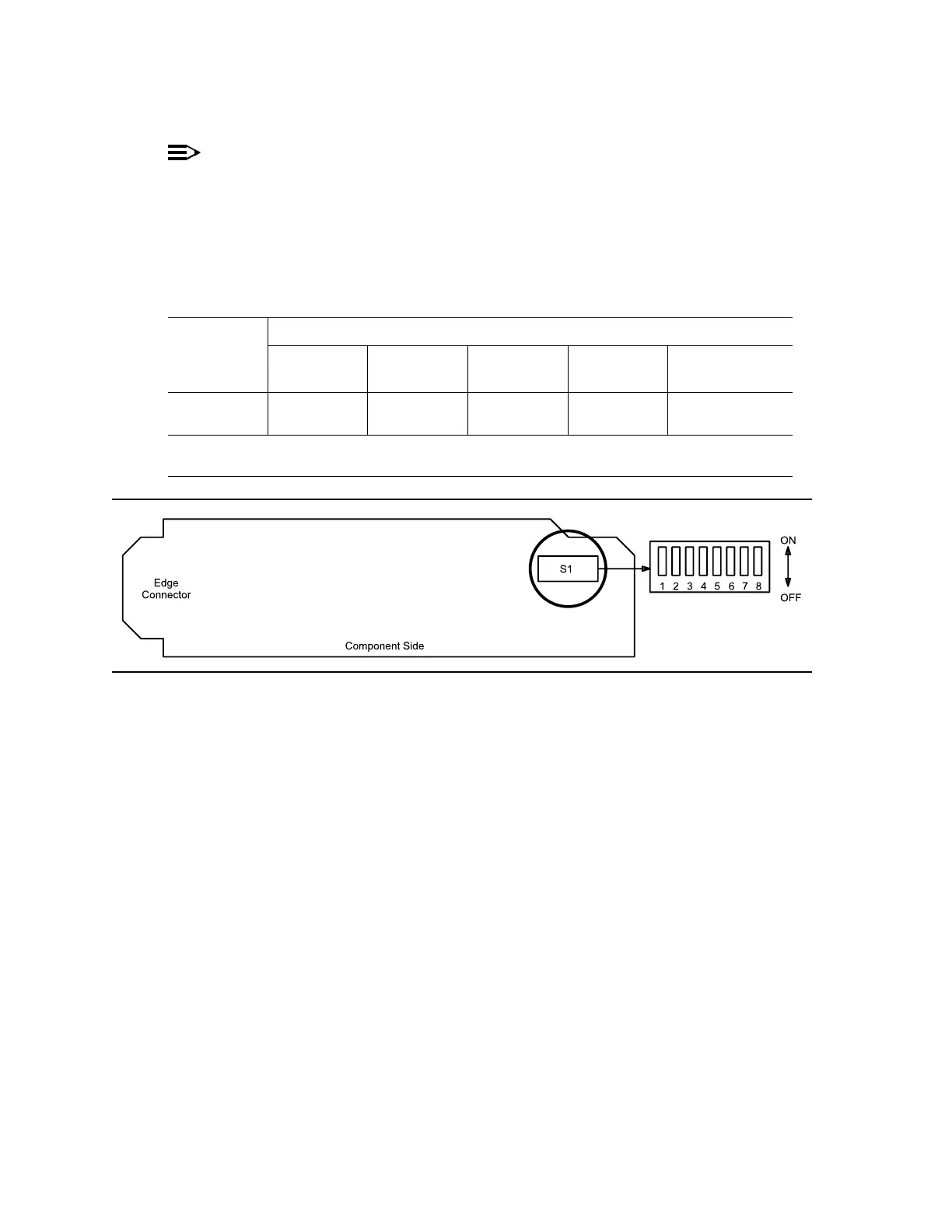

Figure 5 – DS1/DS1PM Option Settings
Table K – DS1/DS1PM Line Code Settings
Line Code
Format
Switch S1 Settings
S1-4
(Port 1)
S1-5
(Port 2)
S1-6
(Port 3)
S1-7
(Port 4)
S1-8 Unused
(Note)
B8ZSOFFOFFOFFOFFOFF
AMIONONONON
Note: Switch 1, section 8 (S1-8)ontheBBF1/BBF1B DS1 is unused and ignored by the
system. On the BBF3 DS1PM, S1-8 must be set to OFF.
