M A E D A Mini-Crawler Crane Section 4 – OUTRIGGER STOWING
3/2019 MC305C-3 4-47

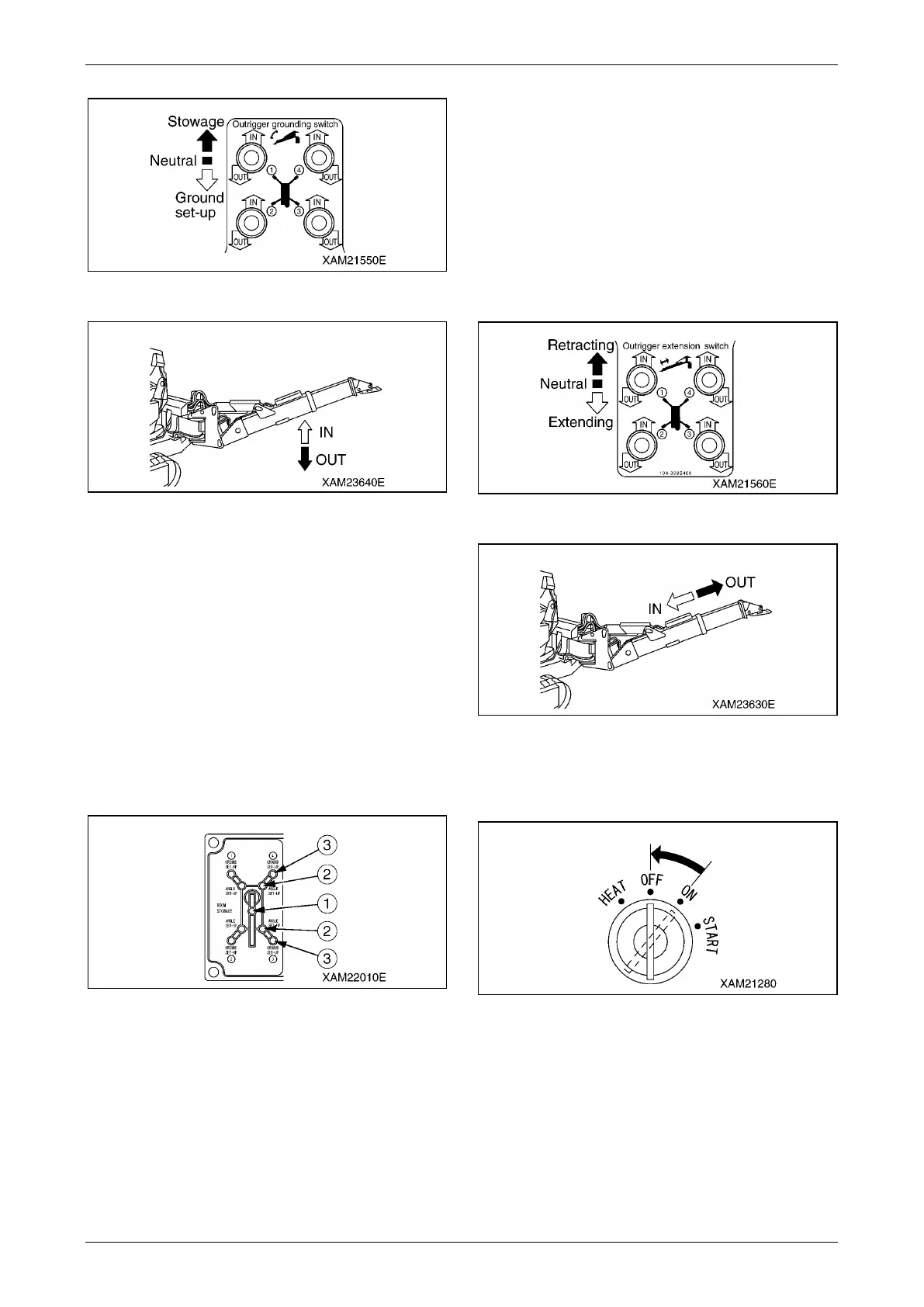

Fig. 4-120
Fig. 4-121
8. When the left and right rubber tracks are
completely set on the ground, push down
again an outrigger grounding switch or two of
them at the same time to the "IN" (upward)
side.
When the setting cylinder completely retracts
and the top box goes up to the upper limit,
release your finger from the outrigger
grounding switch.
9. Verify that the four outrigger grounding lamps
(3) on the outrigger display are flashing in
red.
Fig. 4-122
NOTICE: On the outrigger display, the boom
stowing lamp (1) (green) is illuminated and four
outrigger extension lamps (2) and four outrigger
grounding lamps (3) are flashing in red.
10. Push down an outrigger extension switch or
two of them at the same time to the "IN"
(upward) side.
When the extension cylinder fully retracts and
the inner box is at its shortest, return the
switch to the "Neutral" position.
Operate the remaining switches in the same
way and make the inner box of the four
outriggers to their shortest. Return the switch
to the "Neutral" position.
Fig. 4-123
Fig. 4-124
11. Turn the starter switch to the "OFF" position.
The engine stops.
Fig. 4-125
