Section 4 – OUTRIGGER STOWING Mini-Crawler Crane M A E D A
4-48 3/2019 MC305C-3
62B61BTasks to Be Performed upon
Engine Stop

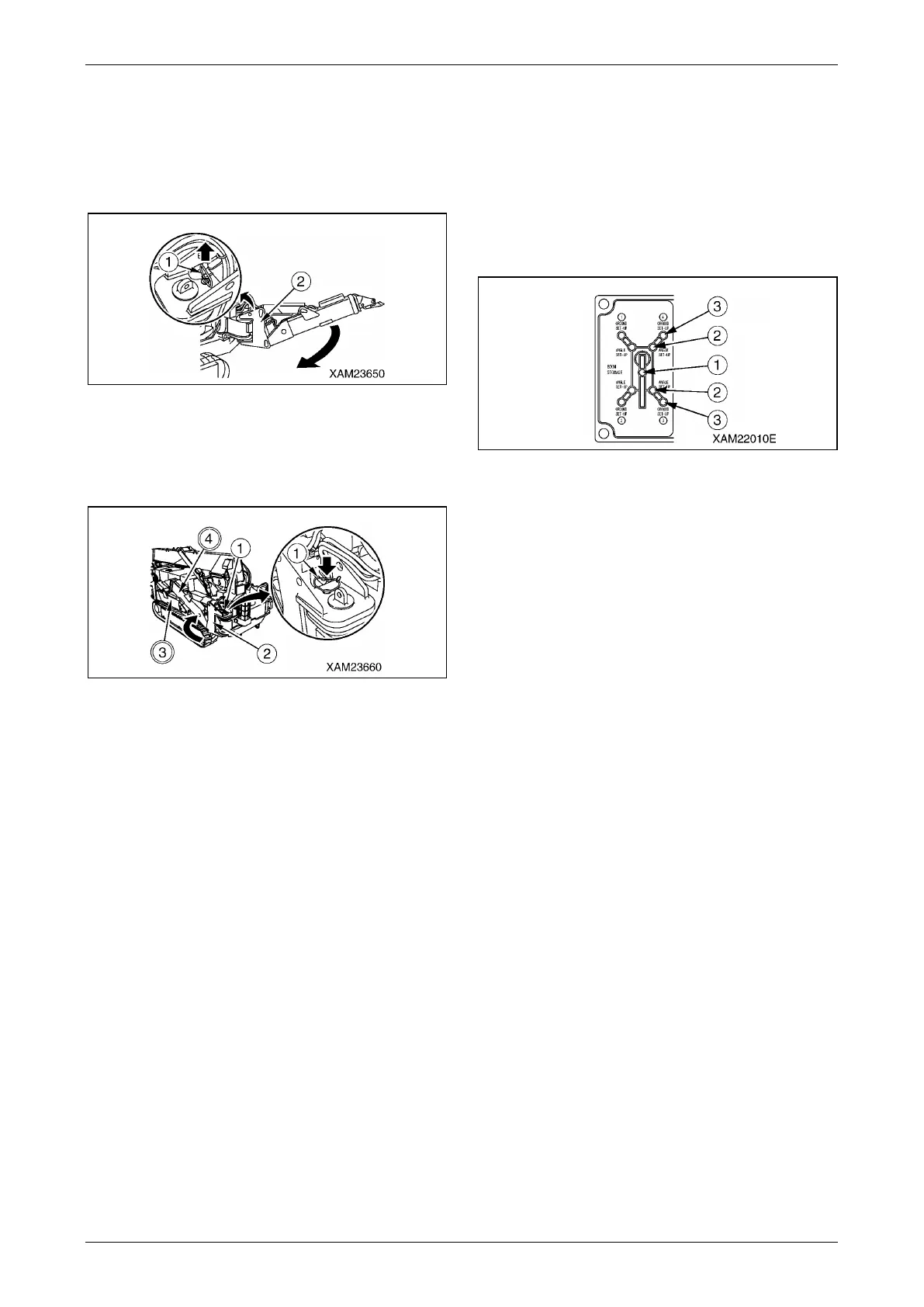

1. Pull the position pin (1) out of the rotary (2)
and rotate the rotary inward.
Fig. 4-126
2. Insert the position pin (1) to the end at the
position where the pin holes are aligned after
rotating the rotary (2) inward.
Fig. 4-127
NOTICE: The position pin (1) has a wire to
prevent the loss of the pin.
3. Stow the other three outriggers in the same
way.
NOTICE: After stowing the outriggers, verify that
the position pin (1) is securely inserted.
4. Verify that the four outrigger extension lamps
(2) on the outrigger display went off.
Fig. 4-128
NOTICE: On the outrigger display, the boom
stowing lamp (1) (green) is illuminated and four
outrigger extension lamps (2) and four outrigger
grounding lamps (3) are flashing in red.
