Section 4 – REMOTE CONTROL SYSTEM VERIFICATIONS Mini-Crawler Crane M A E D A
4-98 3/2019 MC305C-3

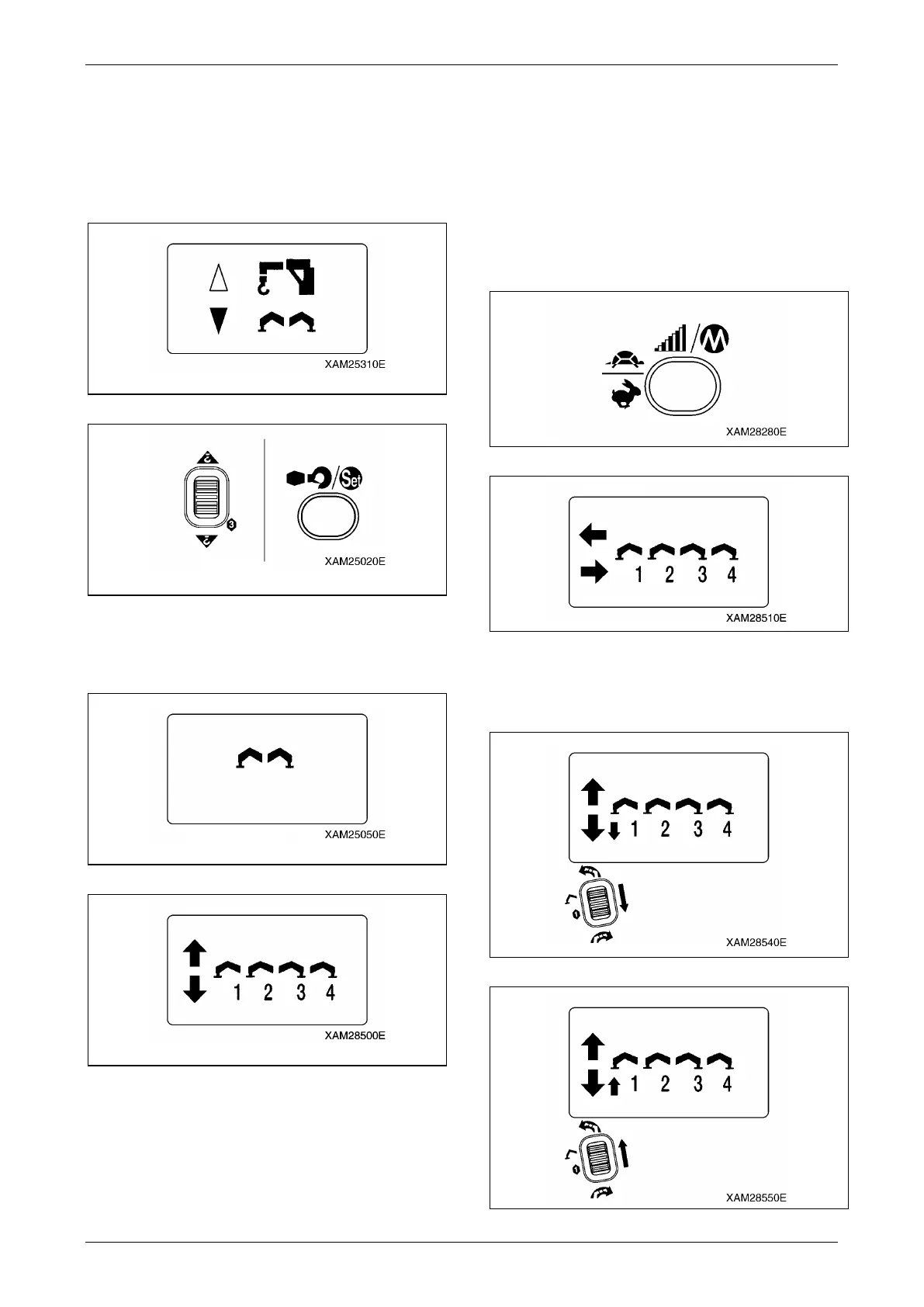

4. When the LCD provides the screen for
selecting "CRANE MODE" or
"OUTRIGGER MODE, use the Hook raising
and lowering lever to set the cursor (▼) to
the side of "Outrigger" then push the Hook
stow/Setting button．
Fig. 4-274
Fig. 4-275
Here, confirm that the "Outrigger mark" is
exhibited, then it enters into the "Ground setting
mode", soon after.
Fig. 4-276
Fig. 4-277
5. To shift to "Extension mode", push the
Speed/Mode button, while the LCD screen
shows the "Ground setting mode".
Here, confirm that the "Outrigger Extension
mode" is exhibited.
NOTICE: Switching between "Outrigger
Extension mode" and "Outrigger Ground setting
mode" is alternately by each push of the
Speed/Mode button.
Fig. 4-278
Fig. 4-279
6. Manipulate each operation lever and verify
that each indication in the LCD screen is
correct.
Fig. 4-280
Fig. 4-281
