OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-48 Published 02-21-2019, Control # 611-05
Superstructure lock menu

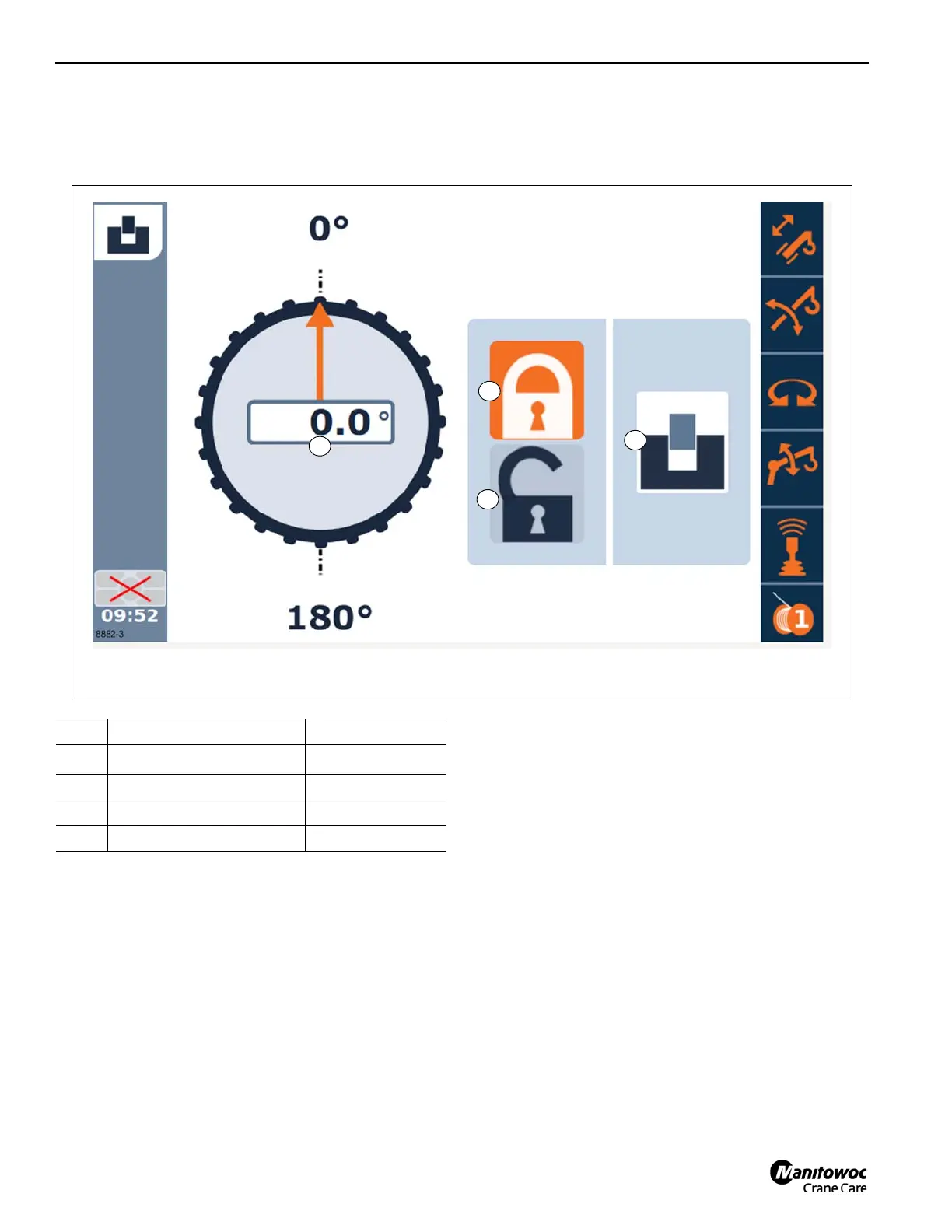

The superstructure lock menu is used to lock or unlock the
360 degree swing lock. This screen provides indication of the
swing angle (1) the swing lock status (locked/unlocked/
intermediate/error) and provides selections (2 and 3) to
actuate the lock.
Item Description Refer to
1
Current swing angle
2 Lock
3 Unlock
4 Superstructure lock status
FIGURE 3-45
8882-3
1
2
3
4
