TMS9000-2 OPERATOR MANUAL OPERATING CONTROLS AND INDICATORS
3

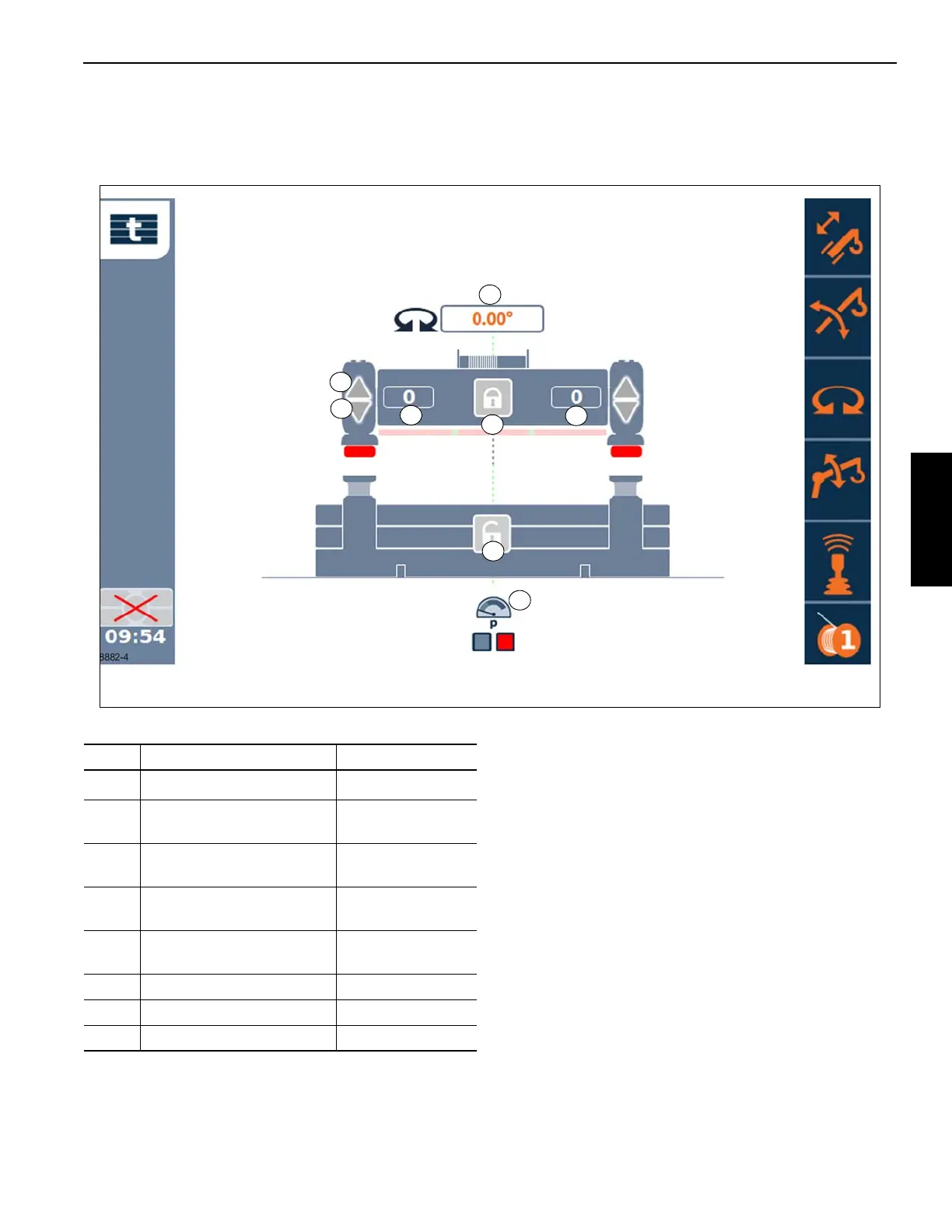

Counterweight menu
The counterweight menu shows the status of the swing
angle, counterweight cylinders and pre-tensioning pressure
(error menu shown).
FIGURE 3-46
8882-4
1
4
2
3
6
7
8
5
Item Description Refer to
1
Current swing angle
page 3-134
2
Retracting the lifting
cylinders
page 3-97
3
Extending the lifting
cylinders
page 3-97
4
Left Counterweight cylinder
length percentage
5
Right Counterweight
cylinder length percentage
6 Lock the counterweights page 3-96
7 Unlock the counterweights page 3-96
8 Pre-tensioning pressure page 3-97
