Manitowoc Grove TMS9000-2 Series User Manual

OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-126 Published 02-21-2019, Control # 611-05

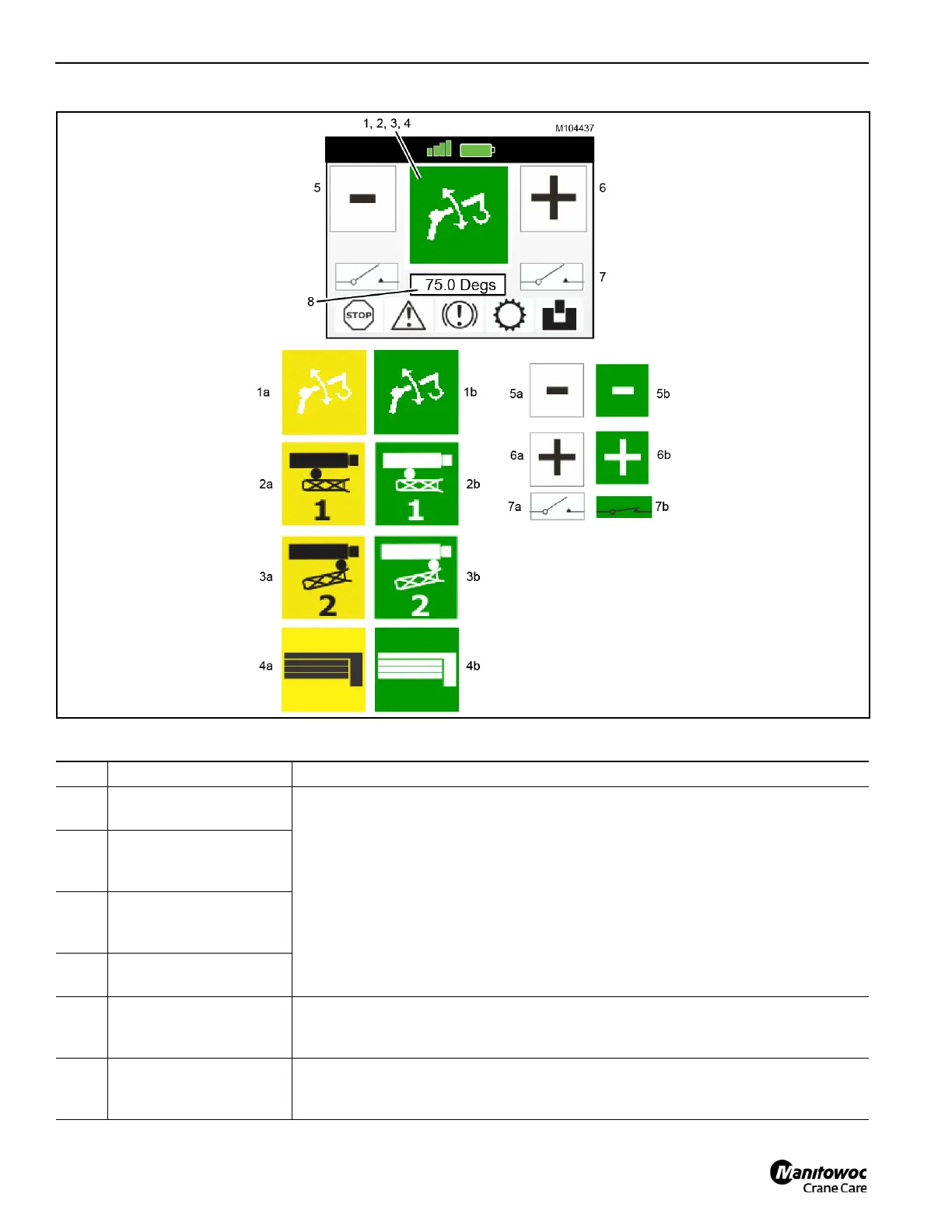

Table 3-11 Option Function Screen
FIGURE 3-179
Item Indicator Name Description
1
Luffing Boom Extension
Function
a - Yellow = function cannot be operated due to a crane fault
b - Green = function can be operated
2
Rear Boom Extension
Stowage Actuator
Function
3
Front Boom Extension
Stowage Actuator
Function
4
Counterweight (Ctwt)
Function
5
Retract Actuator
Lower Cwt Cylinders
Lower Boom Extension
5a - White = operation cannot be performed until either enable button is held down
5b - Green = operation can be performed with left motion button
6
Extend Actuator
Raise Cwt Cylinders
Raise Boom Extension
6a - White = operation cannot be performed until either enable button is held down
6b - Green = operation can be performed with right motion button
