SET-UP AND INSTALLATION TMS9000-2 OPERATOR MANUAL
6-32
Published 02-21-2019, Control # 611-05
Reeving the hoist rope

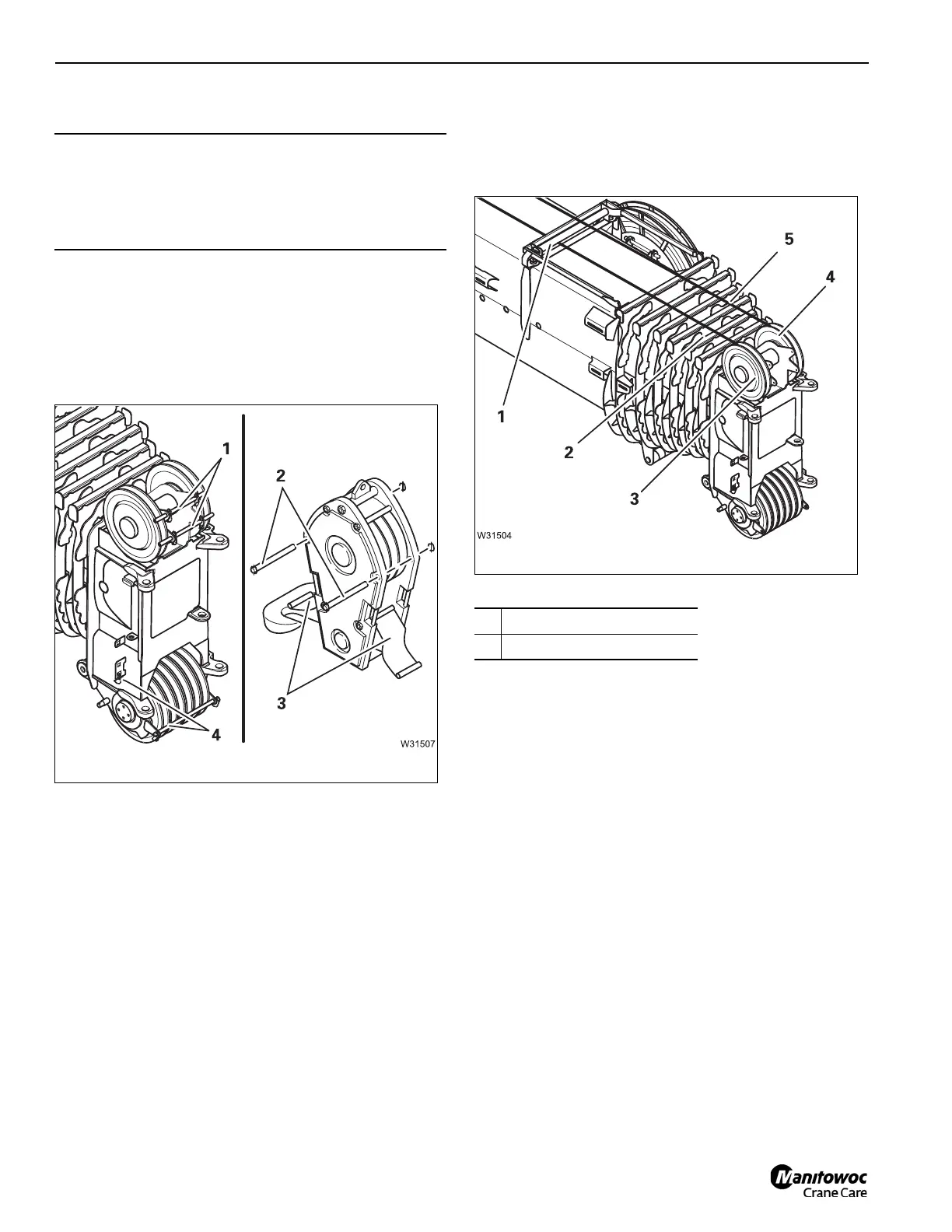

Opening the hook block
• Pull out the rods (2, Figure 6-46).
• Fold down the plates (3).
Positioning the hoist rope
• Pull out the rods (1) and (4).
• Feed the main hoist rope (2, Figure 6-47) under the rope
grab (1).
If two hoist ropes are reeved, you must feed the auxiliary
hoist rope (5) over the rope grab.
• Feed the main hoist rope to the head sheave (3).
• Feed the auxiliary hoist rope to the head sheave (4).
Use the rope grab also when working with the lattice
extension.
Reeving the hoist rope
• Guide the hoist rope over the upper head sheave (1,
Figure 6-48) to the lower head sheave (2).
• Guide the hoist rope from the front around the outer
pulley (3) of the hook block, upwards to the main boom
head.
• Guide the hoist rope from the rear over the next required
head sheave (4), etc.
• Reeve the hoist rope with the required number of lines.
Possible reevings, refer to Possible reevings on the main
boom, page 6-6.
CAUTION
Wire Rope Damage!
Ensure that the hookblock being used has sufficient
overhaul weight to prevent the hoist rope from becoming
slack when operating with no load on the hook.
A for the main hoist rope
B for the auxiliary hoist rope
