• Plug the anti-two block switch (3, Figure 6-57) onto the
bracket (2) and secure it with the retaining pin.
• Lay the cable (4) in such a way that it will not be
damaged during crane operation, and insert the anti-two
block switch into the socket (1).
If only one anti-two block switch has been installed
• Cover the unused socket with the protective cap (2,
Figure 6-58).
• Check whether the lock on the used anti-two block
switch, e.g. (1), is released, refer to Removing the lock,
page 6-40.
If two anti-two block switches have been installed
• Lock the anti-two block switch to which no anti-two block
switch weight has been attached.
If the anti-two block switch weight has, for example, been
attached to the left anti-two block switch (1, Figure 6-59), you
must lock the right anti-two block switch (2), refer to Locking,
page 6-40.
Otherwise the movements Raise hosting gear, Telescope out
and Lower the boom will be locked.

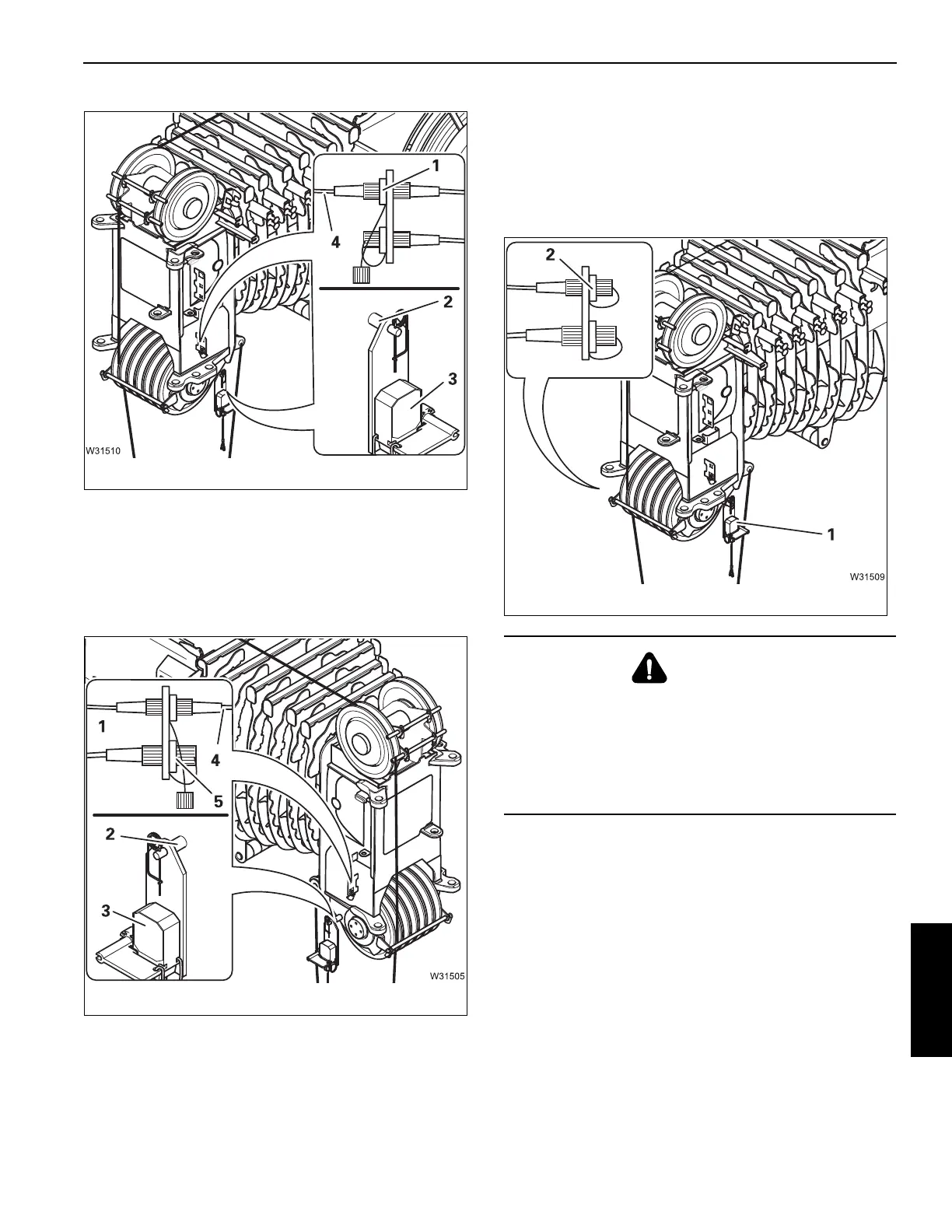

FIGURE 6-56
8851-33
FIGURE 6-57
8851-34
DANGER
Two Block Hazard!
Do not operate the crane with the anti-two block switch
locked in the travel position.
Failure to unlock the anti-two block switch will prevent the
system from working correctly and could result in Death or
Serious injury if the rope breaks.
FIGURE 6-58
8851-35
