TMS9000-2 OPERATOR MANUAL SET-UP AND INSTALLATION
6
Published 02-21-2019, Control # 611-05
Removing the anti-two block switch weight
• Pull the safety pin (1, Figure 6-62) out and fold the two
halves of the weight apart.
• Remove the halves of the weight from the rope line.
• Pull the safety pin (1) out, fold the two halves of the
weight back together and let the safety pin engage.
• Remove the anti-two block switch weight (2).
• Remove the anti-two block switch weight on the other
side too, if necessary.
Removing the left anti-two block switch
• Pull out the plug and close the socket with the protective
cap (1, Figure 6-63).
• Remove the anti-two block switch (3) from the bracket
(2)
• Attach the retaining pin (4) to the anti-two block switch.
Removing the right anti-two block switch
• Pull out the plug and close the socket with the protective
cap (1, Figure 6-64).
• Remove the anti-two block switch (4) from the bracket
(2)
• Attach the retaining pin (3) to the anti-two block switch.

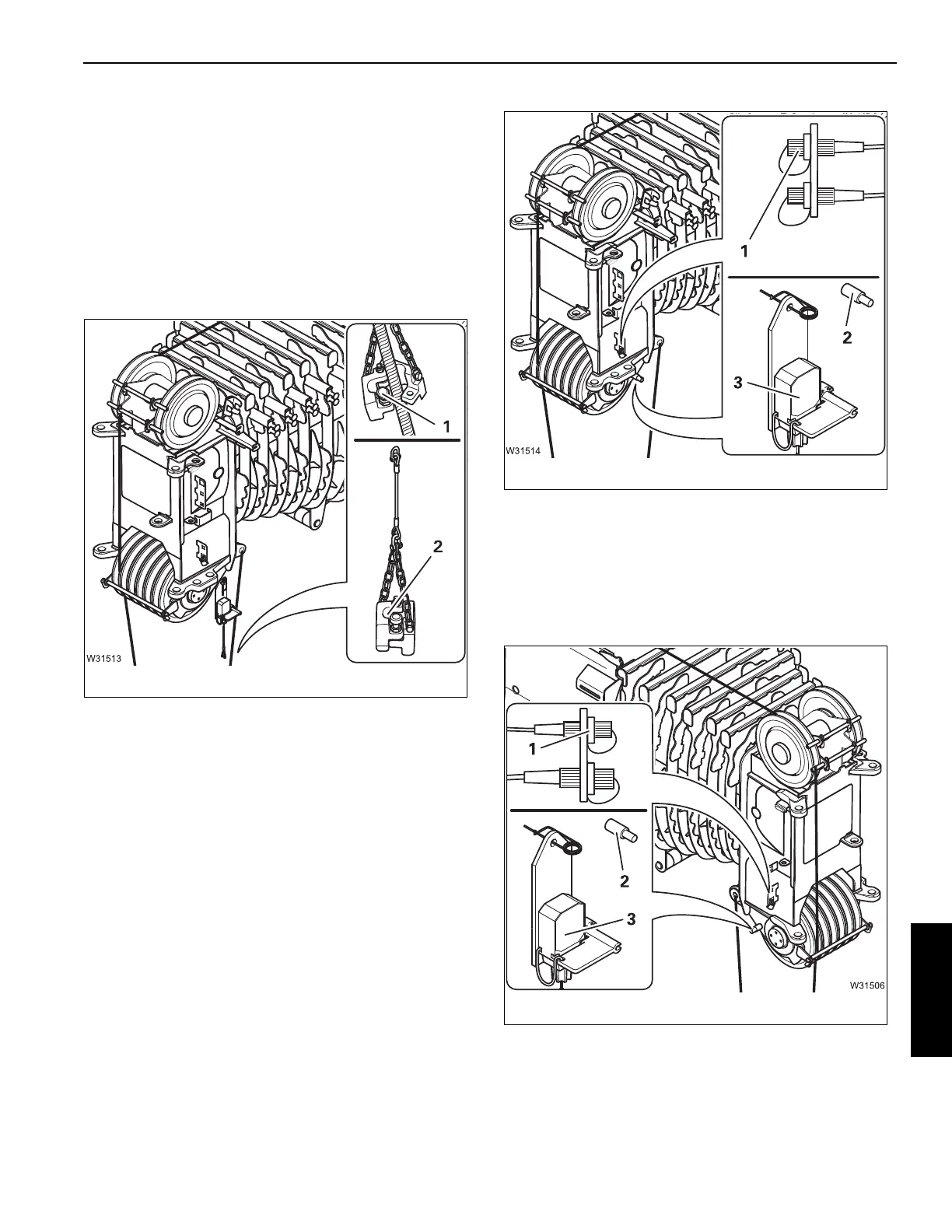

FIGURE 6-62
8851-39
FIGURE 6-63
8851-40
FIGURE 6-64
8851-41
