18.3.4 Lithium-ion battery pack – charging
The battery packs and the charger both have LEDs to indicate charging status.
Full charge will take between 2-3 hours for a full charge, depending on ambient temperature.
A 30 minute charge should provide approximately half a day charge.
Temperatures above 30°C (85°F) will slow the charging process as heat is not so easily dissipated from the batteries.
The temperature limit for charging the Li-ION battery is 40°C (104°F). Above 40°C the charger will stop and the
battery pack will show a RED warning LED.

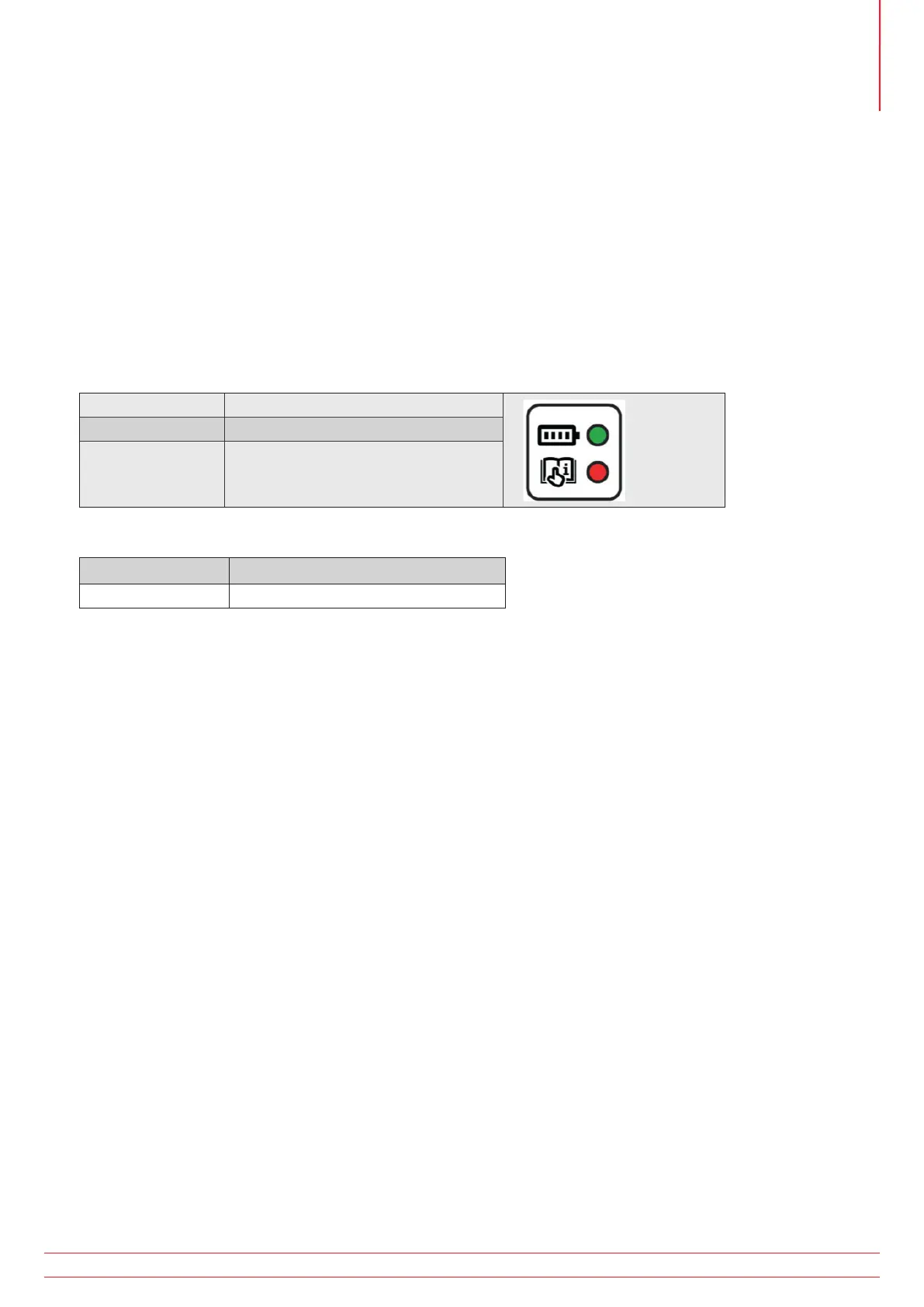

Li-ION battery pack charging status indicators:
The LED status indicators on the Li-ION battery pack shows red or green:
No LED Battery pack is not charging
Green LED Battery pack is charging
Red LED Indicates the ambient temperature is
too high to charge the battery
The LED status indicators on the charger pack show:
Red Charging
Green Charged (in trickle mode charge)
NOTE : The green charging status indicator will stay illuminated when the battery is charged, indicating
that it still is connected to the charger.
The LED status indicators on the charger will turn green when the charging process is complete.
