10 - 12 VM600 networking manual MAVM600-NET/E
Edition 9 - February 2018
Configuring a VM600 system for operation as a PROFINET IO-Device
SETTING UP A PROFINET CONNECTION (CPUM SW VERSION 081 OR LATER)
2- In the Station Window, right-click and click Insert Object. Then click SIMATIC 300,
RACK-300 and Rail in the dialog boxes that appear.
A Rail object will be added to the project (in the Station window) with a default name of
(0)UR.
3- In the Hardware Catalog window, type the version of your CPU (controller) in the Find
box, for example, 315-2EH13-0AB0 and press the ENTER key.

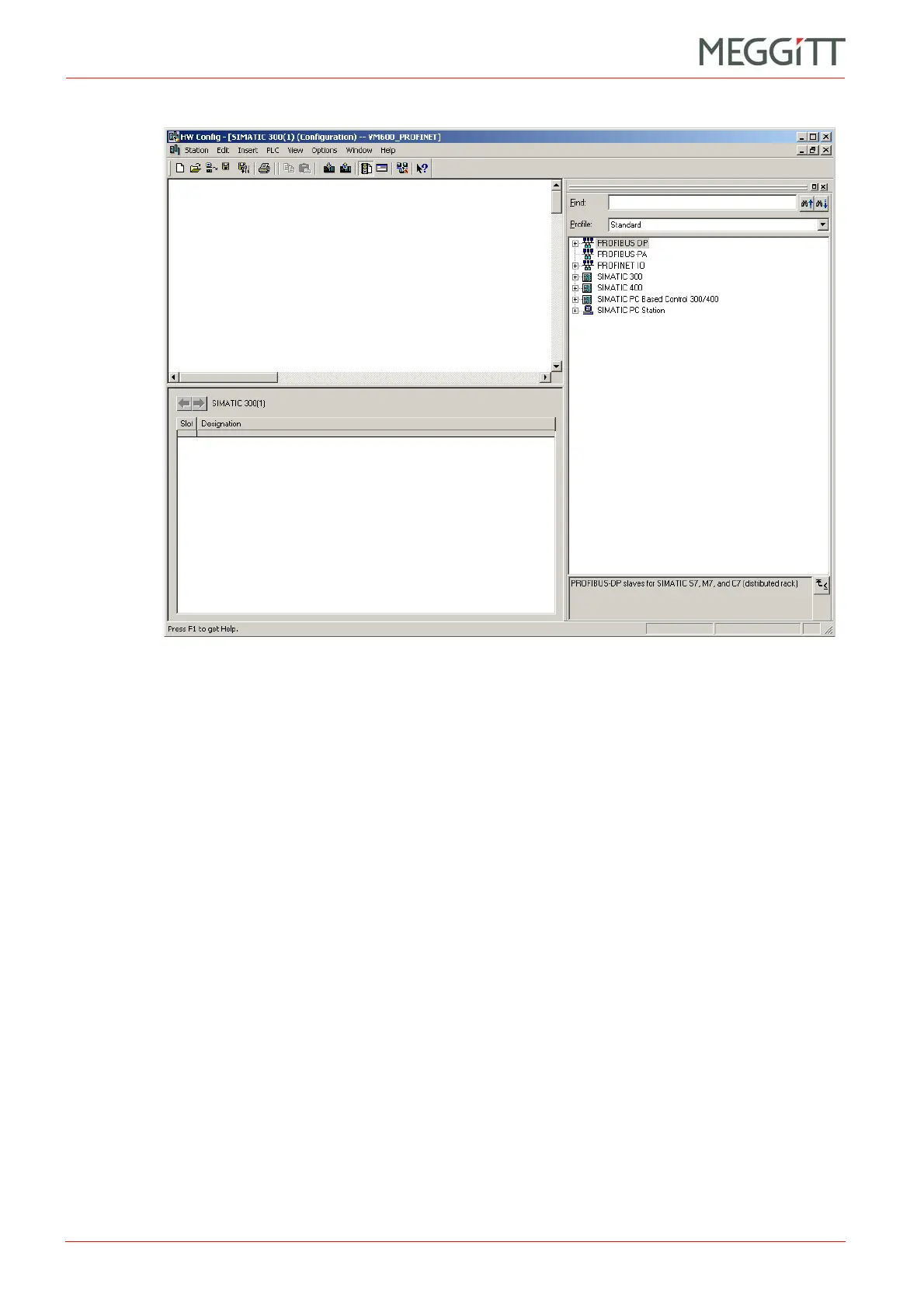

Figure 10-9: HW Config – with unconfigured objects (the Station window is empty)
