Configuring a VM600 system for operation as a PROFINET IO-Device
SETTING UP A PROFINET CONNECTION (CPUM SW VERSION 081 OR LATER)
The SIMATIC software will search for and then list all the available firmware versions for
your CPU.
4- To associate the appropriate version of CPU firmware with your project, do one of the
following:
Double-click on the appropriate version of the firmware
Or drag the appropriate version of the firmware to the second Slot of the rail.
5- The Properties – Ethernet interface PN-IO dialog box appears.
Enter the networking information appropriate to the Ethernet network in use. As an
example, for the private local network defined in Figure 10-7, the following information
could be appropriate:
10.10.52.62 for the IP address
255.255.255.0 for the Subnet mask
And Do not use router was selected.
Then select Ethernet(1) in the Subnet area and click OK.
A PROFINET IO system is added to the Rail object (in the Station window).

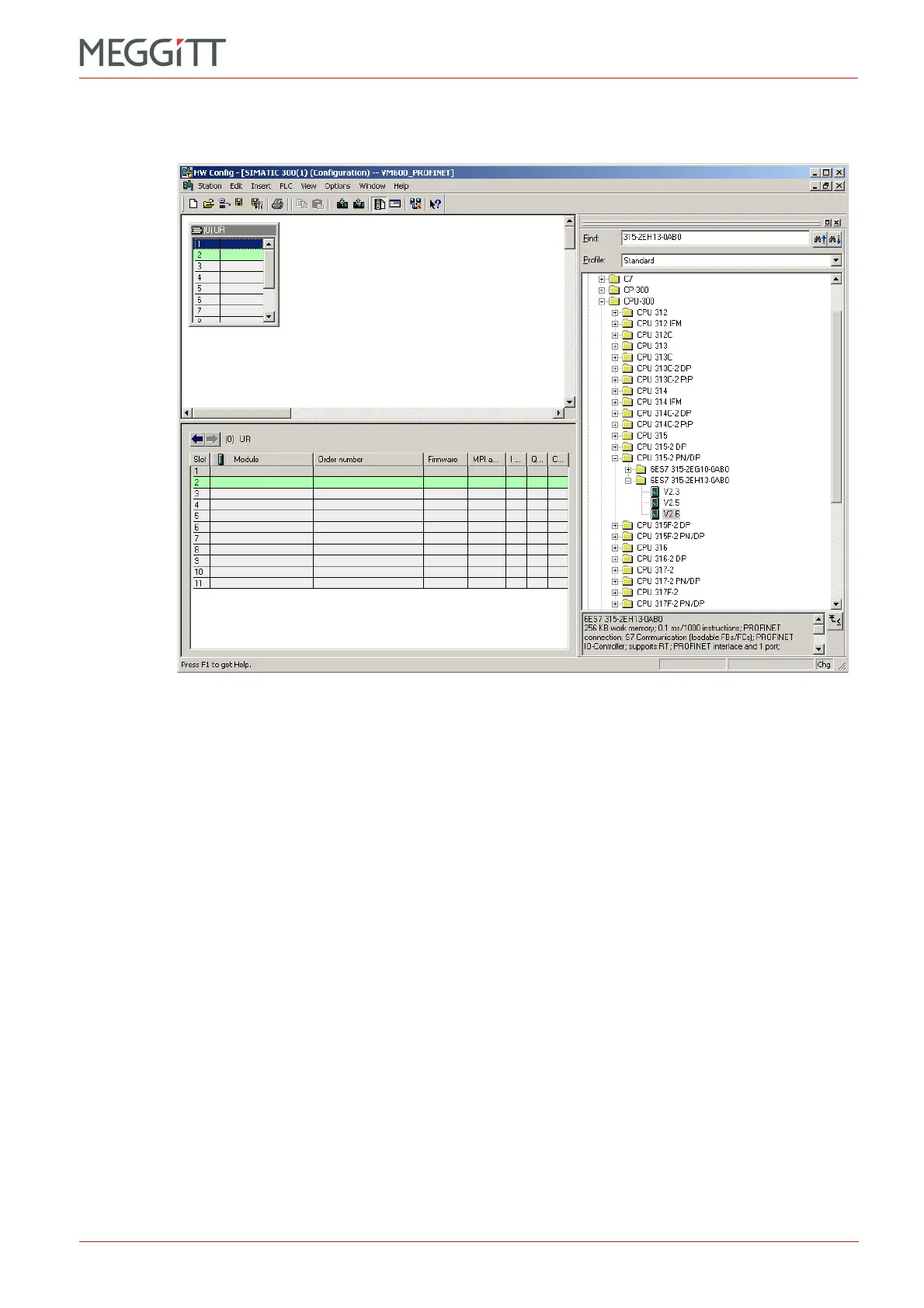

Figure 10-10: HW Config – the Hardware Catalog window displaying the available
CPU firmware
