VM600 networking manual MAVM600-NET/E 4 - 5
Edition 9 - February 2018
Configuring a computer for Ethernet communications with a VM600 rack
SETTING UP AN ETHERNET CONNECTION
2- Select the Internet Protocol Version 4 (TCP/IPv4) item, then click the Properties
button.
The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box should appear, as
shown in Figure 4-3.
3- On the General tab, select Use the following IP address, then enter the following
information for this network interface of the computer:
Under IP address, enter the IP address in dot-decimal notation.
NOTE: Contact your IT department or network administrator to ensure that the static
IP address to be used is not already used elsewhere on the network.
Under Subnet mask, enter the subnet mask in dot-decimal notation.
Netmasks can be written in hexadecimal or dot-decimal notation (for example,
0xFFFFFF80 or 255.255.255.128). The Windows Internet Protocol Version 4
(TCP/IPv4) Properties dialog box requires netmasks in dot-decimal.
Under Default gateway, enter the default gateway in dot-decimal notation, if applicable.
Click OK to close the Windows Internet Protocol Version 4 (TCP/IPv4) Properties dialog
box, then click Close to close the Windows Local Area Connections dialog box apply and
apply the IP address settings to the network adapter.

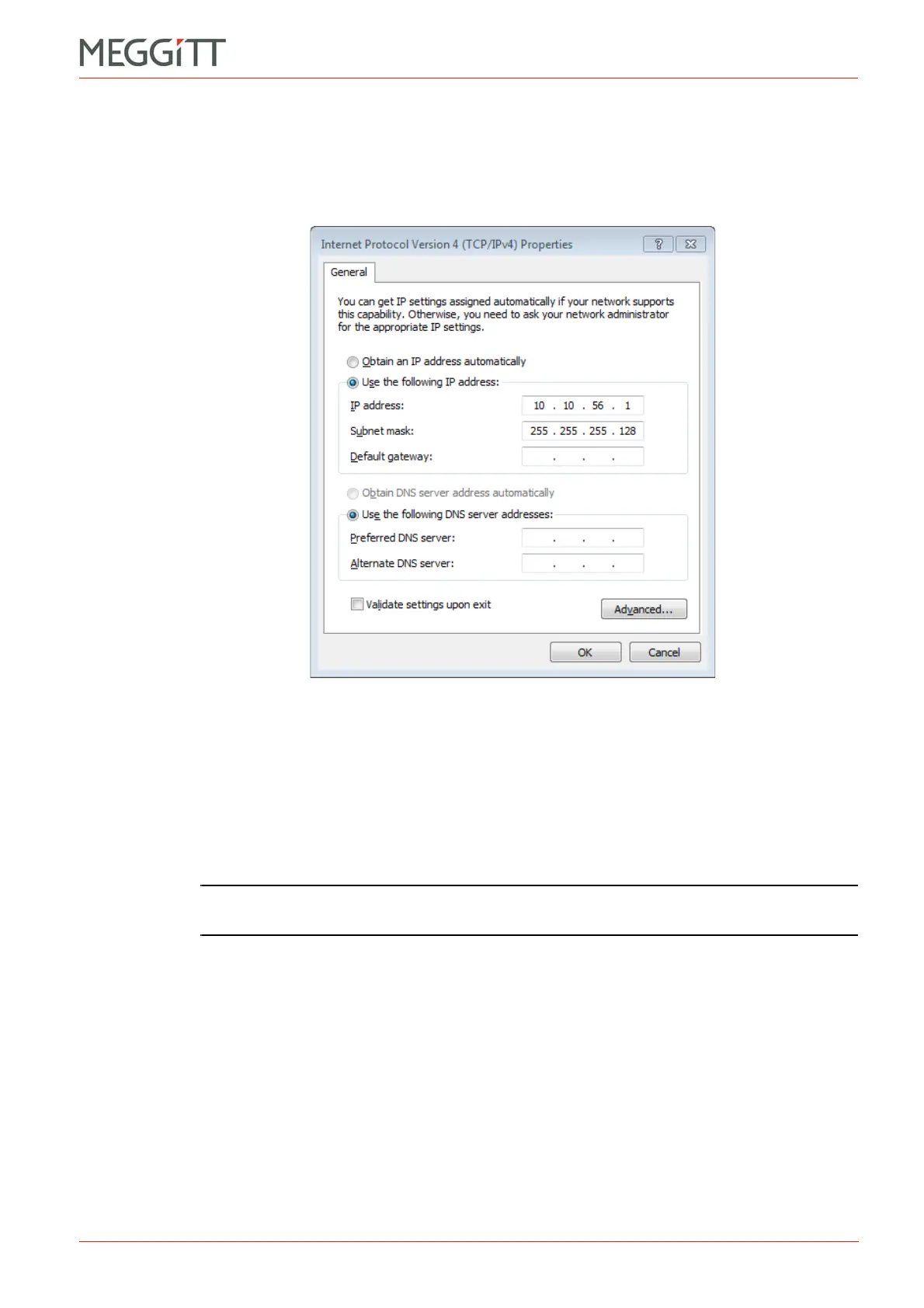

Figure 4-3: Windows Internet Protocol Version 4 (TCP/IPv4) Properties dialog box
