Meggitt VM600 User Manual

VM600 networking manual MAVM600-NET/E 5 - 5
Edition 9 - February 2018
Using an Ethernet connection to identify the firmware version of a CPUM card
ETHERNET COMMUNICATIONS WITH A VM600 RACK
For information on establishing a serial connection to a CPUM card, see 3.2 Establishing
serial communications with a CPUM card.
For information on establishing an Ethernet connection to a CPUM card, see below.
1- Connect a VM600 rack (CPUM card) and a computer using the appropriate Ethernet
cable.
2- Start PuTTY, select a Telnet connection and enter the IP address (Host Name (or IP
address)) of the CPUM card, as shown in Figure 5-3. (Telnet always uses TCP port
number 23 (Port).)

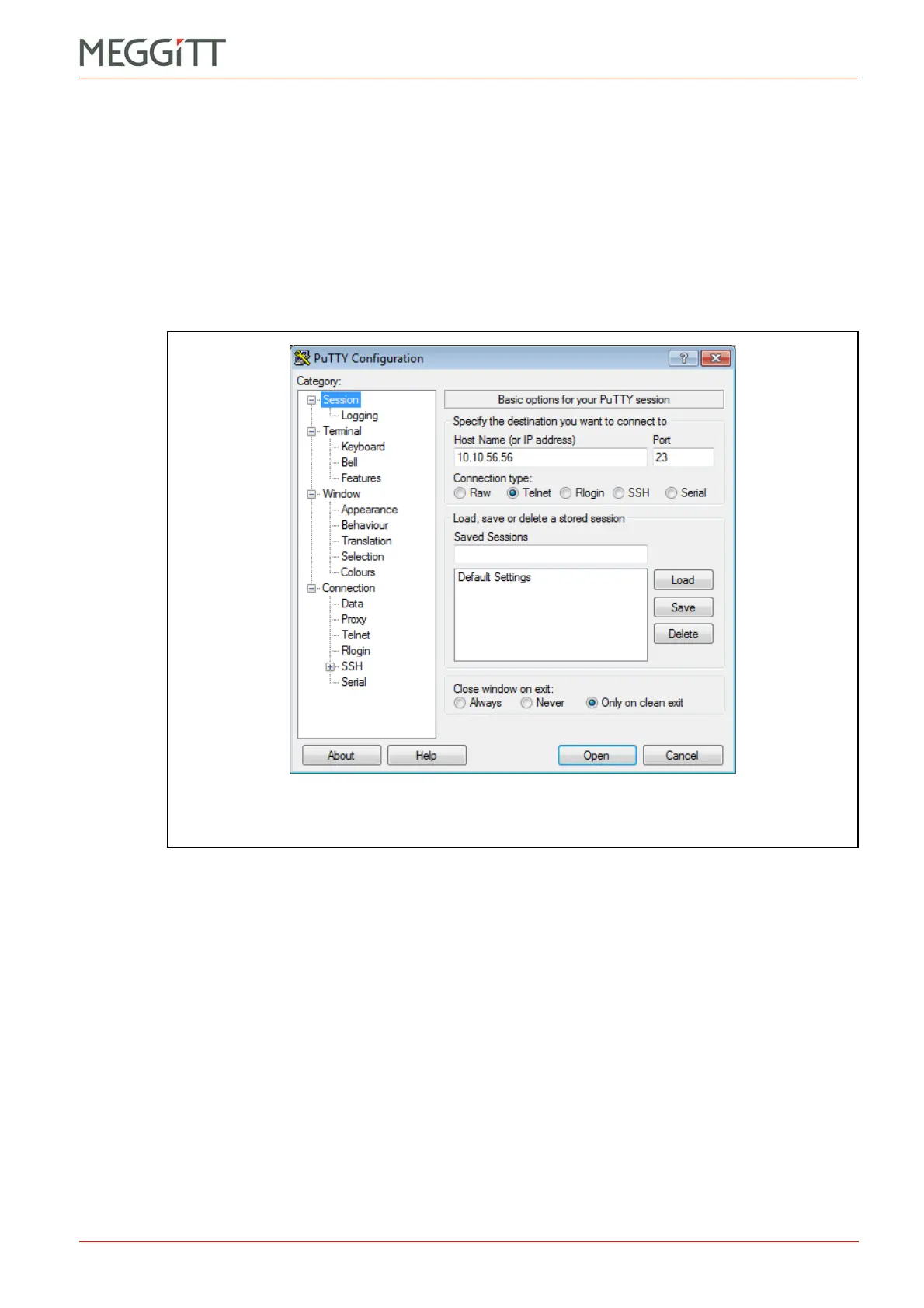

Figure 5-3: Using PuTTY terminal emulation software –
selecting and configuring a Telnet connection
