WARNING
When the Skyhook is engaged, the boat stays in a preset position; however, Skyhook can disengage unexpectedly. When
Skyhook disengages, the boat does not hold the preset position and may drift, causing the potential of damage or personal
injury. The helm operator must be able to take control of the boat when using Skyhook.

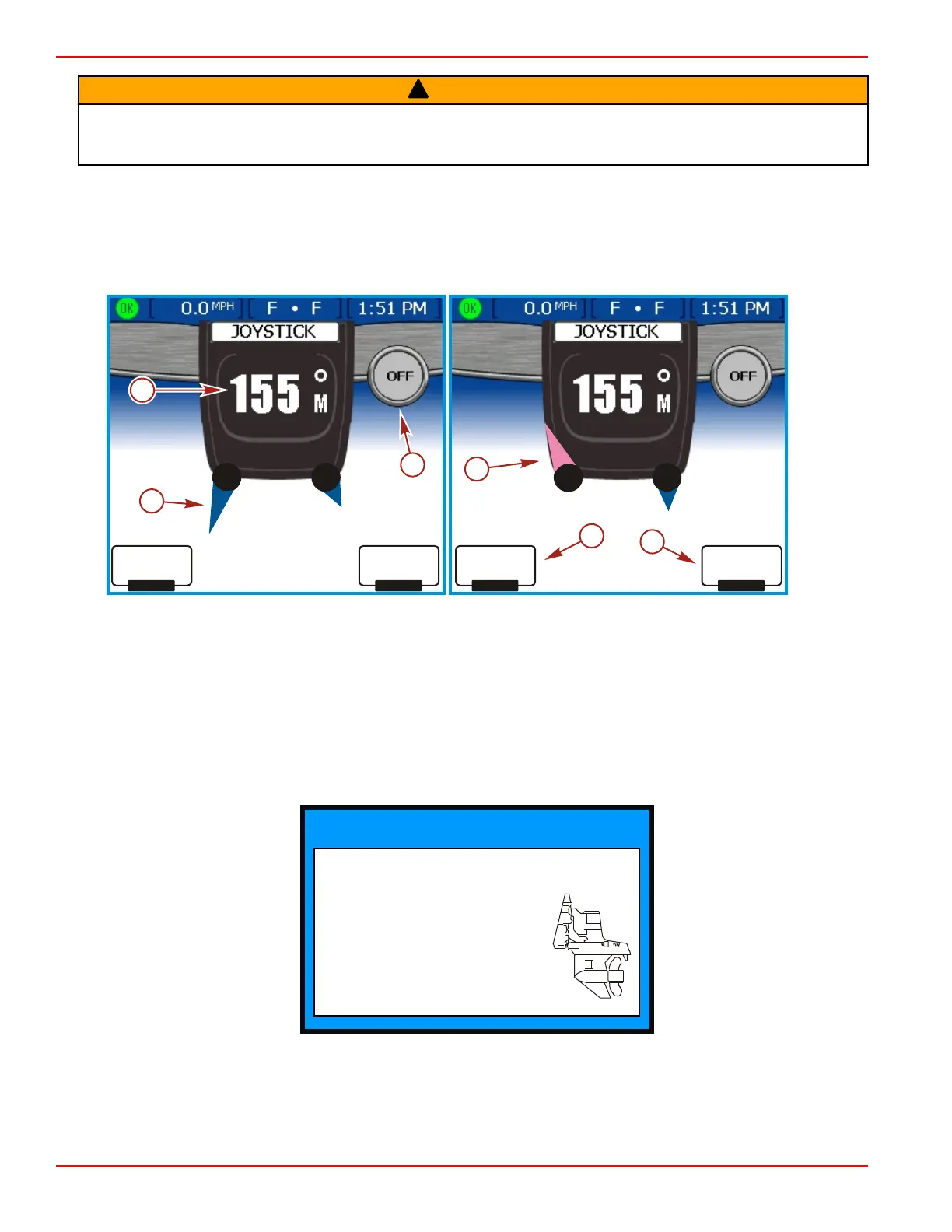

Joystick Screen
The "JOYSTICK" screen provides a visual representation of a drive direction, thrust, and a vessel compass heading and is only
available with Zeus and Axius power packages. Dual power package installations will show the arrows on the drives indicating
the direction of the thrust with blue for forward thrust and pink for reverse thrust. The length of the thrust color indicates the
amount of thrust that is applied. The icon color will change to green when the joystick is activated. Triple and quad power
package installations will display information similar to the "AUTOPILOT" screens for joystick operation.
Dual power package display only
a - Vessel compass heading
b - Forward thrust level
c - Icon indicator "OFF" or "ON"
d - Reverse thrust level
e - Port engine RPM
f - Starboard engine RPM
A "NOTICE" pop‑up screen may be seen for a few seconds after engaging joystick control. The information on the pop‑up
advises "Optimal Performance Occurs When Drives Are Fully Trimmed Down" and to "Adjust Trim Position."
NOTICE
ADJUST TRIM POSITION
Optimal Performace
Occurs When Drives
Are Fully Trimmed Down
45156
a
b
c
d
37093
1580
RPM
1580
RPM
680
RPM
680
RPM
e
f
