Mercury VesselView User Manual

Section 1 - Getting Started
90-8M0070299 eng MAY 2012 Page 3

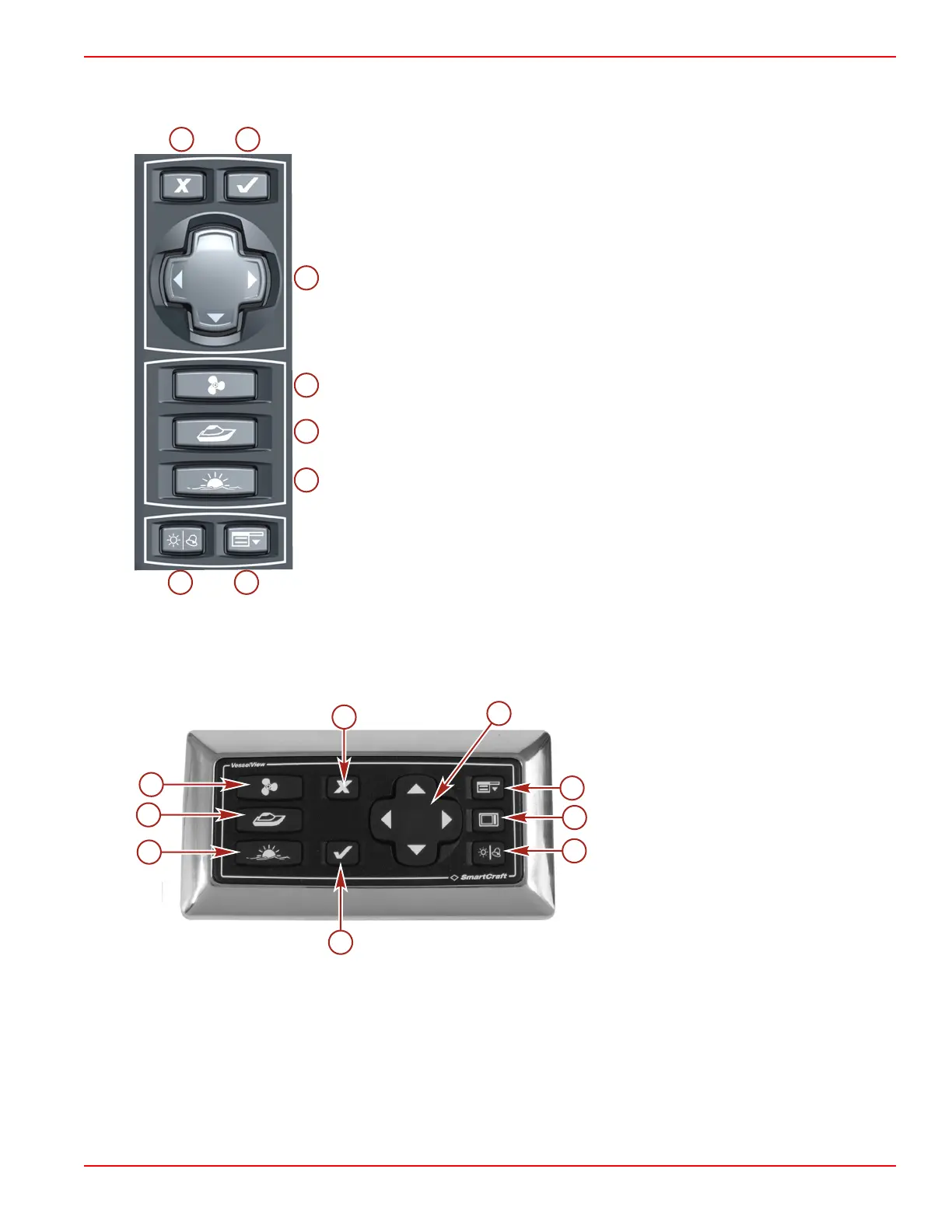

Keypad Functions
Mounted on the VesselView are seven buttons and an arrow pad for easy navigation through the screens and pages.
a -
"X" button
b - Check button
c - Arrow pad
d - Propulsion button
e - Vessel button
f - Environment and navigation button
g - Brightness and alarm button
h - Menu button
A dash‑mounted multifunction VesselView keypad is available as an accessory that offers the same eight buttons and an arrow
pad for easy navigation through the screens and pages. The dash‑mounted multifunction VesselView keypad has an additional
button that toggles the keypad control from one VesselView to the other. Two VesselViews must be installed for the keypad
transfer to function.
Horizontal installation
a - Environment and navigation button
b - Vessel button
c - Propulsion button
d -
"X" button
e - Arrow pad
f - Menu button
g - Keypad transfer button
h - Brightness and alarm button
i - Check button
"X" Button
• Enables a full shut down of VesselView when held down while the engine key switch is turned off.
• Deactivates or cancels the highlighted selection.
• Performs other functions as described in the on‑screen prompts.
• Closes the menu panel.
Check Button
• Activates or confirms the highlighted selection.
a
b
c
d
e
f
g
h
25354
a
b
c
d
e
f
g
h
i
32413

Mercury VesselView Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Supply	12V DC
Waterproof Rating	IPX7
Connectivity	NMEA 2000, Bluetooth
GPS	Yes
Alarms	Yes
Resolution	800 x 480 pixels
Mounting Type	Flush mount
Data Displayed	Engine data, fuel usage, GPS
