Section 6 - Vessel Menu
Page 88 90-8M0070299 eng MAY 2012
Using Vessel Screens
IMPORTANT: The available screens listed in the VesselView menu of each category is determined by the vessel setup, engine
type, if screens have been manually turned on or off, and other components connected to the communication network. For
example: VesselView will not show tab information for a vessel without tabs. Different engine types (sterndrive versus an
outboard) will have different screens. Refer to Section 3 ‑ Available VesselView Display Screens for a list of the engine
types and their associated screens.
The vessel screens display information about vessel performance, speed, status of tanks, generator, heating, and air
conditioning. Screens available from the vessel menu vary according to the engine type.
Vessel
Perf & Fuel
Vessel Status
Speed
Tank Status
Generator
Steer Position
32632
Checking Vessel Status

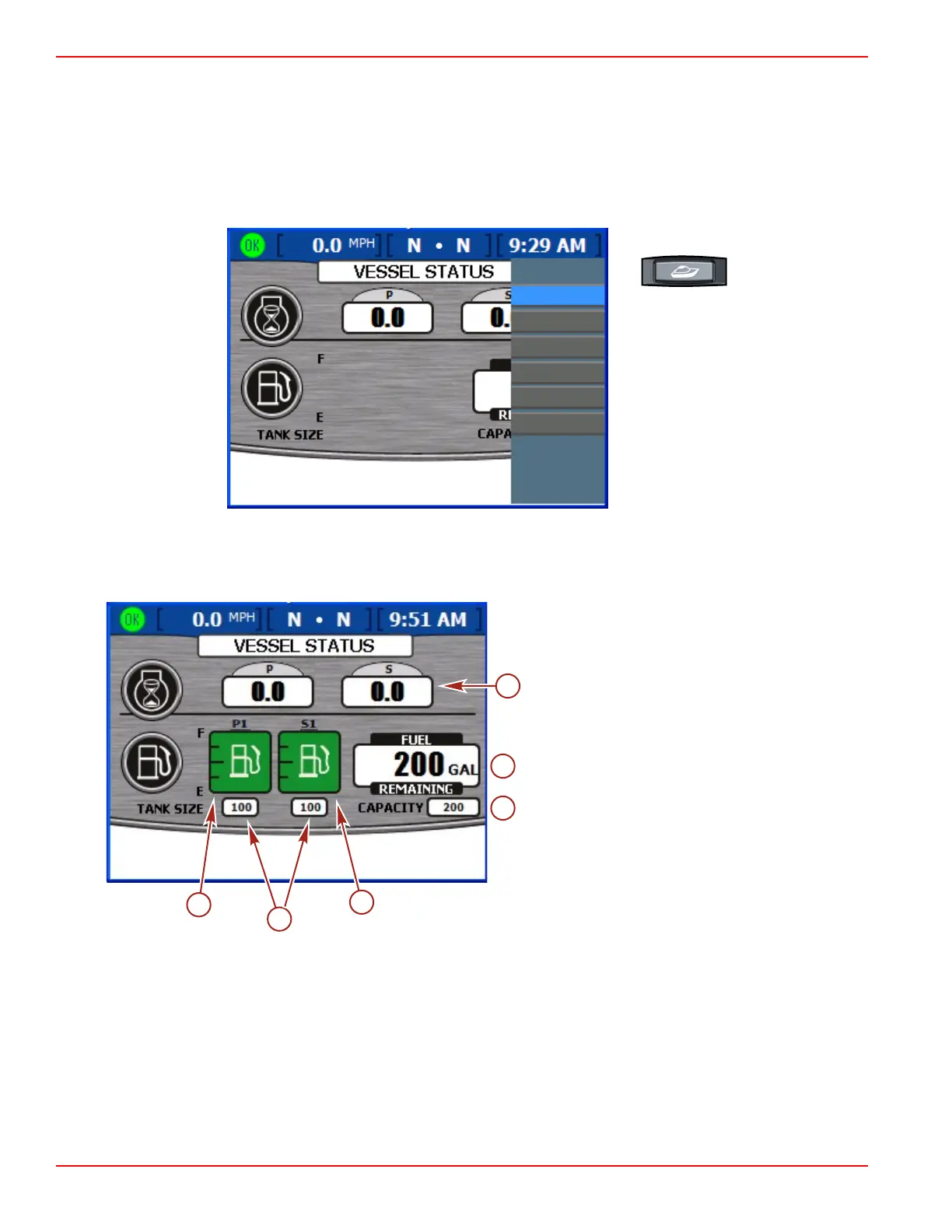

The "VESSEL STATUS" screen displays engine run time for up to three engines, as well as fuel information.
a - Engine run time
b - Fuel tank levels
c - Fuel tank size
d - Total fuel remaining
e - Total fuel capacity
• Engine run time is displayed in hours for up to three engines.
•
Fuel remaining is displayed in U.S. gallons by default. Refer to Section 4 ‑ Units 2 to change the units.
• Capacity shows the total fuel capacity of all available fuel tanks.
• The fuel remaining in each tank is displayed in the fuel tank gauge icon. The fuel tank color will change from green to red if
the tank is below the critical level.
To Next Page
