Section 5 - Propulsion Menu
90-8M0070299 eng MAY 2012 Page 79
NOTE: Zeus and Axius drive applications show the steering angle needle from the drive with the most angle.
a - RPM
b - Depth
c - Vessel speed
d - Steering angle
NOTE:
To invert the steering position, use the "INVERT STEERING" option on the "Preferences" screen in the "Settings"
menu.
• The steering position is displayed in degrees.
• Water depth and boat speed are displayed below the steering position by default. You can choose to display boat speed,
wind speed. wind direction, water depth, gear position, speed over ground ("SOG"), bearing to waypoint ("BTW").
Environment variables are only available for display on vessels equipped with these SmartCraft sensors.

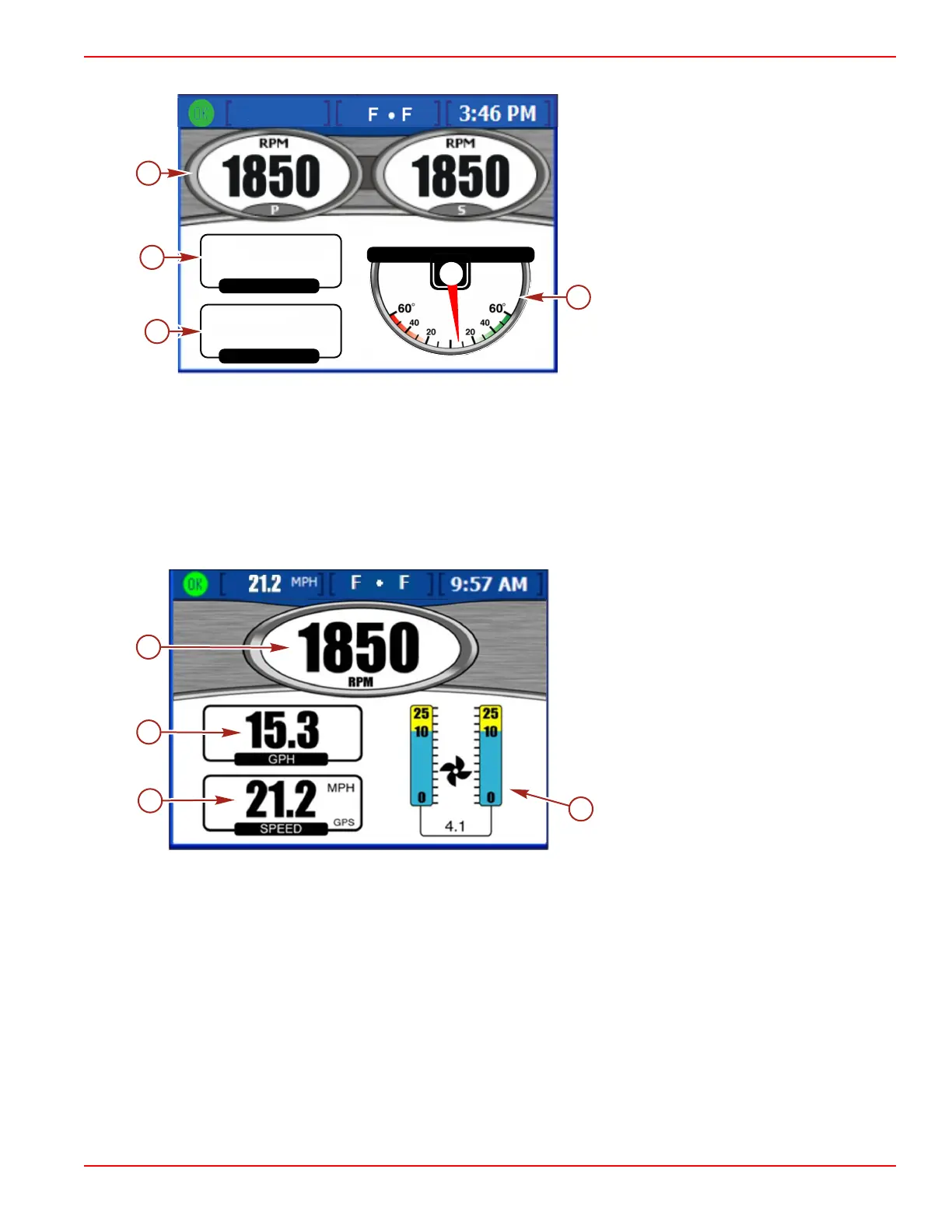

Viewing Trim Position
The trim screen shows current and peak operating information.
a - Engine RPM
b - Current trim level
c - Speed (GPS)
d - Fuel flow rate
• RPM is displayed for up to three gas engines or two diesel engines.
• The trim level is 0 when trimmed all the way down, 10 when trimmed to maximum safe operating position, and 25 when in
the trailer position. The propeller icon will move according to the position of the trim position.
