Section 1 - Getting Started
Page 2 90-8M0070299 eng MAY 2012
VesselView Specifications
Component Specification
Power/digital communications
2–24 pin VesselView female harness connectors
USB port
V1.1 or V2.0 (that is stated to be backwards compatible to V1.1)
IMPORTANT: VesselView unit will not recognize memory sticks that are only V2.0 compatible.
Ethernet port
For future option
VesselView unit dimensions
Module
180.5 mm x 112.0 mm
(7.1 in. x 4.4 in.)
Bezel
197.8 mm x 132.5 mm
(7.8 in. x 5.2 in.)
Net weight (without harness)
0.82 kg (1.8 lb)
Overview
IMPORTANT: This VesselView is compatible with products manufactured by Mercury Marine Outboards, Mercury Marine
MerCuiser, and Mercury Diesel. Some of the functions explained in this manual will be disabled depending on the power
package it is connected to.
VesselView is a comprehensive boat information center that can display information for up to three gasoline or diesel engines.
VesselView can also link gauge support for a fourth gasoline engine. It continuously monitors and reports basic operating data
including detailed information such as seawater temperature and depth, trim status, boat speed and steering angle, and the
status of fuel, oil, water, and waste tanks.
VesselView can be fully integrated with a vessel’s global positioning system (GPS) or other NMEA‑compatible device to provide
up to the minute navigation, speed, and fuel‑to‑destination information.
VesselView is equipped with a USB port that enables configuration settings to be saved to, or imported from, a USB memory
stick.

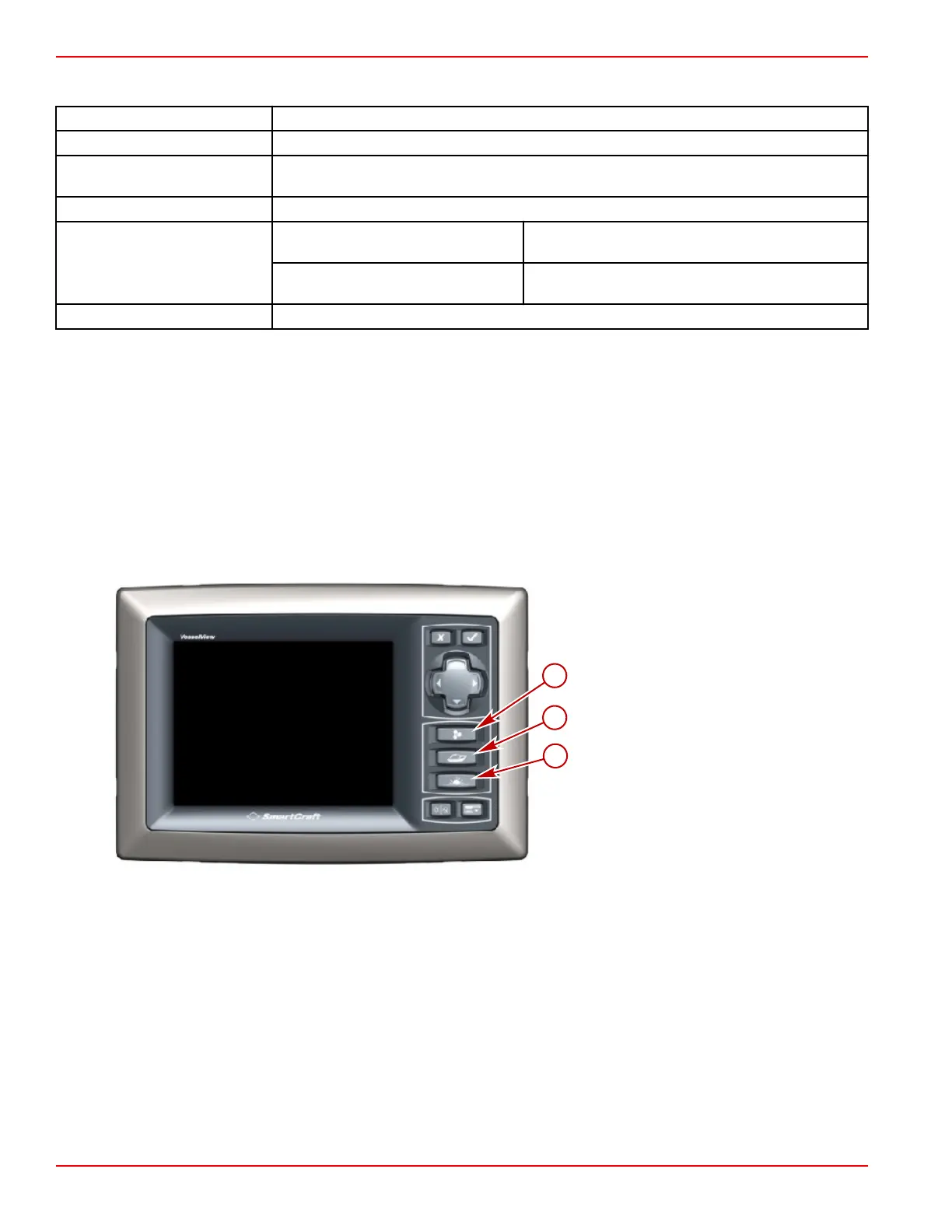

VesselView display screens are grouped
into three categories:
a -
Propulsion button enables you to
quickly access the propulsion screens
that are related to propulsion, trim, tabs,
and engine performance
b -
Vessel button enables you to quickly
access the vessel screens that are
related to fuel use, tank levels, and other
items such as generators
c -
Environment and Navigation button
enables you to quickly access the
environment and navigation screens that
are related to depth, navigation, and
GPS
